Sharp LC-40LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 17

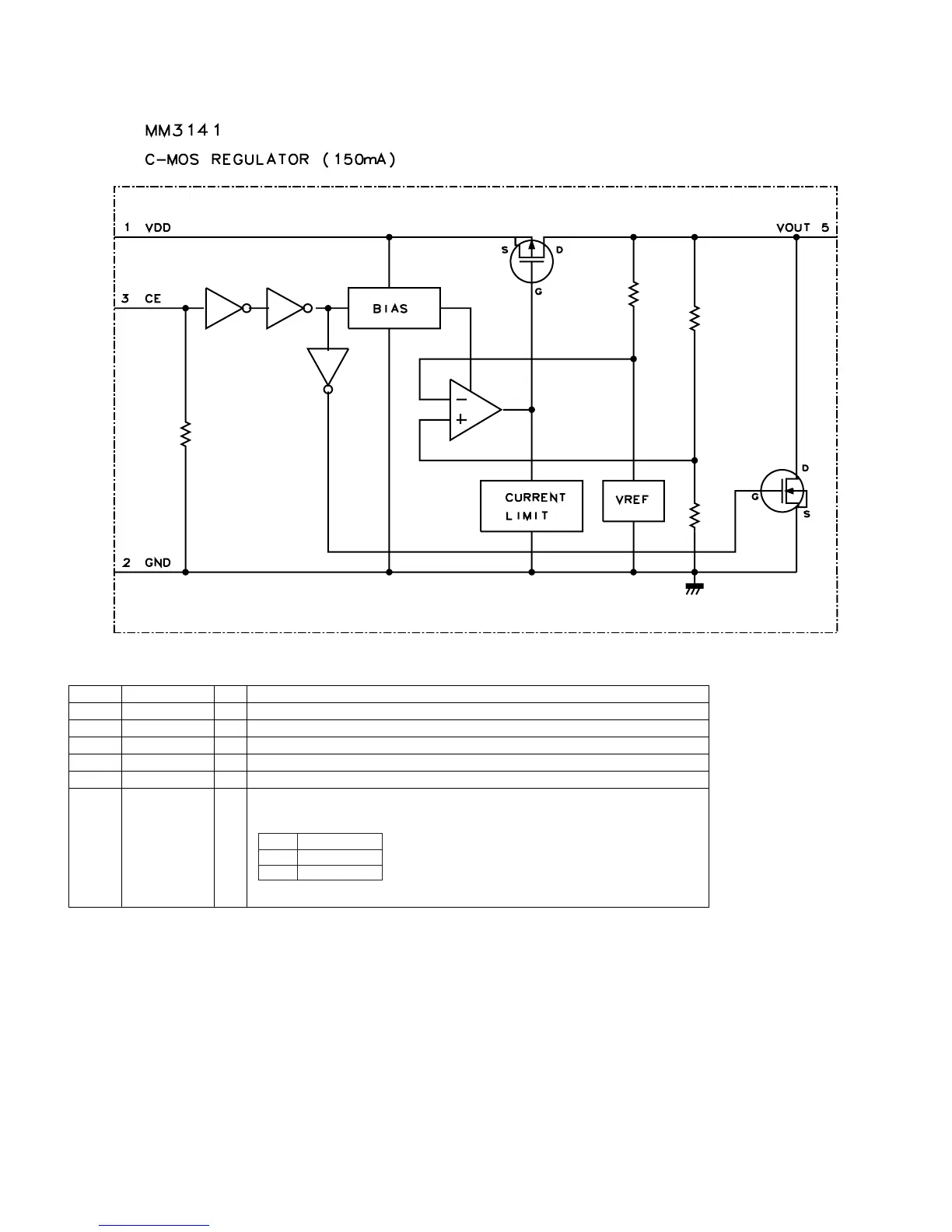

2.12. IC9603 (VHiMM3141YN-1Y)
2.12.1 Block Diagram
2.12.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 VDD - Voltage supply pin.
4 NC - No connection
5 Vout O Output pin
- NC - No connection
2 GND - Ground pin
3CEI
ON/OFF control pin
Connect CE pin with VDD pin, when it is not used.
㩷㩷㪚㪜㩷㩷㩷㩷㩷㩷㩷㪭㫆㫌㫋
㩷㩷㩷㪣㩷㩷㩷㩷㩷㩷㩷㩷㪦㪝㪝
㩷㩷㩷㪟㩷㩷㩷㩷㩷㩷㩷㩷㪦㪥

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
