Sharp LC-40LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 18

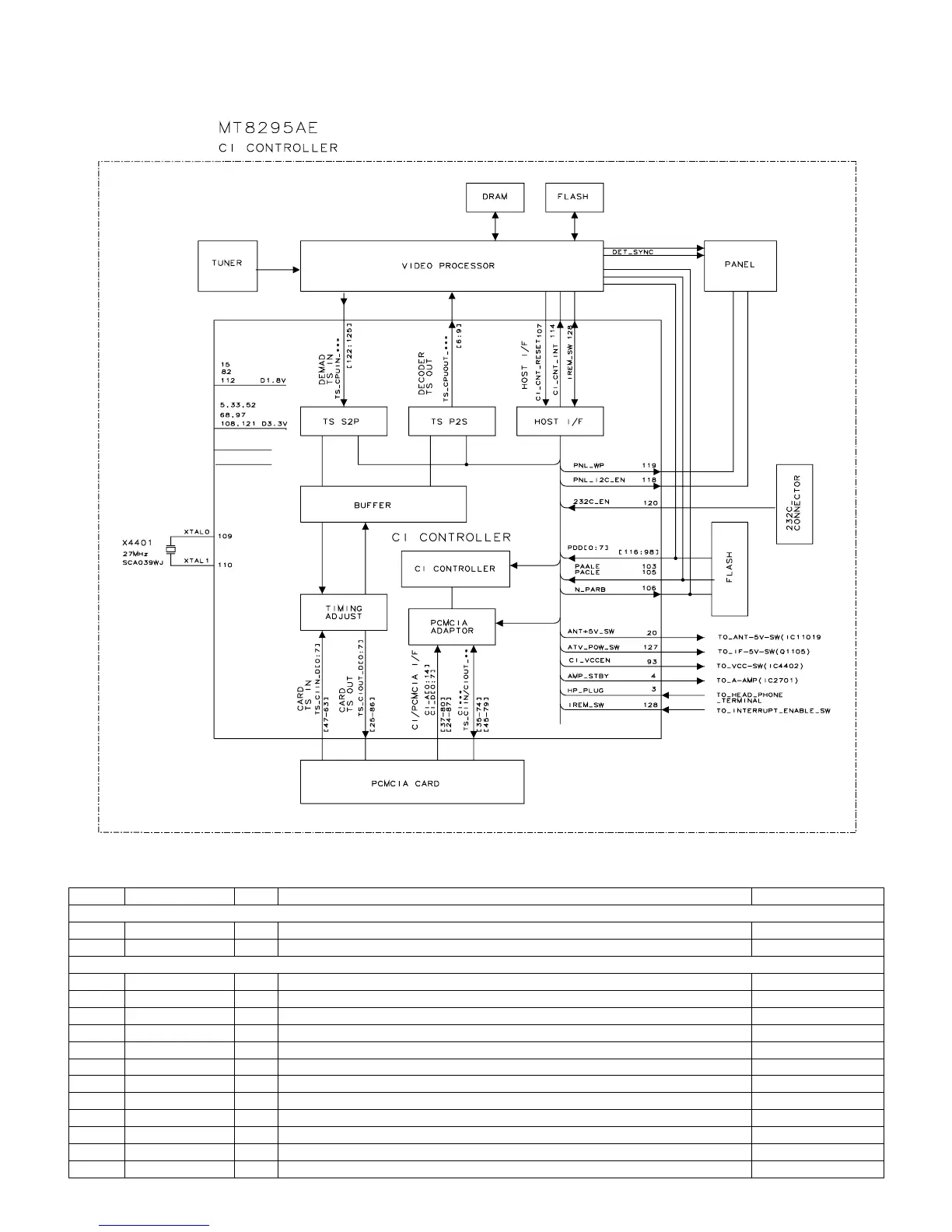

2.13. IC4405 (VHiMT8295AE-1Q)
2.13.1 Block Diagram
2.13.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function Sheet Name
Miscellaneous
107 RESETB I Chip reset. CI_CNT_RESET
114 CI_INT O interrupt. CI_CNT_INT
NAND flash
116 CI_DATA0 I/O NAND Flash Data bit 0. PDD0_
115 CI_DATA1 I/O NAND Flash Data bit 1. PDD1_
95 CI_DATA2 I/O NAND Flash Data bit 2. PDD2_
102 CI_DATA3 I/O NAND Flash Data bit 3. PDD3_
101 CI_DATA4 I/O NAND Flash Data bit 4. PDD4_
100 CI_DATA5 I/O NAND Flash Data bit 5. PDD5_
99 CI_DATA6 I/O NAND Flash Data bit 6. PDD6_
98 CI_DATA7 I/O NAND Flash Data bit 7. PDD7_
94 CI_CEB I NAND Flash Chip enable. CI_CE#
106 CI_RB O NAND Flash Ready. N_PARB_
96 CI_WEB I NAND Flash Write enable. XEWE_
103 CI_ALE I NAND Flash Address Latch enable. PAALE_

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
