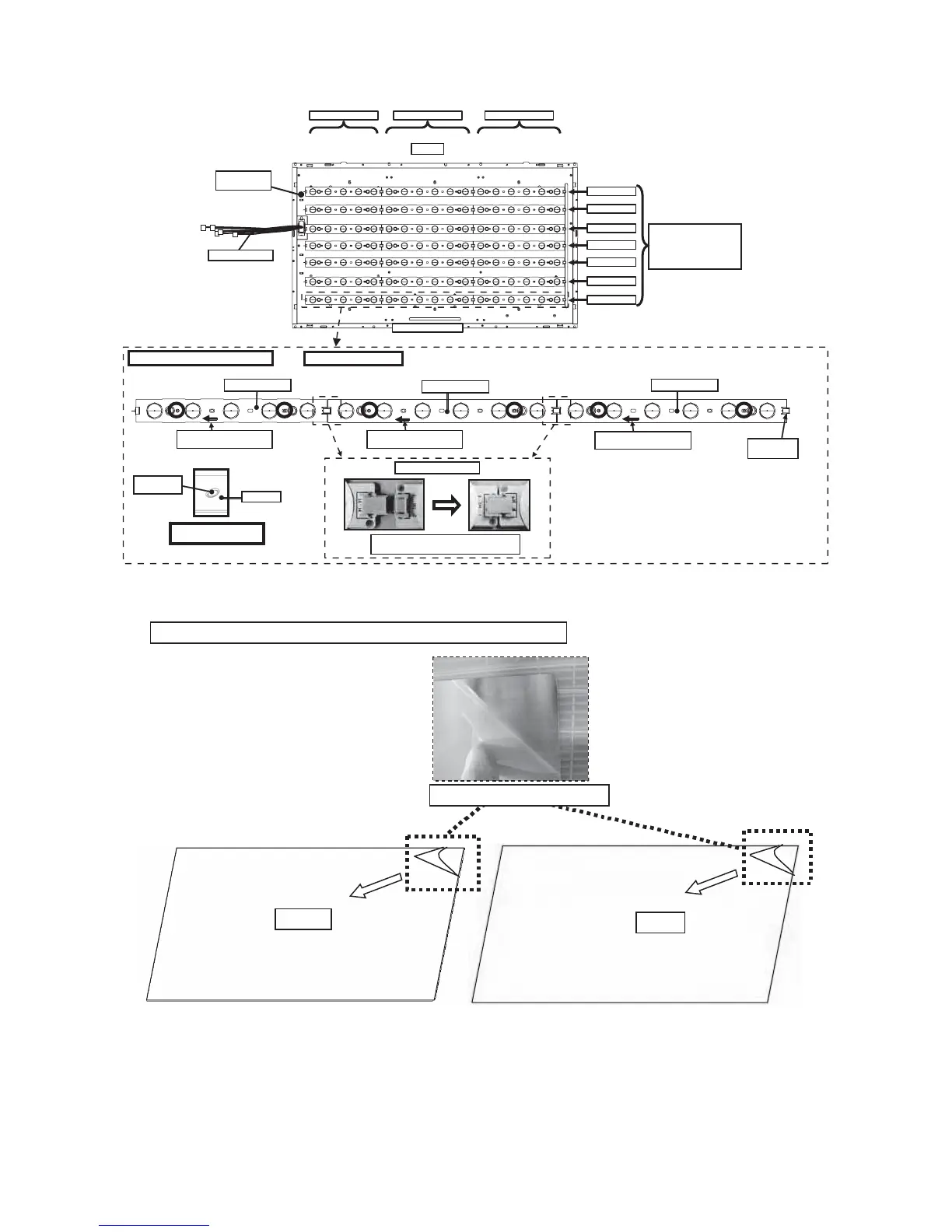

2. Handling notes (LC-40LE700UN(A)).
 6HWDQGFRQQHFW/('3:%V
 3HHORIIWKHODPLQDWLRQILOPRI/(166+((7RQWKHERWKVLGHV
*Same for other lines.
Connect LED-PWBs
Set and connect LED-PWBs
Boss fitting
(showing in blue circles)
RUNTKA655WJ**
RUNTKA656WJ**
RUNTKA656WJ**
LED-PWB
Boss of
BL-CHASSIS
TERMINATOR
is Attached
LED-PWB set direction
(arrow mark to harness side)
LED-PWB set direction
(arrow mark to harness side)
LED-PWB set direction
(arrow mark to harness side)
Insert the connector horizontally mutually.
Do not add impossible power.
RUNTKA***WJ01
Bottom Side (C-PWB side)
RUNTKA655WJ01 / WJ02
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
Top Side
㧨CAUTION㧪
RUNTKA***WJ01
and RUNTKA***WJ02.
It being alternated
RUNTKA656WJ01 / WJ02 RUNTKA656WJ01 / WJ02
BL-CHASSIS
INSIDE of
WIRE HARNESS
FRONT
BACK
Peel off the lamination film of LENS SHEET on the both sides.
Peel off the lamination film.
