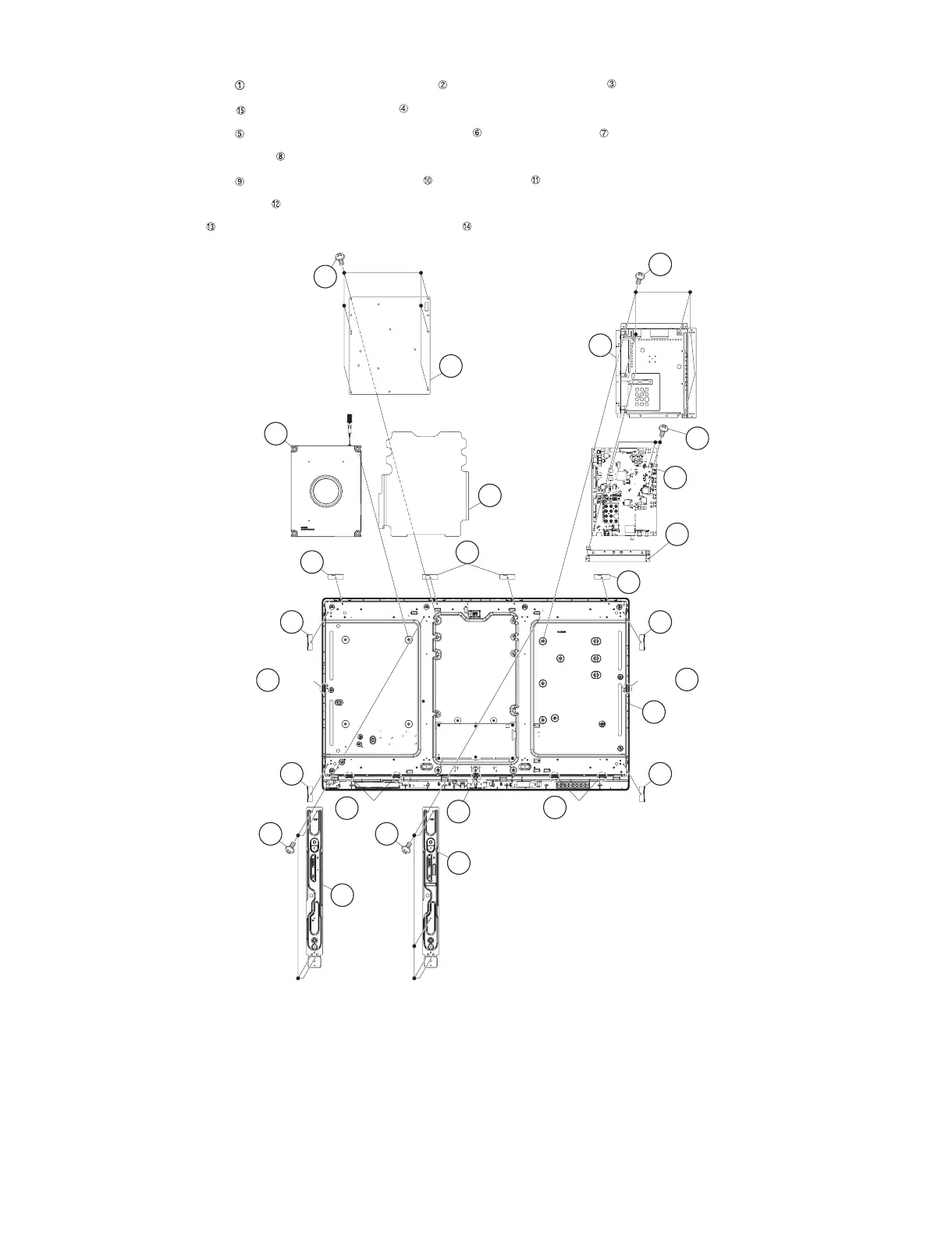

4. Removing of MAIN Unit, POWER/LED Drive Unit, Speaker (Sub Woofer), 40” LCD Panel Module Unit.
1. Remove the 5 lock screws and detach the Main PWB Shield and Terminal Angle Bottom .
2. Remove the 3 lock screws and detach the MAIN Unit .
3. Remove the 6 lock screws and detach the POWER/LED Drive Unit and Insulator Sheet .
4. Detach the Speaker (Sub Woofer) .
5. Remove the 9 lock screws and detach the Center Angle-L , Center Angle-R .
6. Detach the 8 Fixing Metal Angles .
7. Remove the 7 Hooks and detach the 40” LCD Panel Module Unit .
