Sharp LC-40LE832U

LC-40/46/52/60LE835U/830U/832U/LC-60LE831U
4 – 9

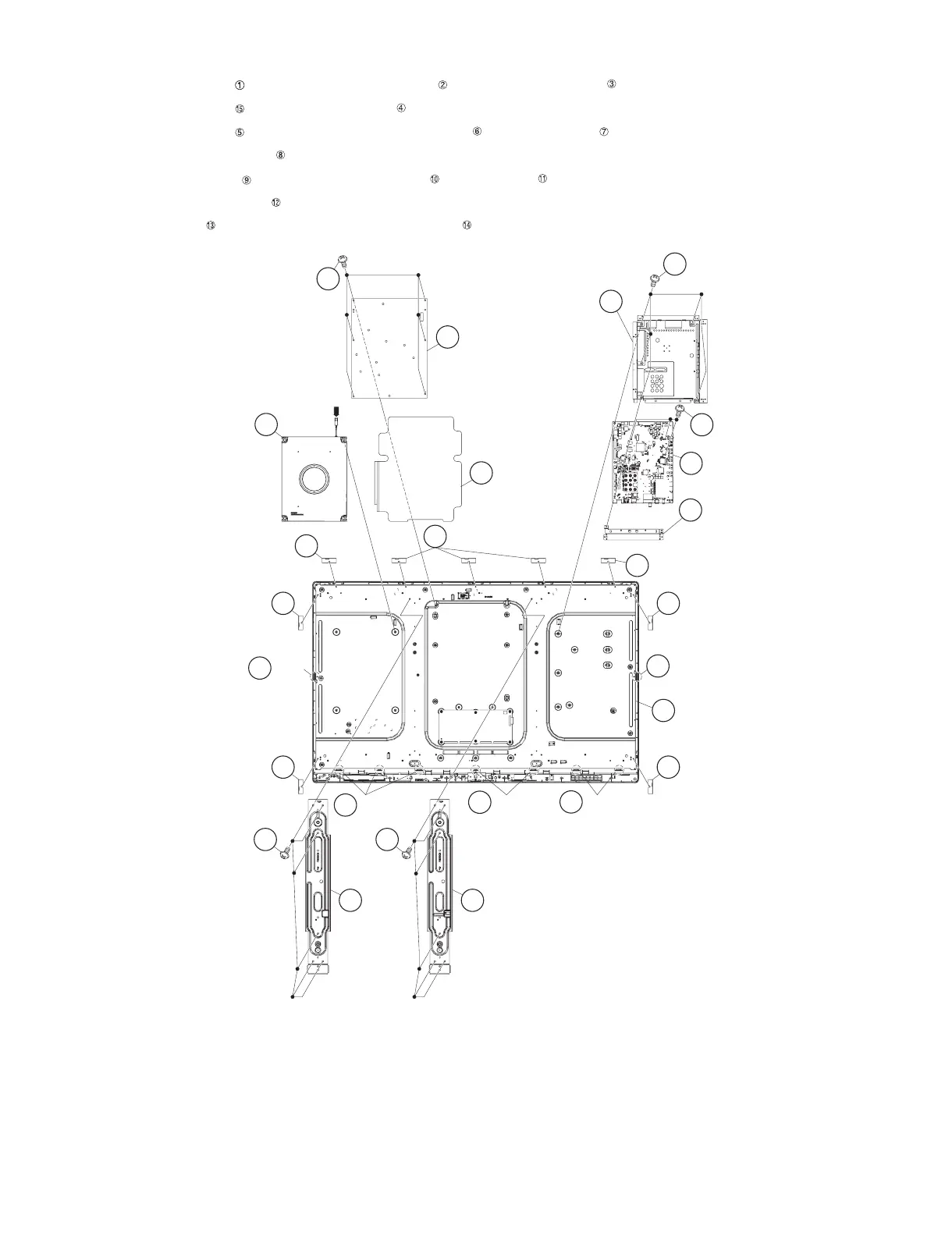

4. Removing of MAIN Unit, POWER/LED Drive Unit, Speaker (Sub Woofer), 46” LCD Panel Module Unit.
1. Remove the 5 lock screws and detach the Main PWB Shield and Terminal Angle Bottom .
2. Remove the 3 lock screws and detach the MAIN Unit .
3. Remove the 6 lock screws and detach the POWER/LED Drive Unit and Insulator Sheet .
4. Detach the Speaker (Sub Woofer) .
5. Remove the 12 lock screws and detach the Center Angle-L , Center Angle-R .
6. Detach the 9 Fixing Metal Angles .
7. Remove the 9 Hooks and detach the 46” LCD Panel Module Unit .
3 Terminal
Angle Bottom
7
Insulator Sheet
4 MAIN Unit
12Fixing Metal Angle
12Fixing Metal Angle 12 Fixing Metal Angle
12
13
13
13
13
13
Fixing Metal Angle
46" LCD Panel
Module Unit
14
12Fixing Metal Angle
12 Fixing Metal Angle
12 Fixing Metal Angle
8Speaker
(Sub Woofer)
[SB]
9 9
11 Center
Angle-R
10 Center
Angle-L
5
6
POWER/LED
Drive Unit
2
Main
PWB Shield
1
15
Hook
Hook Hook
Hook
Hook
