LC-40/46/52/60LE835U/830U/832U/LC-60LE831U
4 – 15
5. Removing of WiFi Unit, R/C, Operation Unit, ICON Unit, IR Emitter Unit (LC-52LE835U Only), Touch Sensor
Unit.
1. Detach the WiFi Unit .
2. Remove the 1 lock screw and detach the ICON Unit .
3. Detach the R/C, Operation Unit .
4. Detach the IR Emitter Unit (LC-52LE835U Only).
5. Detach the Touch Sensor Unit .
NOTE: The Touch Sensor unit reuse will be impossible, once it is stuck on front cabinet and exfoliates.

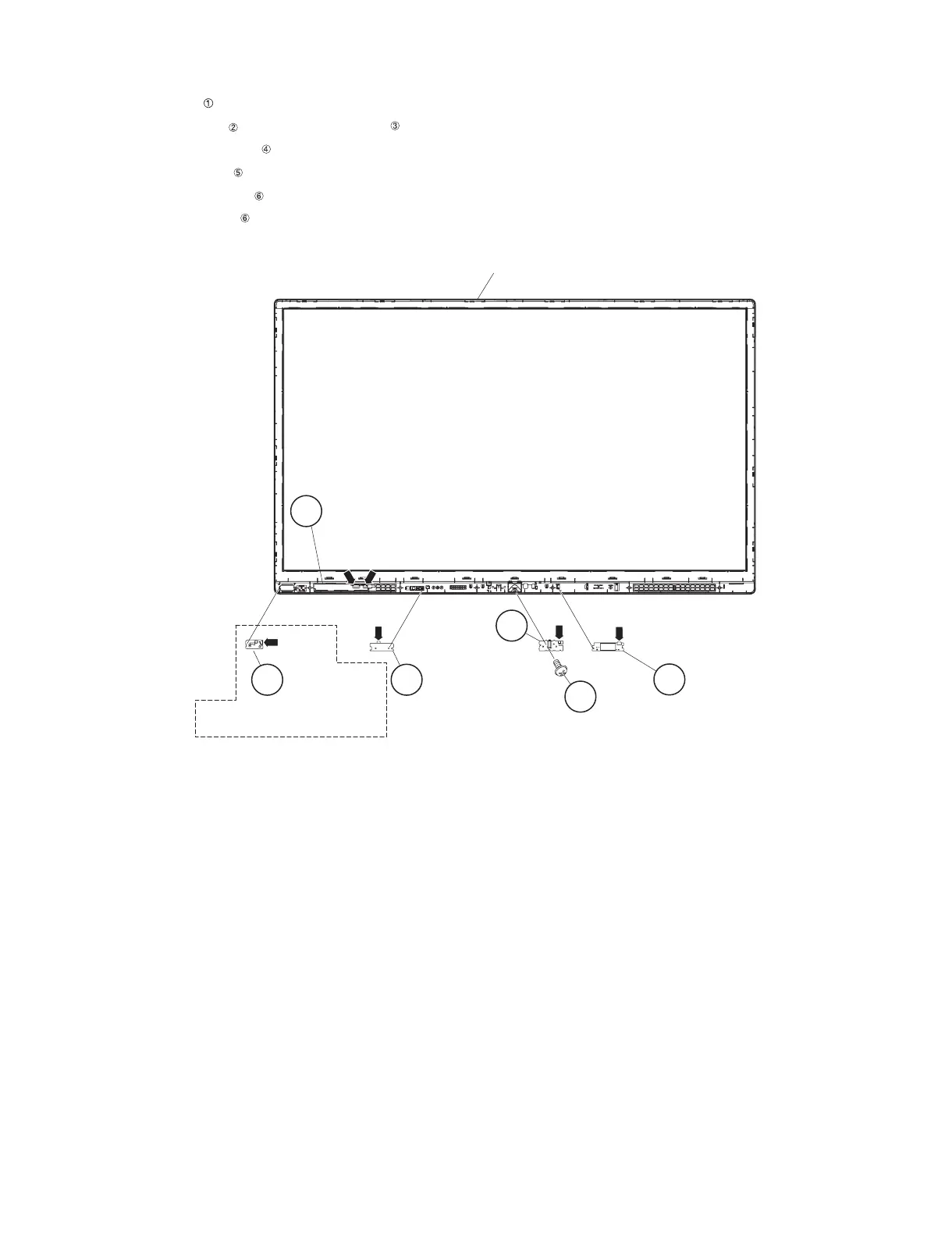

Front Cabinet Ass'y
[TK] [RA]
Touch Sensor Unit
[IR]
[RA]
[CI]
[UB]
2
3ICON
Unit
5
6
IR Emitter
Unit
4 R/C,
Operation
Unit
1 WiFi
Unit
(LC-52LE835U Only)
