Sharp LC-40Q3070U User Manual

7
STEP2.ConnectdevicestoyourTV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and color.

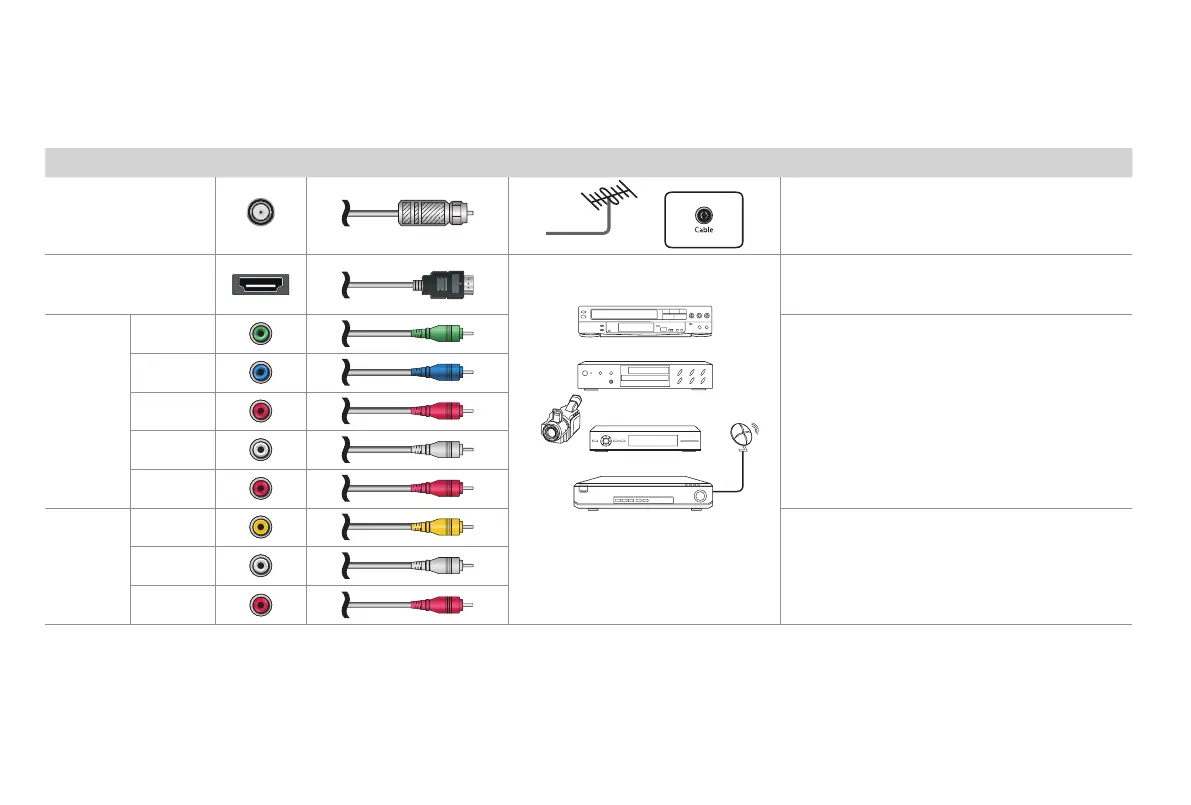

TV label Port Cable External Equipment Brief Description
ANT
CABLE IN
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
COMPO-
NENT IN
Y
Green
Connect a component video cable and left-right
audio cables from an external AV device.
P
B
Blue
P
R
Red
L
White
R
Red
AV IN
VIDEO
Yellow
Connect a composite video cable and left-right
audio cables from an external AV device.
L
White
R
Red
Connect a High Definition Multimedia Interface
(HDMI) cable from an external device.

Sharp LC-40Q3070U Specifications

General

Screen Type	led
Wall Mount	200mm x 200mm
Features	noise reduction
Tuner	digital
Screen Size	39.6 inches, 40 inches
Closed Captioning	yes
Motion Enhancement	motion rate 60
HDR	no
Built-In Speakers	yes
Speakers Output	14 watts
HDMI ARC Ports	yes
USB Ports	1
USB 2.0 Ports	1
Ethernet	no
RF Antenna	yes
Bluetooth	no
Headphones Output	yes
Digital Optical Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
Remote Control	standard
3D	no
Power Consumption	91 kilowatt hours
Depth with Stand	8.2 inches
Height with Stand	22.2 inches
Width with Stand	35.6 inches
Net Weight with Stand	15.9 pounds
Depth without Stand	3.4 inches
Height without Stand	20.6 inches
Net Weight without Stand	15.4 pounds
