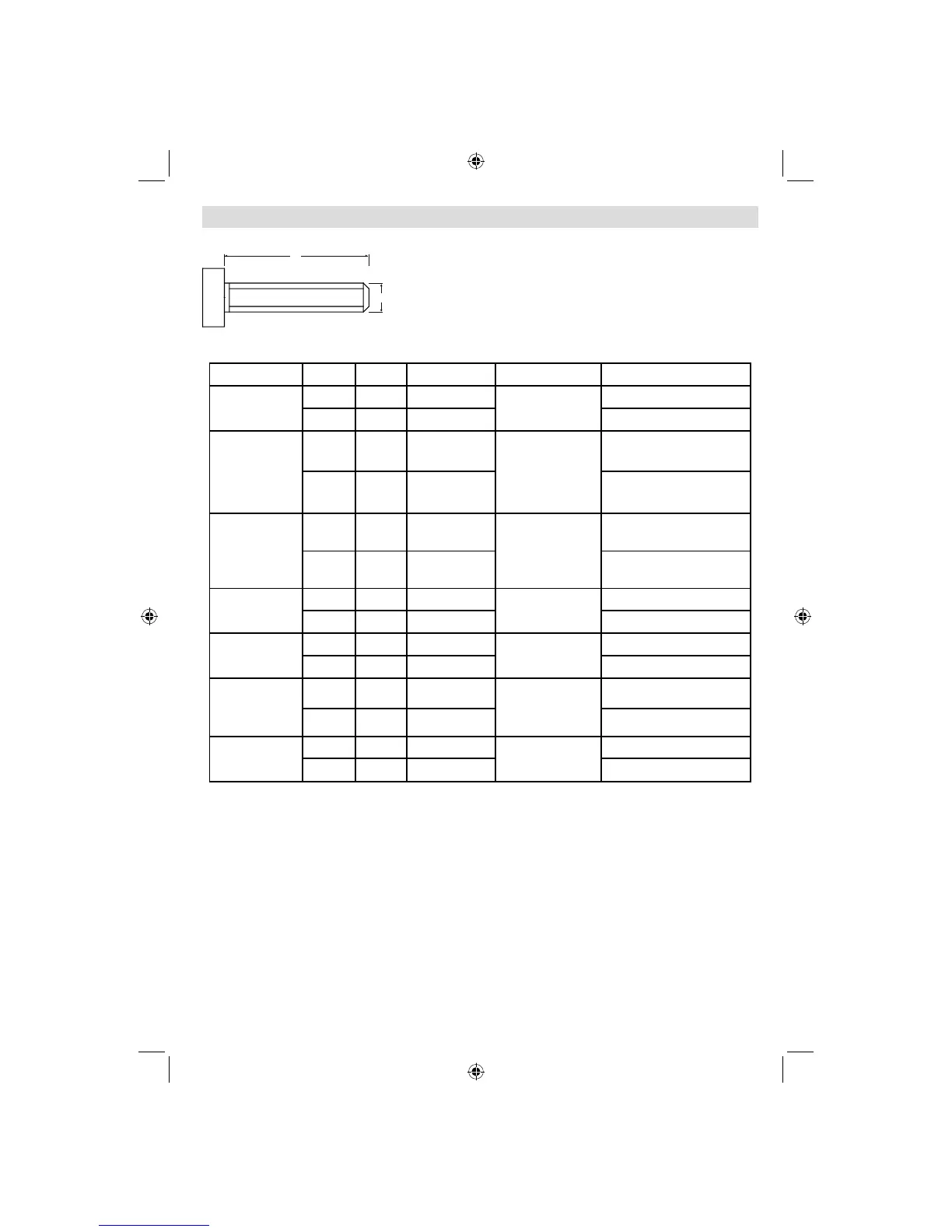

Screw Dimensions
L
D
Model D L Item Number VESA Installation of the Screw
LC-19LE510E
LC-19LE510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-22LE510E
LC-22LE510K
LC-22DV510E
LC-22DV510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-24LE510E
LC-24LE510K
LC-24DV510E
LC-24DV510K
Ø4 30 4
75 x 75 (W x H)
To the wall
M4 18 4 To the product
LC-32LE510E
LC-32LE530E
Ø4 30 8
200 x 100 (W x H)
To the wall
M4 18 4 To the product
LC-40LE510E
LC-40LE530E
Ø4 30 8
400 x 400 (W x H)
To the wall
M8 30 4 To the product
LC-32SH130E
LC-32SH130K
LC-32SH340E
Ø4 30 8
200 x 100 (W x H)
To the wall
M6 30 4 To the product
LC-40SH340E
LC-40SH340K
Ø4 30 8
400 x 400 (W x H)
To the wall
M6 30 4 To the product
