LC-40/46/52/60Z5T
1 – 2

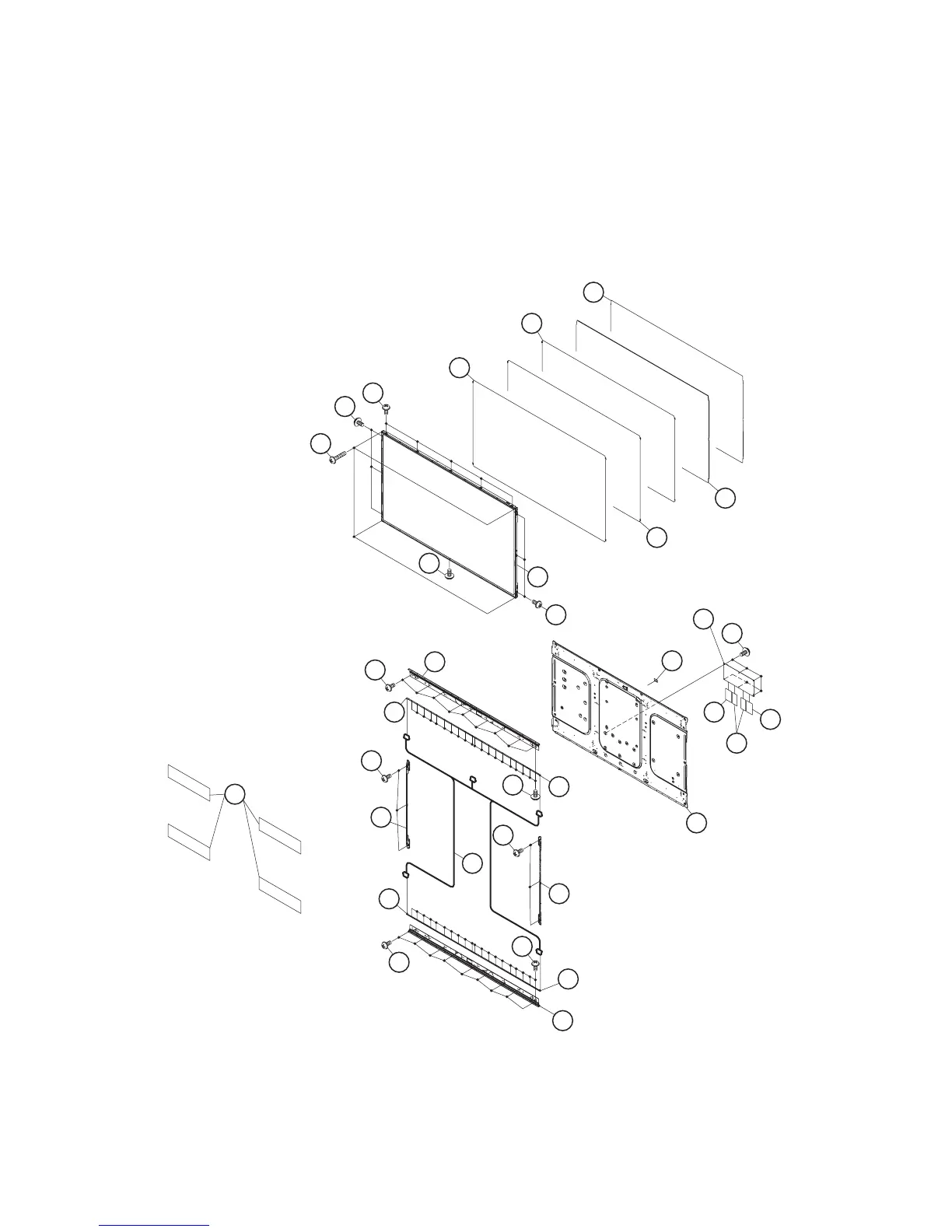

[2] LC-46Z5T
1. Remove the 4 lock screws [1], 12 lock screws [2] and detach the 46” LCD Panel HIRAK Unit [3].
2. Detach the DBEF Sheet [4], Lens Sheet [5], Micro Lens Sheet [6], Light Guide Plate [7], Reflection Sheet [8], 4 pieces Graphite Sheet [9].
3. Remove the 18 lock screws [10] and detach the 2 pieces LED Angle [11].
4. Remove the 40 lock screws [12] and detach the 4 pieces LED-PWB [13].
5. Remove the 6 lock screws [14] and detach the Holder Unit (L/R) [15].
6. Detach the LED Cable Cover (Cap) [16].
7. Disconnect the LED cable [17].
8. Remove the 6 lock screws [18] and disconnect the 2 pieces FFC (80Pin) [19], FFC (64Pin)[20] and detach the C-PWB [21] .
9. Detach the and Back Light Chassis Unit [22].
10
12
10
13
LED Angle
11 LED Angle
13
14
14
15 Holder Unit (L)
15
Holder Unit (R)
17
13
LED-PWB
LED-PWB
13
LED-PWB
LED-PWB
12
22
Back Light Chassis Unit
18
21
C-PWB
20
19
19
FFC
(64Pin)
FFC
(80Pin)
11
2
1
2
2
3
46" LCD Panel HIRAKI Unit
2
5
Light Guide Plate
7
Lens Sheet
4
Reflection Sheet
6Micro Lens Sheet
8
DBEF Sheet
FFC
(80Pin)
16
LED Cable Cover (Cap)
9
Graphite Sheet
To Next Page
