Step 4. Remove the Metal Frame and IR board.

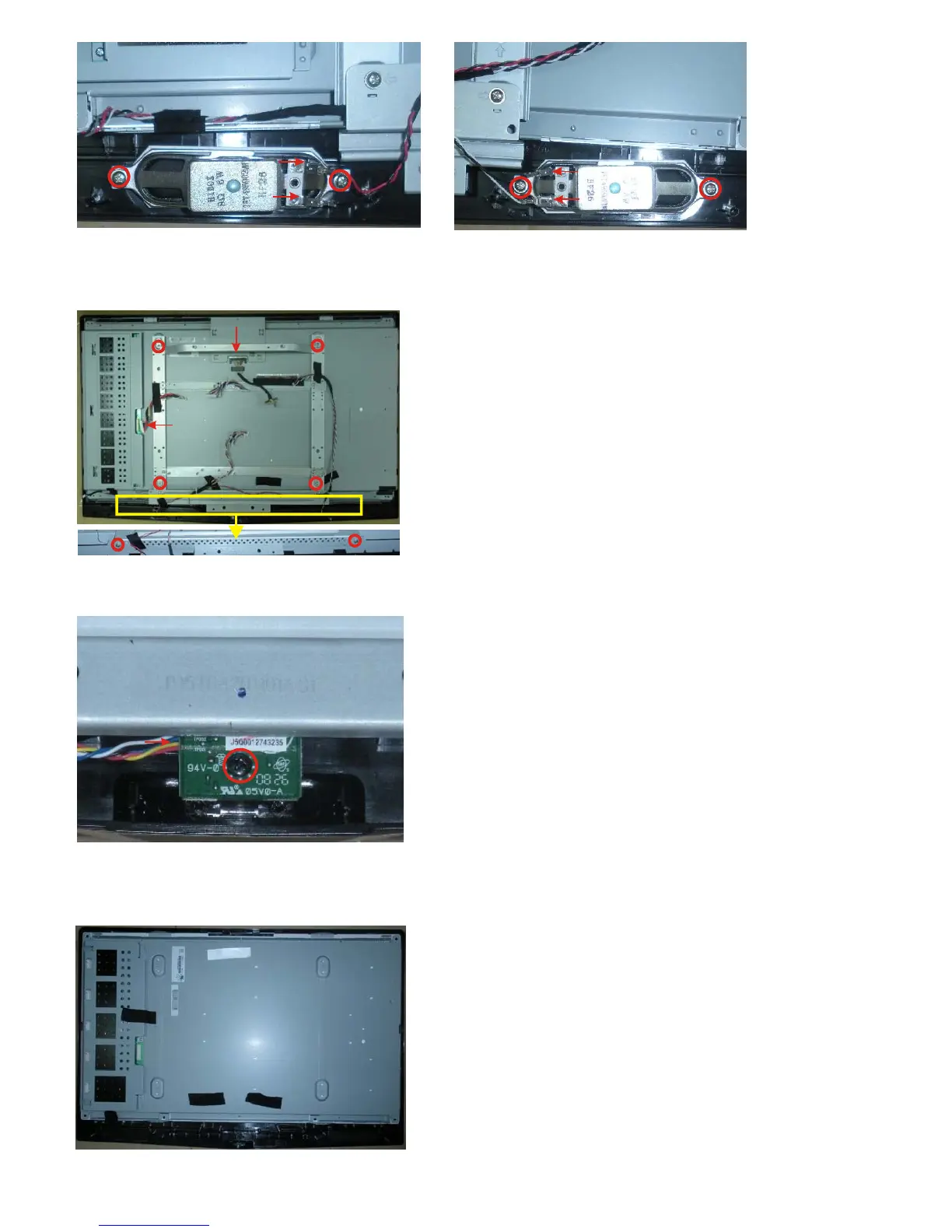

1. Remove the 6 screws and disconnect 2 cables. Detach the Metal Frame as Fig.13.
Fig.13
2. Remove the 1 screw and disconnect 1 cable. Detach the IR board as Fig.14.
Fig.14
Step 5. Remove the Bezel Assy.
1. Remove the 4 screws. Detach the Bezel Assy as Fig.15~Fig.17.
