Sharp LC-42SB55E - TV Connections Overview; Front View Connections; Rear View Connections; Power and Service Ports

LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
6

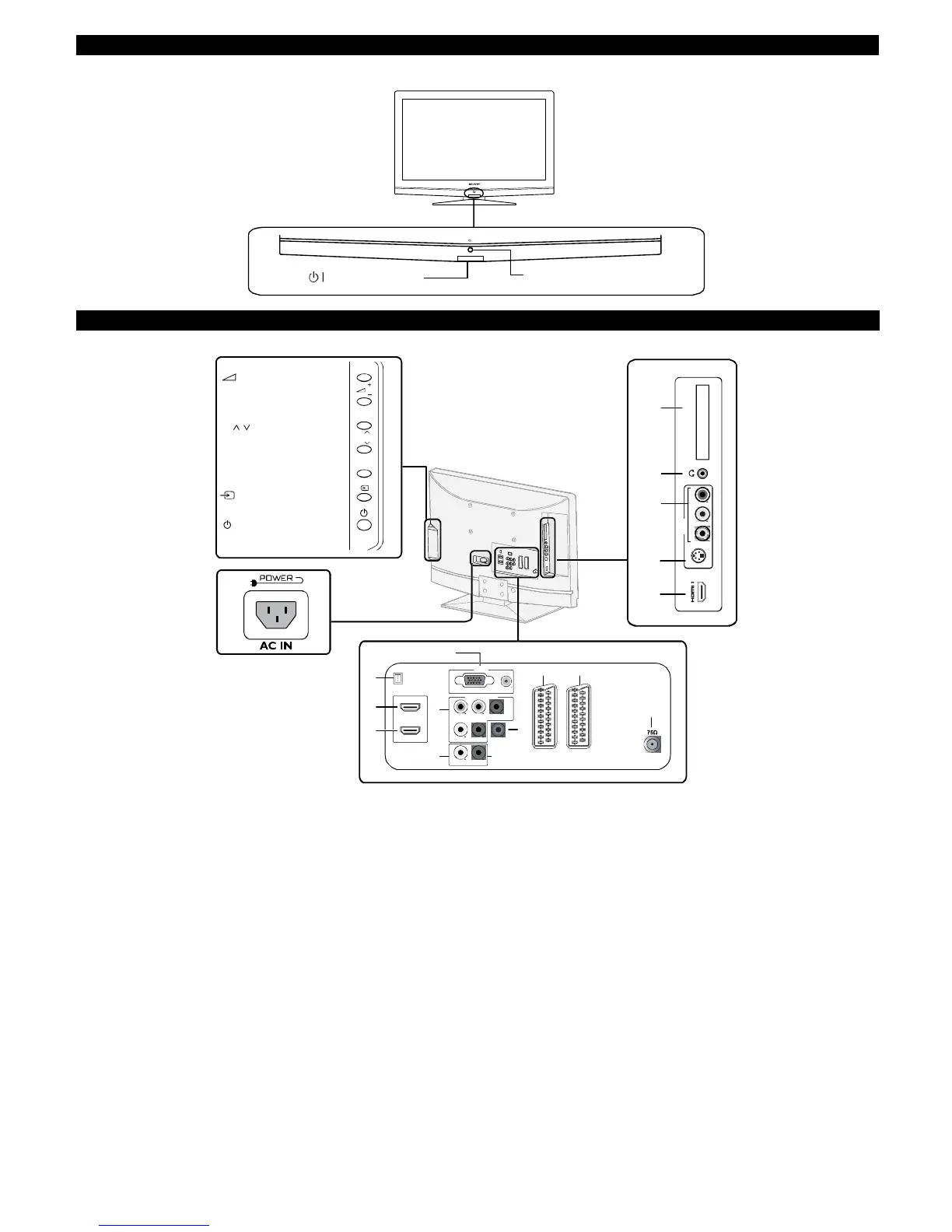

TV (Front view)
TV (Rear view)
12
13
14
15
C.I.
S-VIDEO
VIDEO L R
AV IN
161
2
3
4
5
6
7
9
8
10
11
PC IN
VGA
AUDIO
YPbPr
COMPONENT
LR
SPDIF OUT
LR
AUDIO OUT
SCART1 SCART2
HDMI2
SERVICE
HDMI1
P
MENU
( )
Programme [channel] buttons
button
(INPUT SOURCE) button
(Power) button
(+/-)
Volume buttons
P
MENU
/
1 Power connector
2 SERVICE socket
3 HDMI 1
4 HDMI 2
5 PC IN (VGA/AUDIO)
6 Component Video and L/R Audio input
7 SPDIF Output (Digital audio out)
8 AV L/R Audio Output
9 SCART 1 (CVBS Tuner out)
10 SCART 2 (CVBS Monitor out)
11 Tuner Input
12 COMMON INTERFACE slot
13 Earphone Output
14 Composite ( AV IN, AV/LR)
15 S-Video
16 HDMI 3(For 32” and 42” only)
(Standby/On) indicator
Remote control sensor
