Sharp LC-43CUG8461KS Service Manual
4
of 1
of 1 rating
90 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
46
3.16

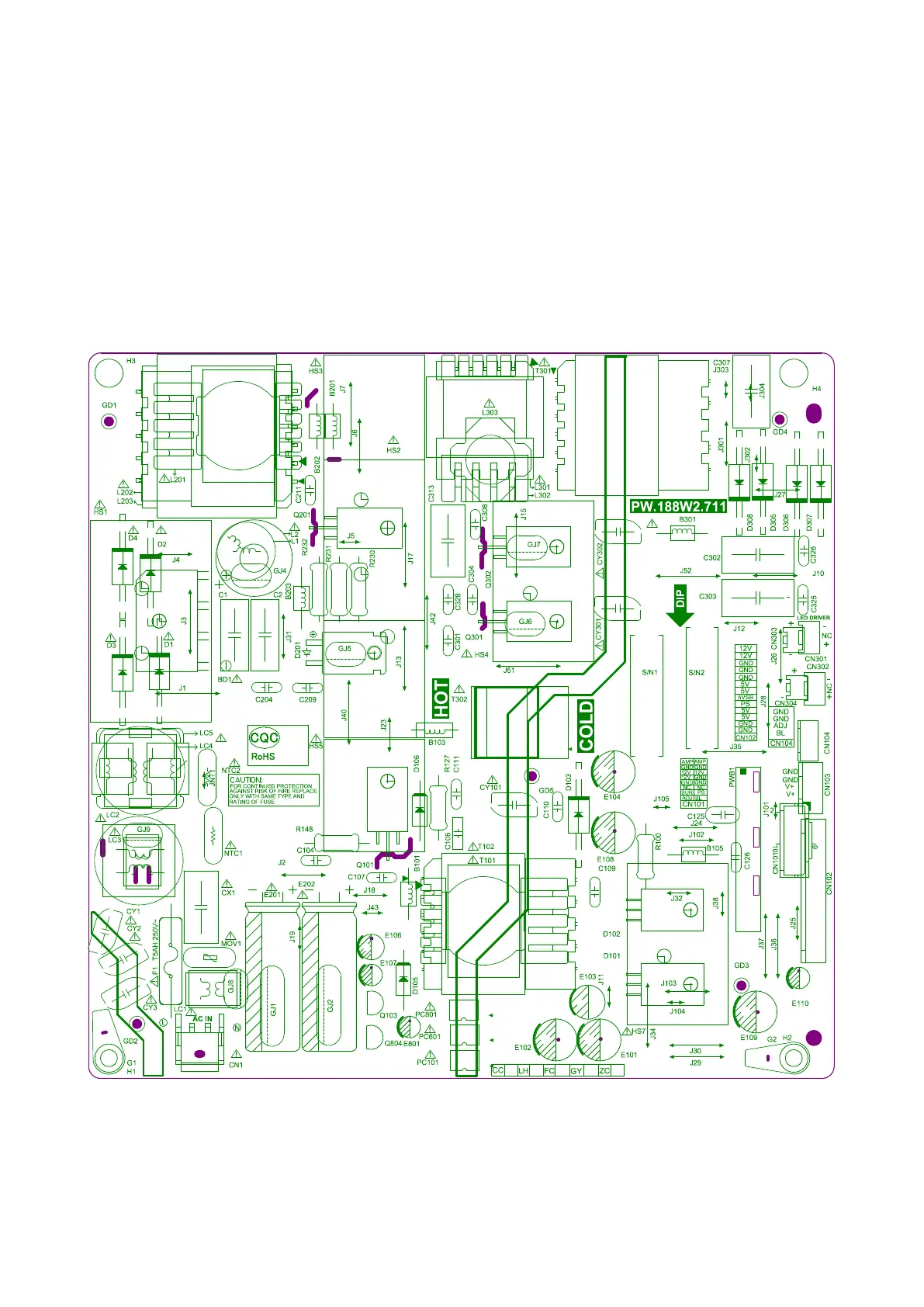

PCB layout of P
ower boar
d - PW
.188W2.711
- for models: L
C-43CUF8472ES, L
C-49CUF8372ES, L
C-49CUF8472ES, L
C-55CUF8472ES,
L
C-55CUF8372ES, L
C-49CUG8362KS, L
C-43CUG8461KS, L
C-43CUG8462KS,
L
C-49CUG8462KS, L
C-55CUG8461KS, L
C-55CUG8462KS
45
47
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Precaution
3
2 Specifications
9
3 Wiring Diagram
26
Wiring Diagram of System Power
27
Wiring Diagram of Main Chip Unit Peripherals
28
Wiring Diagram of Power Supply
29
Wiring Diagram of Memory
30
Wiring Diagram of Flash
31
Wiring Diagram of LVDS, Keyboard & IR
32
Wiring Diagram of AV & YPBPR & SCART
33
Wiring Diagram of Network & USB & PCMCIA
34
Wiring Diagram of HDMI
35
Wiring Diagram of Tuner
36
Wiring Diagram of Demodulator
37
Wiring Diagram of Amplifier 5711 & 5707
38
Wiring Diagram of VB1 & LVDS TX Interface
39
PCB Layout of Power Board - PW.168W2.801
40
Wiring Diagram of Power Board - PW.168W2.801
44
PCB Layout of Power Board - PW.188W2.711
46
Wiring Diagram of Power Board - PW.188W2.711
50
PCB Layout of Power Board - PW.198W2.711
54
Wiring Diagram of Power Board - PW.198W2.711
58
4 Exploded View
62
5 Service Menu
66
Introduction
66
Adc Adjust & White Balance Auto Adjust
67
67
Sound
71
Panel
73
Debug
73
General Setting
74
Emc Setting
74
Channel Table
74
Sw Upgrade
75
Sw Information
75
6 Upgrading Instructions
76
Introduce for MSD6488 Chip
76
Chip Alias
76
Upgrading Instruction
76
7 Osd Menu Tree
83
8 Picture Adjustment
87
White Balance
87
9 Smart Tv Troubleshooting
88
10 Hotel Mode
89
