Sharp LC-46E77U - Bottom Cover

LC-46/52E77U
4 – 2

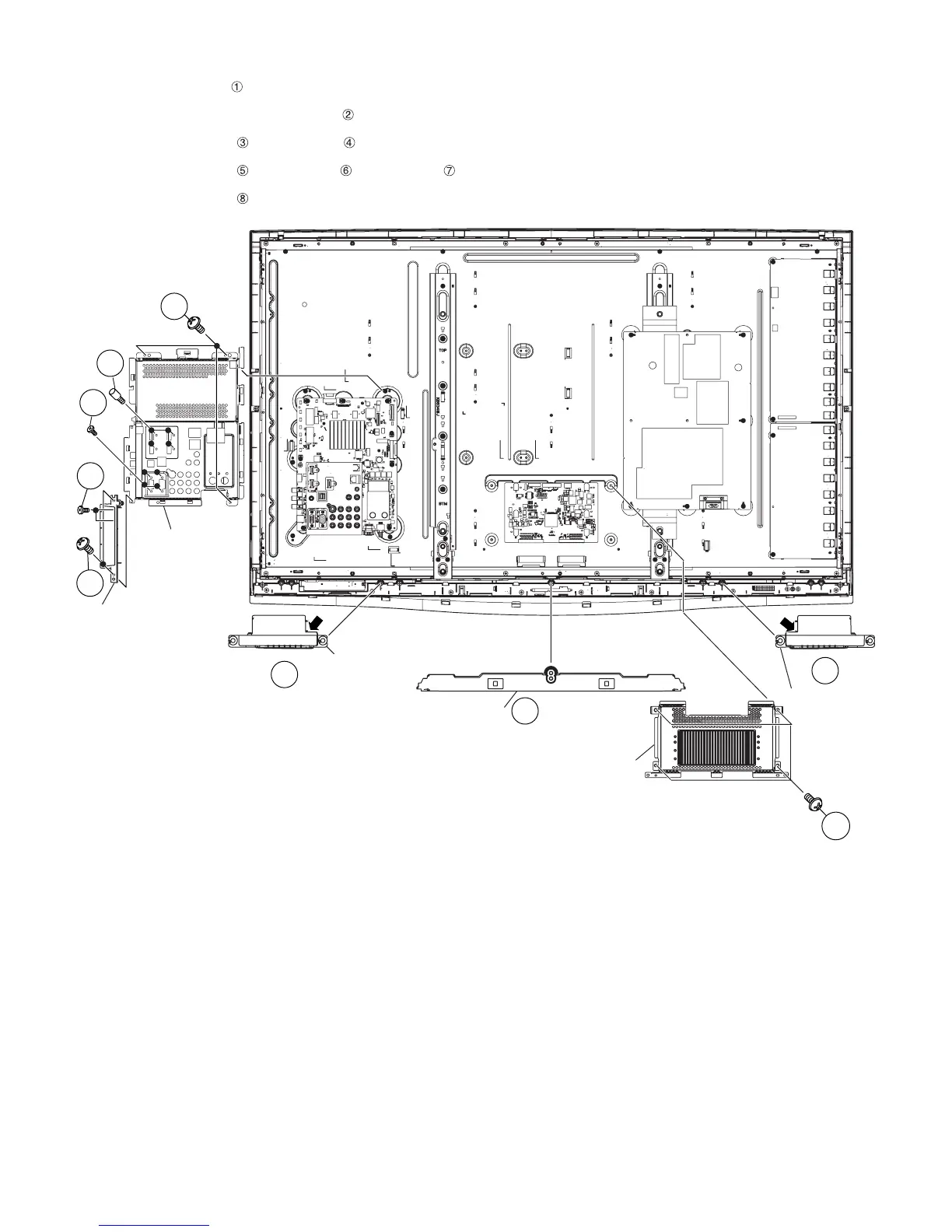

2. Removing of Bottom Cover, Side AV Civer, Main PWB Shield and Control Shield.
1. Detach the Bottom Cover .
2. Disconnect SP wire. Detacht the Speaker-L/R .
3. Remove the 2 lock screws , 2 lock screws and detach the Side AV Cover Ass’y.
4. Remove the 4 lock screws , 4 lock screws , 3 lock screws and detach the Main PWB Shield.
5. Remove the 4 lock screws , and detach the Control Shield Ass’y.
Speaker-R
Speaker-L
Bottom Cover
Main PWB
Shield
Side AV Cover Ass'y
2
1
4
3
6
5
2
SP
SP
Control Shield Ass'y
8
7
