LC-46/52E77U
4 – 11

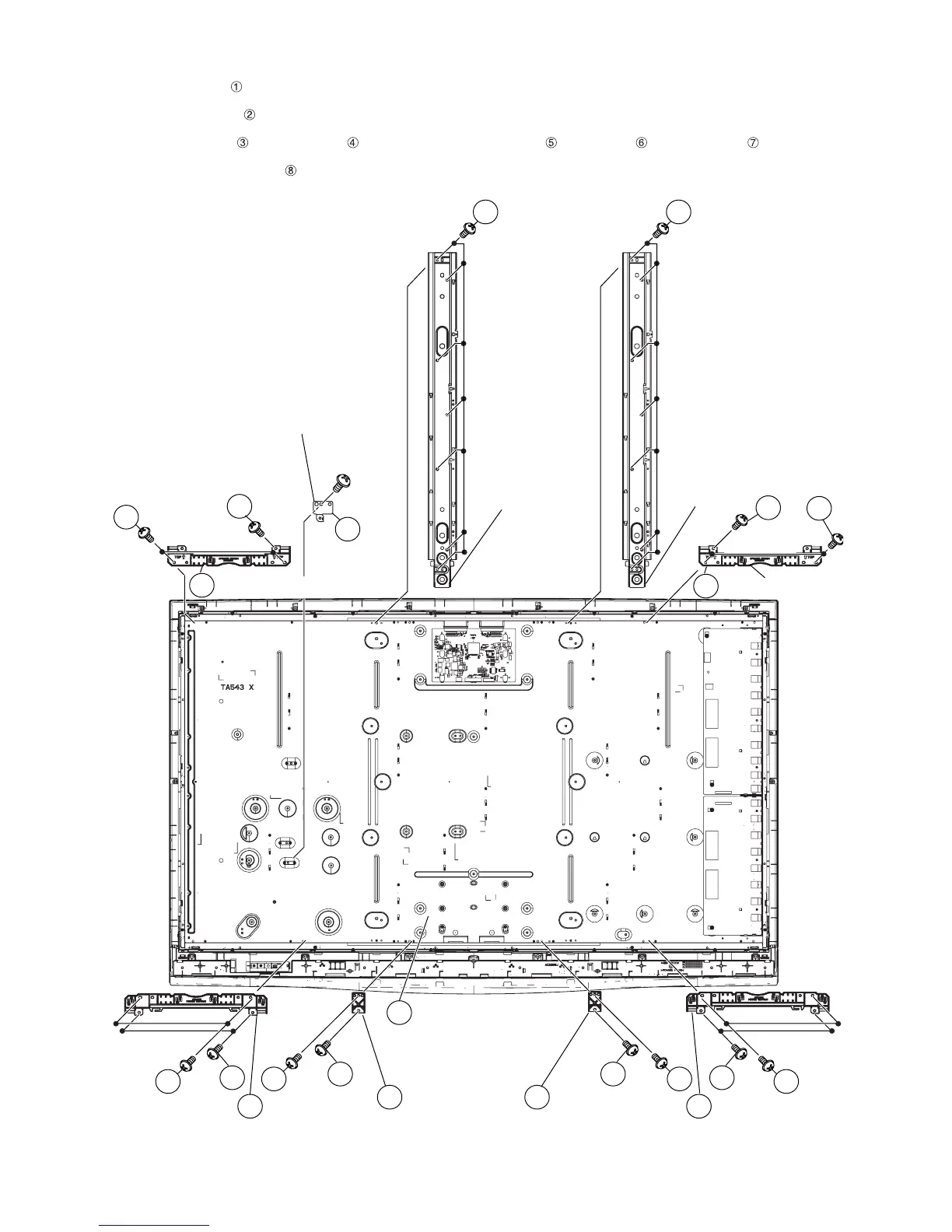

5. Removing of Main PWB Angle, Panel Support Angle, Barrier Sheet and LCD Panel Module Unit.
1. Remove the 1 lock screw and detach the Main PWB Angle.
2. Remove the 14 lock screws and detach the Panel Support Angle.
3. Remove the 8 lock screws , 10 lock screws and detach the Corner Lug (UP) , Center Lug and Corner Lug .
4. Detach the LCD Panel Module Unit .
3
4
2
LCD Panel Module Unit
Panel Support
Angle
Panel Support
Angle
Corner Lug (UP)
Corner Lug
Corner Lug
Center Lug
Center Lug
2
3
4
3
4
3
3
4
4
3
4
1
Main PWB Angle
Corner Lug (UP)
5
5
6
8
7 7
6
