Sharp LC-49CUF8472ES Service Manual

6
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder,
and is attached on the PWBs and service manuals. The alphabetical character following LF
shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When xing the PWB soldered with the lead-free solder, apply lead-free wire solder. Re-
pairing with conventional lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C,
we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain
lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than
the conventional lead solder by 40 °C, and as it has poor solder wettability, you may be apt
to keep the soldering bit in contact with the PWB for extended period of time. However,
Since the land may be peeled o or the maximum heat-resistance temperature of parts
may be exceeded, remove the bit from the PWB as soon as you conrm the steady solder-
ing condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded.
Make sure to turn on and o the power of the bit as required.
If a dierent type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder.
Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, le it with steel wool or ne sandpa-
per.

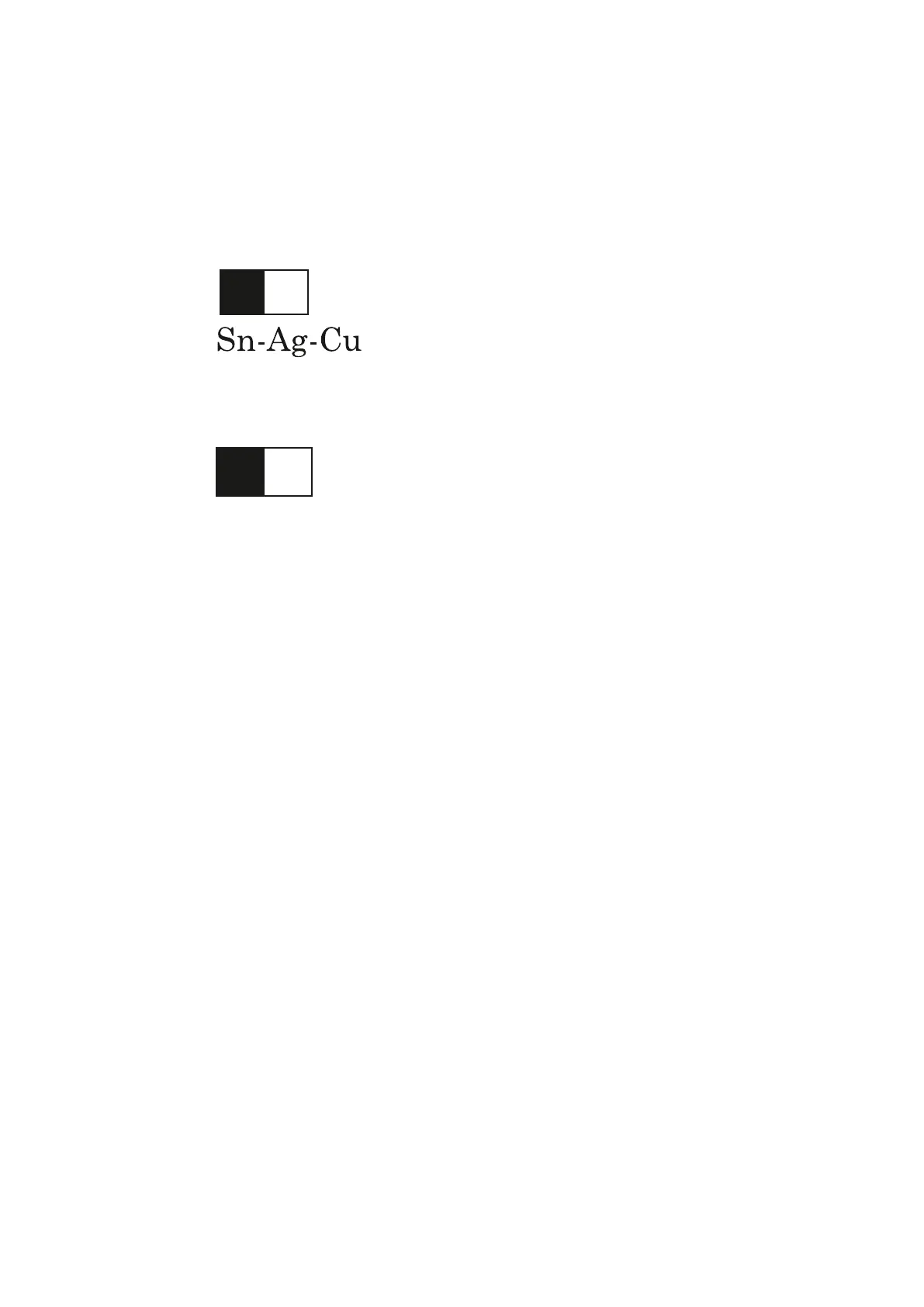

Indicates lead-free solder of tin, silver and copper.
L F a
Indicates lead-free solder of tin, silver and nickel.
L F n
Sn-Ag-Ni

Sharp LC-49CUF8472ES Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	123 cm
Motion interpolation technology	-
3D	No
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	130 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	140 W
Power consumption (standby)	0.5 W
Power consumption (typical)	115 W
Power consumption (PowerSave)	89 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2, DVB-T2 HD
Audio decoders	DTS, Dolby Digital, DTS Studio Sound, Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
Video apps	YouTube
Product color	Black
Panel mounting interface	600 x 300 mm
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPEG, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	SD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Sustainability certificates	ENERGY STAR
Certification	CE, CB
Package depth	138 mm
Package width	1205 mm
Package height	735 mm
Package weight	15100 g

Weight and Dimensions

Depth (with stand)	229.5 mm
Height (with stand)	845.4 mm
Depth (without stand)	68.7 mm
Width (without stand)	1098.5 mm
Height (without stand)	686.2 mm
Weight (without stand)	11500 g
