2. Removing of major Parts 50” (Continued)

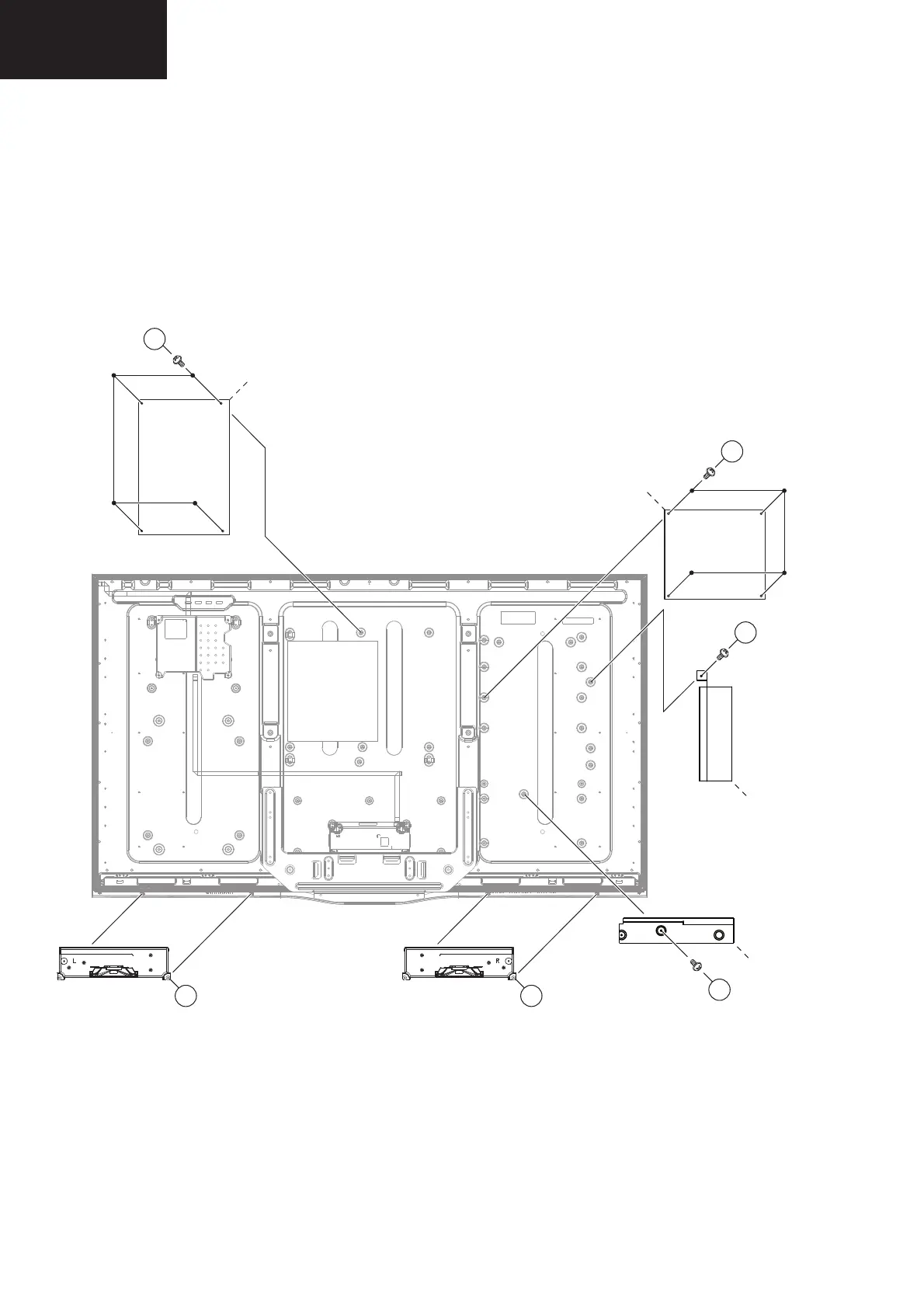

2.4. Remove the 4 lock screws and detach the POWER unit.
2.5. Remove the 4 lock screws and detach the MAIN unit.
2.6. Remove the 1 lock screw and detach the side BRACKET.
2.7. Remove the 1 lock screw and detach the bottom BRACKET.
2.8. Remove the SPEAKER-L and SPEAKER-R .
POWER
unit
5
bottom
BRACKET
MAIN
unit
7
side
BRACKET
6
8
SPEAKER -R
SPEAKER -L
9
10
