2. Removing of major Parts 50” (Continued)

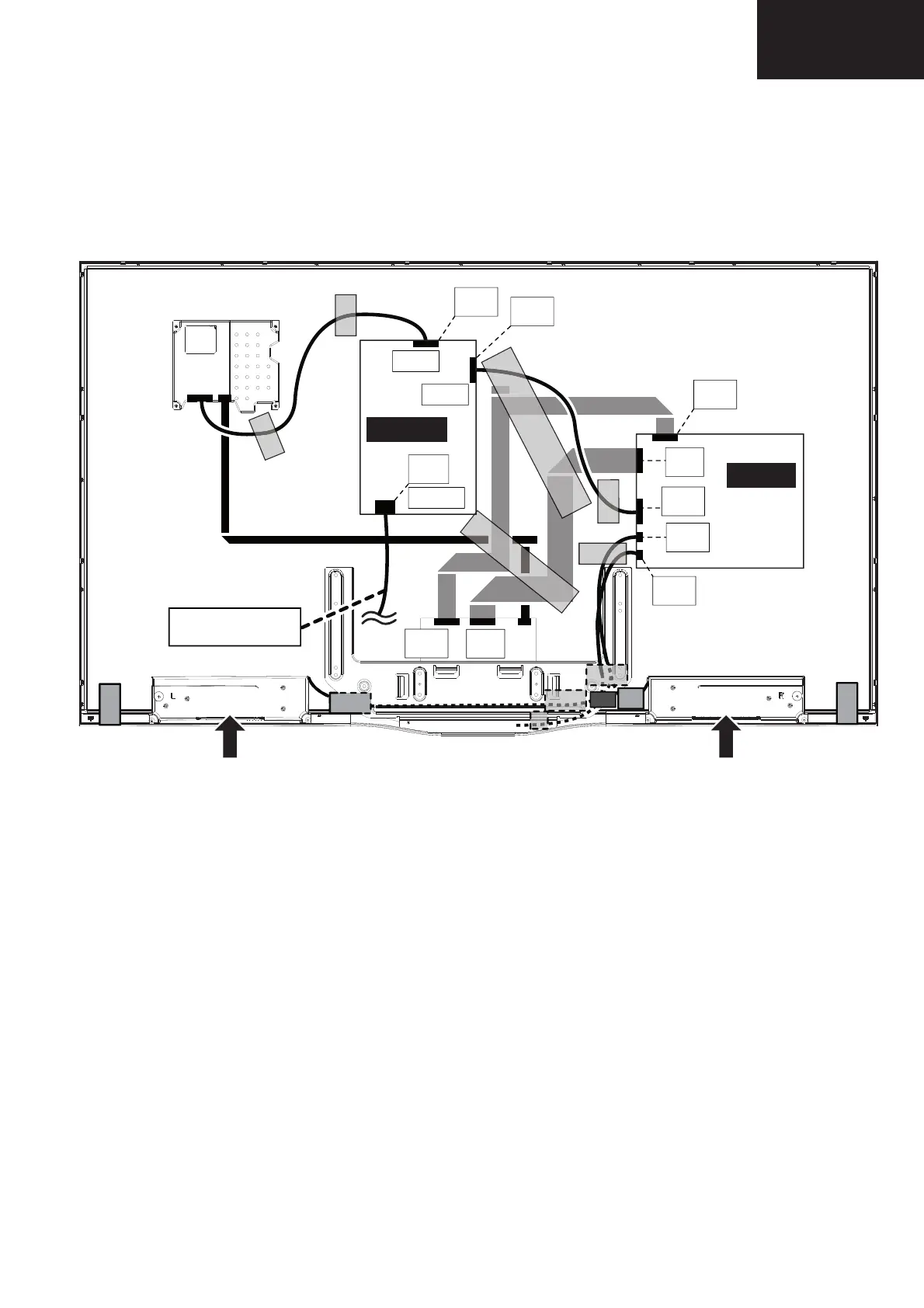

2.3. Disconnect all the connectors from all the PWBs.
SPEAKER -R
SPEAKER -L
Power unit
Main unit
[LA]
P802
P801
[PD]
[LW]
[LV]
[PD]
[LW]
[LV]
[SP]
[RA]
[EL]
SC101
AC CORD
