LC-60C52U
4 – 4

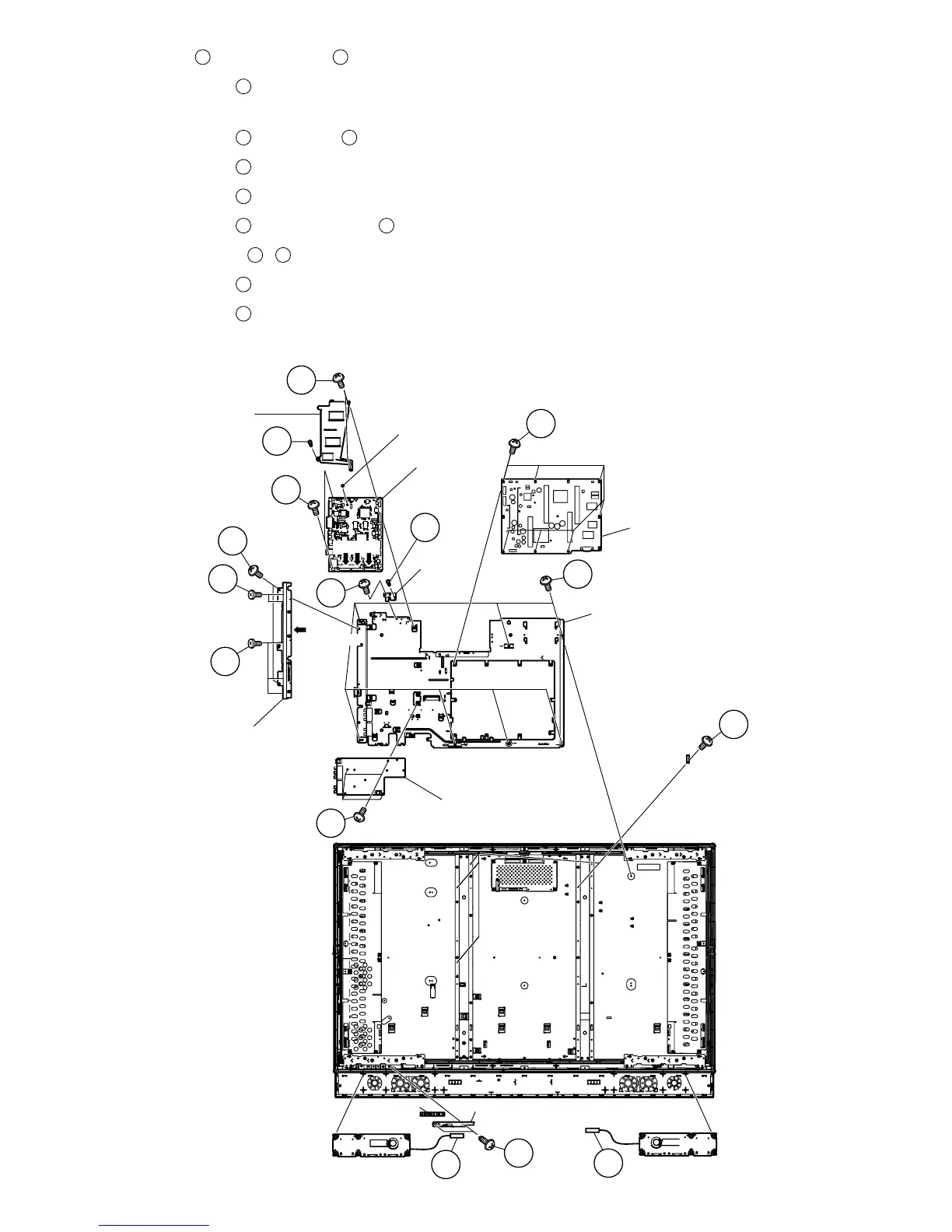

12.Remove the 1 rivet and the 1 lock screw . Detach the earth plate.
13.Remove the 9 lock screws and detach the Tray Chassis.
14.Disconnect the 3 connectors (MA, FC, SA) , and COAXIAL Wire.
15.Remove the 2 lock screws , 3 lock screws and detach the Terminal Angle.
16.Remove the 7 lock screws and detach the POWER SUPPLY Unit.
17.Remove the 4 lock screws and detach the TERMINAL PWB.
18.Remove the 4 lock screws , and the spacer, rivet and detach the Heat Sink and MAIN PWB.
19.Disconnect the 2 connectors , and detach the Speaker-L and R.
20.Remove the 2 lock screws and detach the R/C, LED PWB.
21.Remove the 4 lock screws and detach the plates.
11
12
13
14 15
16
17
18 19
20 21
22
23
19
18
13
14
12
11
16
13
23
15
17
22
20
21
18
Spacer
Main PWB
Earth
Plate
Power Supply PWB
Chassis Tray
Terminal PWB
R/C, LED
PWB
R/C, LED
Cover
Speaker-R Speaker-L
Terminal Angle
COAXIAL Wire
MA FC SA
Heat Sink
To Next Page
