LC-60G9T / LC-70G9T
5 – 12

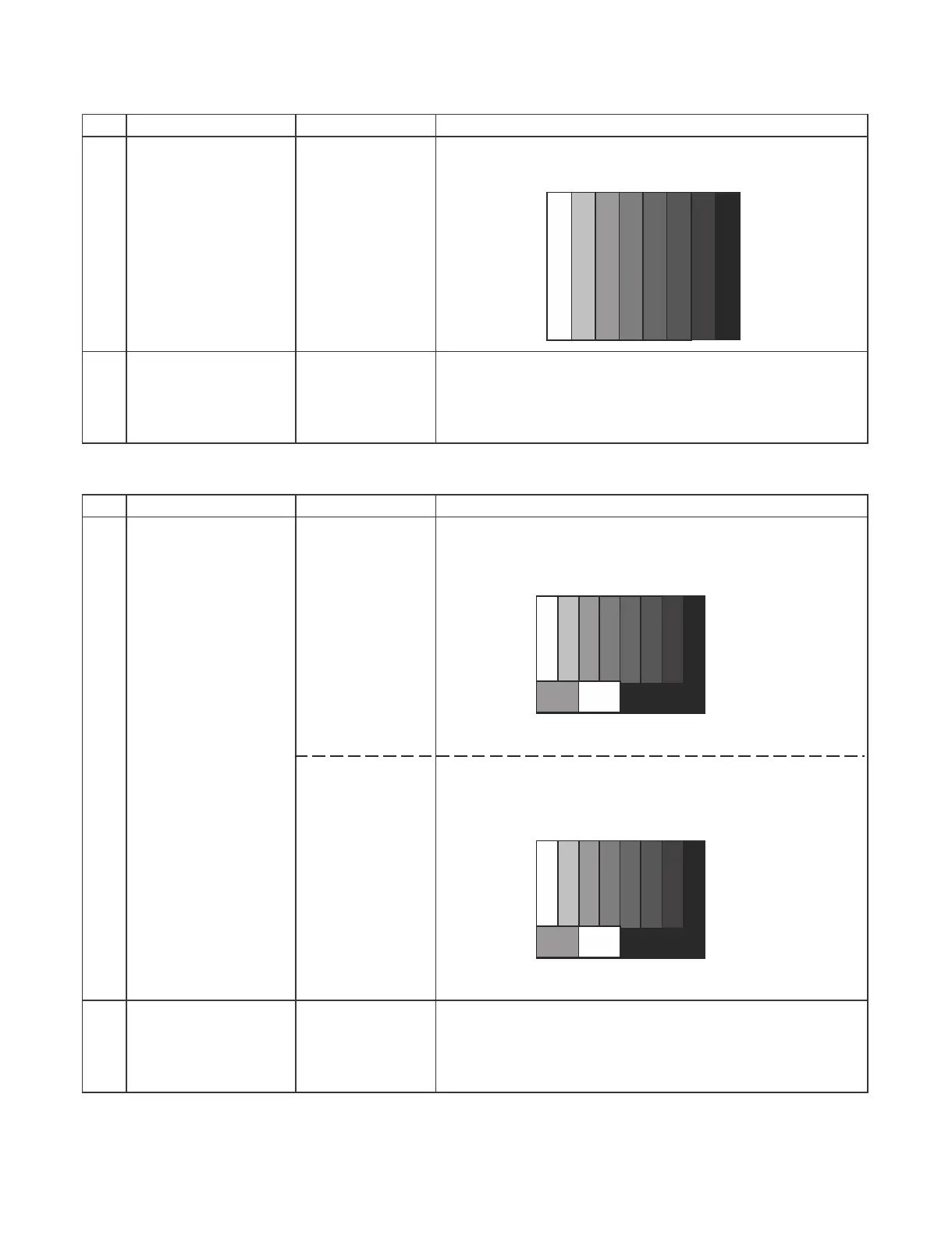

(9.2.5) SECAM Signal Adjustment [For ‘X’ model ONLY. Skip for ‘T’ model]
ERUDECORPNOITIDNOCMETI
1 Setting [Signal]
SECAM Full-field
Colour Bar
[Terminal]
INPUT 6
Video Input
࣭Feed the SECAM Full-field Colour Bar signal(75% colour
saturation) to INPUT 6
2 Auto Adjustment Test Mode page
[4/33]
At the related page, move cursor to [SECAM ADJ], press OK.
[SECAM ADJ OK] appears when finished.
(9.2.6) TUNER Signal Adjustment [For ‘X’ and ‘T’ model]
ERUDECORPNOITIDNOCMETI
1 Setting [For ‘X’ model]
[Signal]
PAL split color bar
Internal UV
[Terminal]
TUNER
[For ‘T’ model]
[Signal]
NTSC split color
bar
Internal UV
[Terminal]
TUNER
࣭Feed the Internal signal (PAL colour bar E-12) to tuner RF.
Picture level and Sync Level 7:3
Feed the Internal signal (NTSC colour bar US-10CH) to
tuner RF. Picture level and Sync Level 7:3
2 Auto Adjustment
[For ‘X’ & ‘T’ model]
Test Mode page
[3/33]
At the related page, move cursor to [TUNER ADJ], press OK.
[TUNER ADJ OK] appears when finished.
100% White ЍЋ Black
Ќ
White 1
00%
[
RF CH E-12
]
Ќ
Whi
te
1
00%
[
RFCH US-10
]
