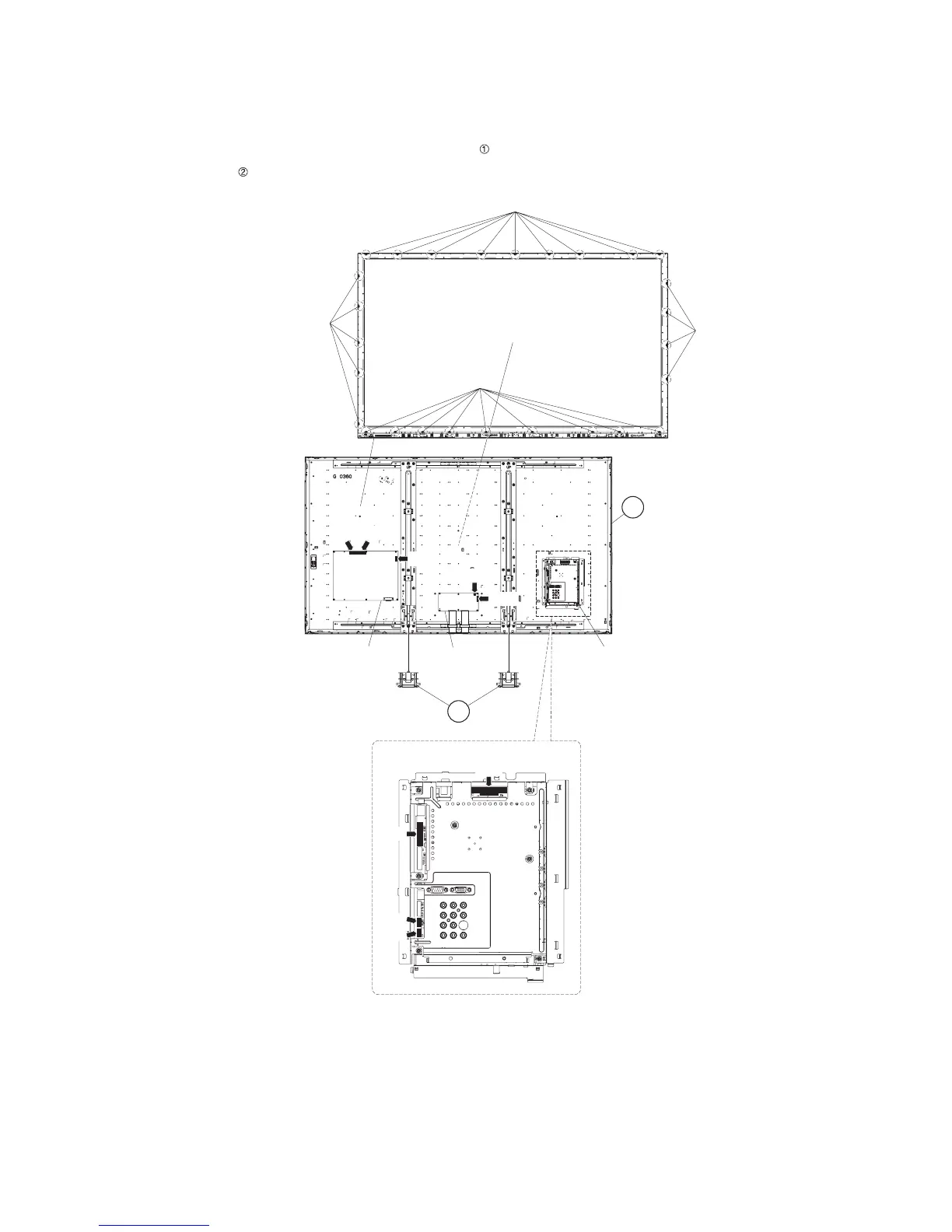

3. Removing of Connectors, 80” LCD Panel Module Unit Ass’y.
1. Disconnect the following connectors from the MAIN Unit. (LV, PD, Cl, UB)
2. Disconnect the following connectors from the POWER/DRIVE Unit. (L1, L2, PD)
3. Disconnect the following connectors from the LCD Control Unit. (PL, LW)
4. Remove the 27 Hooks and detach the 80 LCD Panel Module Unit Ass’y .
5. Detach the 2 Bottom cover .
[PD]
[UB]
[CI]
[LV]
MAIN Unit
LCD
Control
Unit
POWER/DRIVE Unit
Hock
Hock
Hock
Hock
[L1] [L2]
[PD]
[PL]
[LW]
1 80" LCD Panel
Module
Unit Ass'y
MAIN Unit
2Bottom cover

Sharp LC-80LE632U Specifications

General

Display diagonal	80 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	6000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	307 W
Power consumption (standby)	- W
Power consumption (typical)	220 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	433 mm
Height (with stand)	1145 mm
Weight (with stand)	59500 g
Depth (without stand)	99 mm
Width (without stand)	1862 mm
Height (without stand)	1111 mm
Weight (without stand)	55500 g
