Sharp LC-80LE632U User Manual

LC-80LE632U
4 – 7

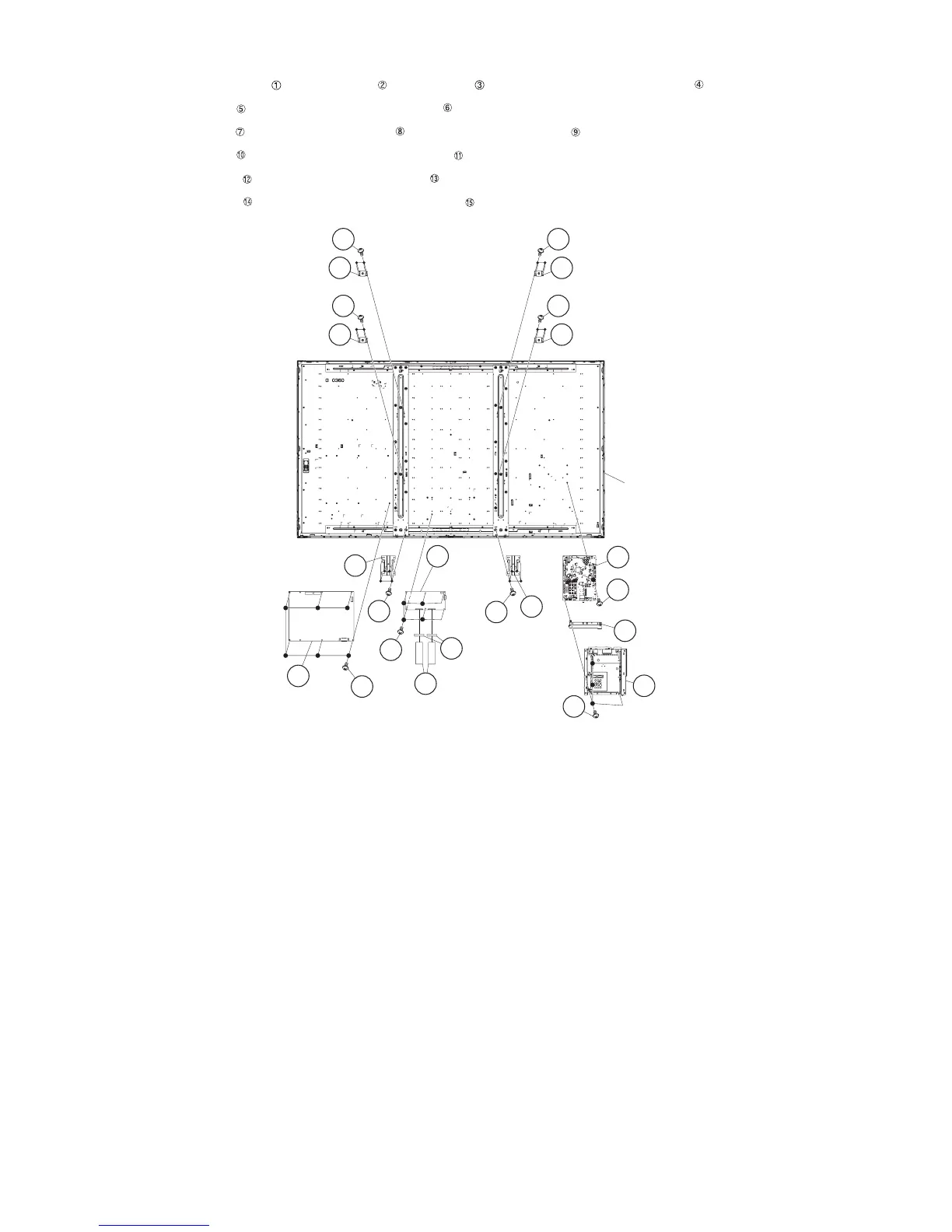

4. Removing of LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Remove the 2 Connecting Cords , 2 Ferrite Cores , 6 lock screws and detach the LCD CONTROL Unit .
2. Remove the 5 lock screws and detach the Shield (MAIN Unit) .
3. Remove the 3 lock screws and detach the MAIN Unit and Terminal Angle (Bottom) .
4. Remove the 6 lock screws and detach the POWER/DRIVE Unit .
5. Remove the 12 lock screws and detach the 2 Stand Angles .
6. Remove the 16 lock screws and detach the 4 VESA Angle Ass’ys .
80" LCD Panel
Module Unit
11
10
1 FFC
2 Ferrite
Core
LCD
Control
Unit
12
3
13
12
POWER/
DRIVE
Unit
Stand Angle
13
Stand
Angle
8
5
4
Terminal
Angle
(Bottoom)
7
Shield
(MAIN Unit)
6
MAIN Unit
9
14
15 VESA Angle Ass'y
14
15 VESA Angle Ass'y
14
15VESA Angle
Ass'y
14
15VESA Angle
Ass'y

Sharp LC-80LE632U Specifications

General

Display diagonal	80 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	6000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	307 W
Power consumption (standby)	- W
Power consumption (typical)	220 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	433 mm
Height (with stand)	1145 mm
Weight (with stand)	59500 g
Depth (without stand)	99 mm
Width (without stand)	1862 mm
Height (without stand)	1111 mm
Weight (without stand)	55500 g
