Sharp MD-R2

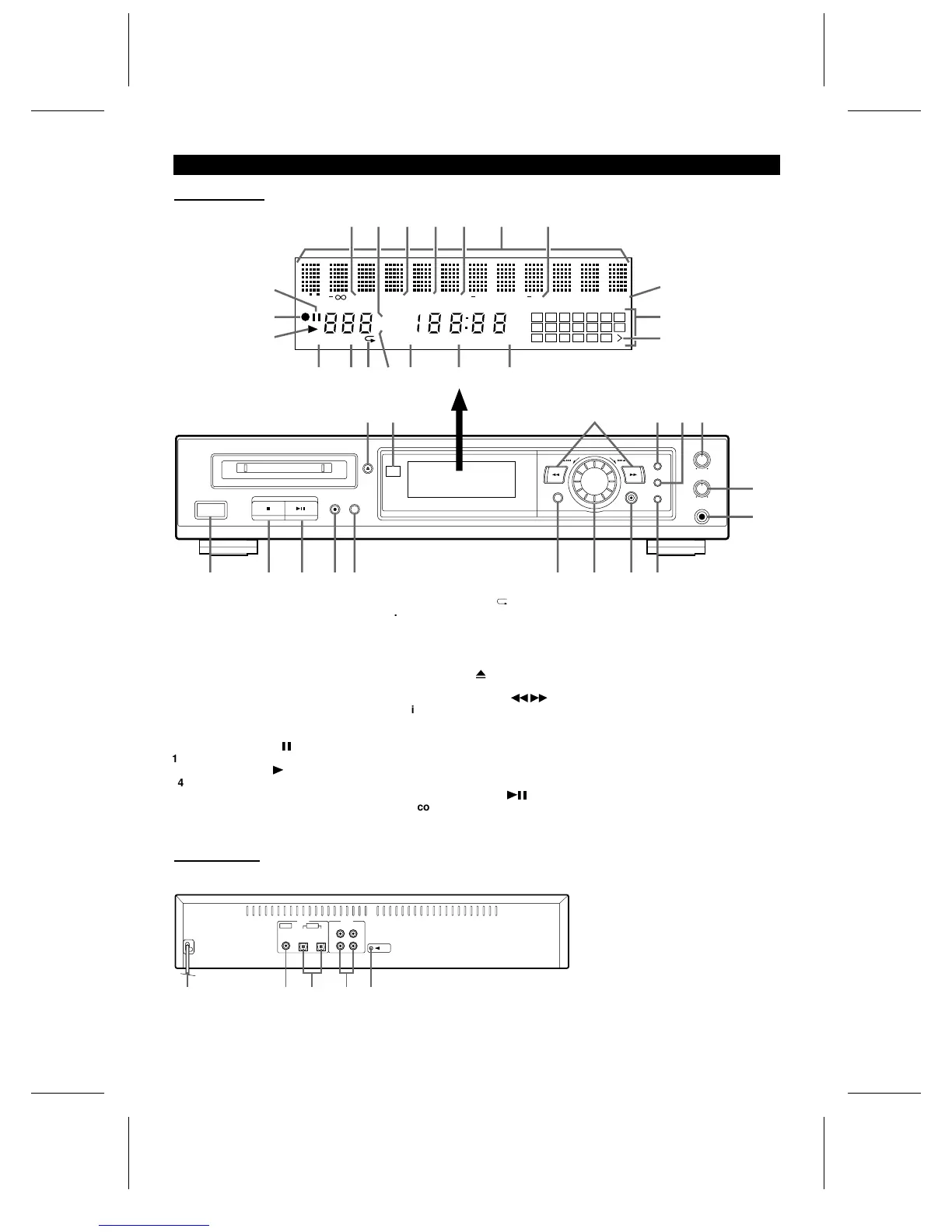

NAMES OF CONTROLS AND INDICATORS
■ Front panel
TOC 12 4 0dB OVERDISC TRACK DATE
MONO LP PRGM RANDOM TIMER REC CLOCK
AM
PM
REMAIN
TOTAL
1 2 3 4 5 6 7
8 9 10 11 12 13
15 16 17 18 19 20
14
12345 6 7
8
9
10
11
14 1516 1817 19 20
21 22 23 24 25 26
27
28
29 30 31 32 33 34 35 36 37
12
13
1. TOC Indicator: TOC
2. Total Time Indicator
3. Disc Name Indicator
4. Track Name Indicator
5. Date Indicator
6. Level Meter/Character Informa-
tion Display
7. Recording Level Indicator
8. Recording Level Too High Indi-
cator
9. Music Calendar
10. More Tracks Indicator
11. Pause Indicator: 6
12. Record Indicator: ●
13. Play Indicator: 0
14. Monaural Long-Play Mode Indi-
cator
15. Program Indicator
16. Repeat Indicator: R
17. Remaining Time Indicator
18. Random Play Indicator
19. Timer Playback/Timer Record-
ing Indicator
20. Clock Indicator
21. Eject Button: 7
22. Remote Sensor
23. Cue/Review Button: 3 / 2
24. Display/Character Button
25. Name/TOC Edit Button
26. Record Level Control
27. Headphone Level Control
28. Headphone Jack
29. Power Button
30. Stop Button: ■
31. Play/Pause Button: 06
32. Record Button: ●
33. Input Select Button
34. Program Button
35. Jog Dial (Next/Previous)
36. Enter Button
37. Delete/Clear/Timer Button
■ Rear panel
1
2
3
4
5
1. AC Power Cord
2. Coaxial Input Jack
(Digital)
3. Optical Input/Output Jacks
(Digital)
4. Line Input/Output Jacks
(Analog)
5. Reset Button
MD-R2
3
