MX3500N MANUAL PAPER FEED SECTION D – 3

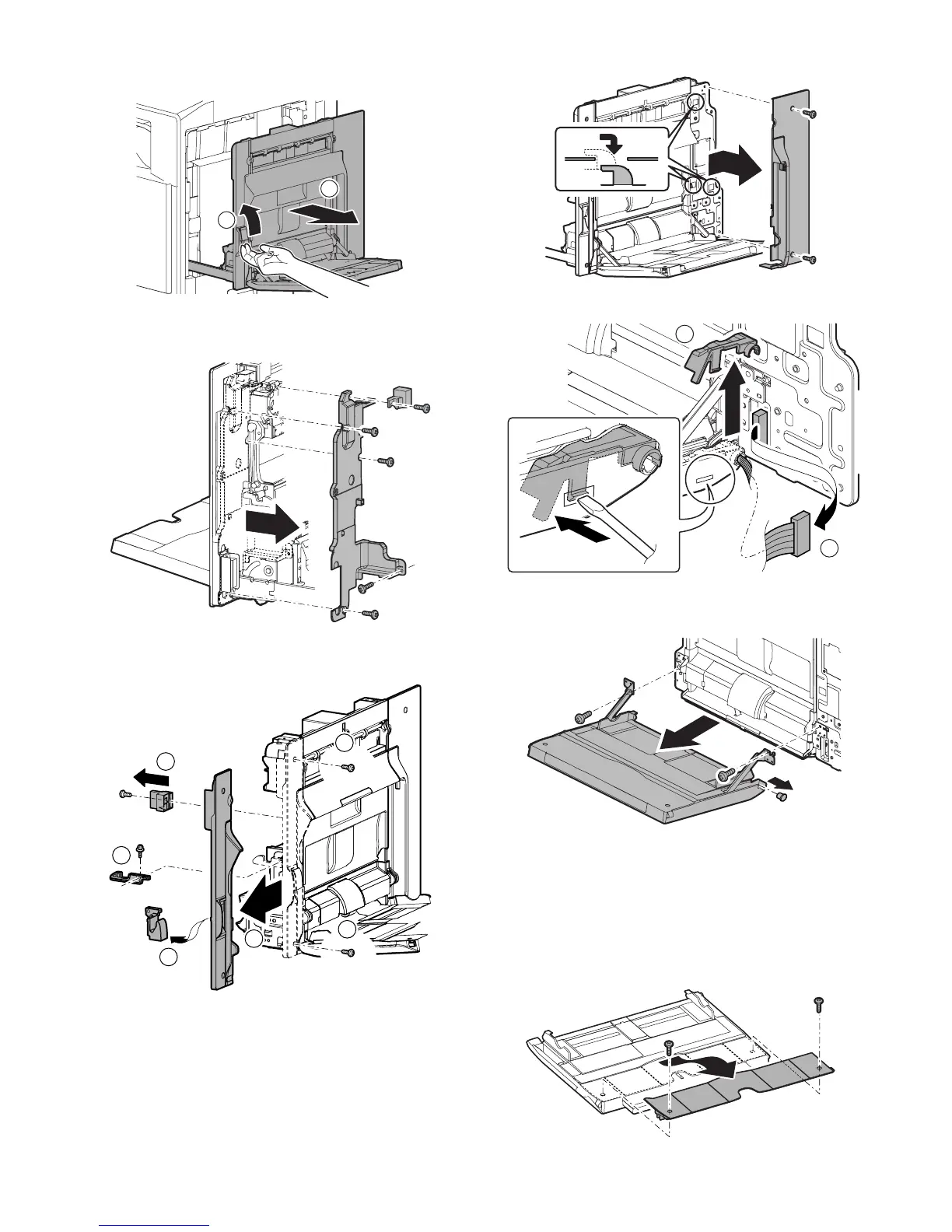

(1) Manual paper feed tray unit
1) Open the right door unit.
2) Remove the screws, and remove the connector cover.
Remove the screws, then remove the ADU inner cover.
3) Remove the lock block. Disengage the right door lock pawl.
Remove the ADU cabinet F, and the right door release lever.
4) Remove the ADU cabinet R.
5) Remove the MF harness cover and disconnect the connector.
6) Remove the MF tray installing shaft, and remove the manual
paper feed tray unit.
a. Temperature/humidity sensors
b. Manual paper feed tray pull-out position detector 1
c. Manual paper feed tray pull-out position detector 2
d. Manual paper feed tray paper width detector
1) Remove the manual paper feed tray unit.
2) Remove the MF tray upper inside cover.
1
2
1
2
5
4
3
3
