6

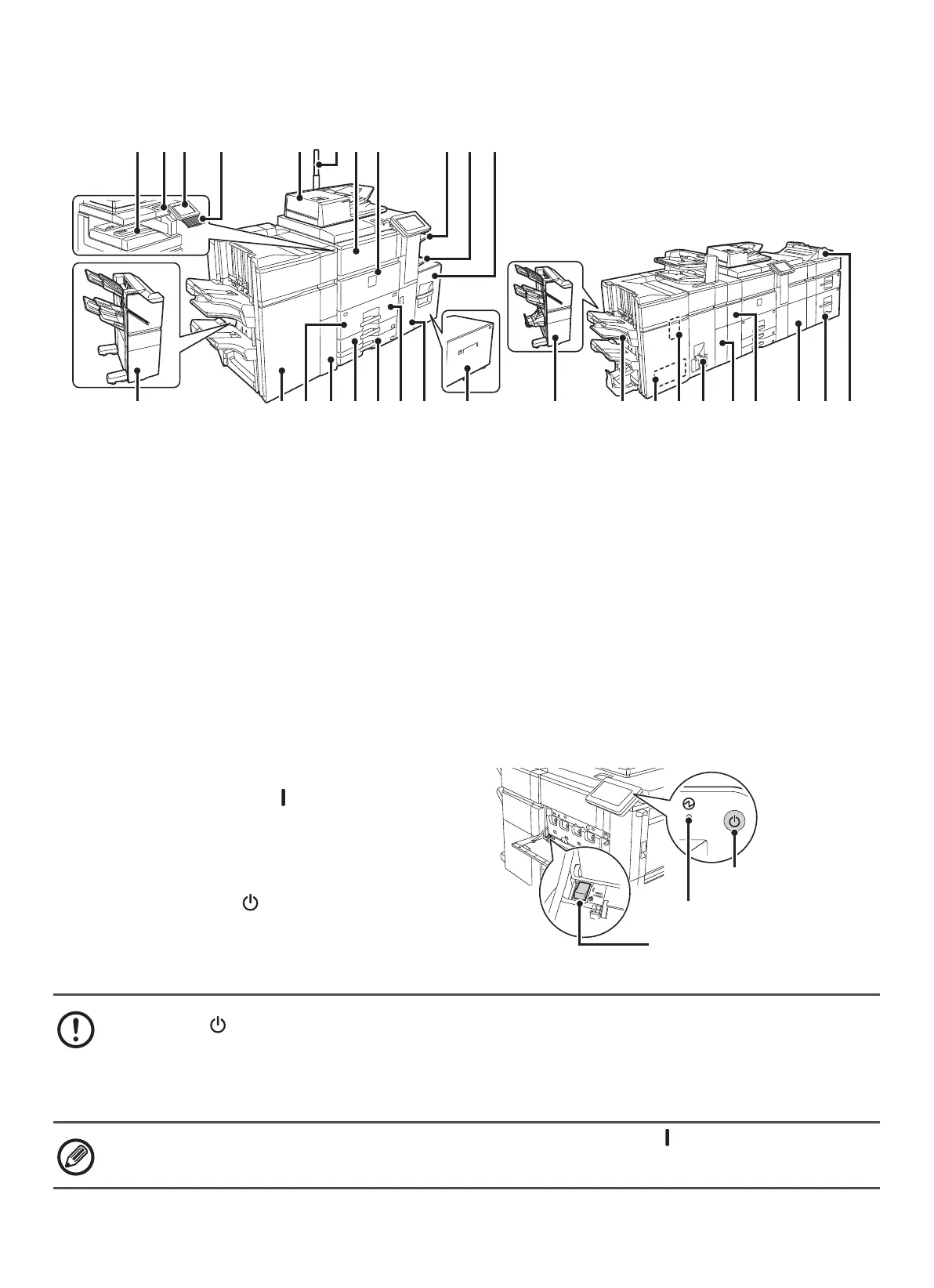

PART NAMES
(1) Output tray (centre tray)*
(2) USB connector (A type)
(3) Operation panel
(4) Keyboard
(5) Automatic document feeder
(6) Status indicator*
(7) Toner cover (upper front cover)
(8) Front cover
(9) Right tray*
(10) Bypass tray (on the machine)
(11) Tray 5 (MX-LC12)*
(12) Finisher*
(13) Finisher (large stacker)*
(14) Tray 1
(15) Curl correction unit*
(16) Tray 3
(17) Tray 4
(18) Tray 2
(19) Cover for waste toner bottle
(20) Tray 5 (MX-LCX3 N)*
(21) Saddle stitch finisher*
(22) Saddle stitch finisher (large stacker)*
(23) Trimming module*
(24) Punch module (MX-PN13B)*
(25) Folding unit*
(26) Inserter*
(27) Paper pass unit*
(28) Large capacity trays*
(29) Bypass tray (on the large capacity trays)*
*Peripheral device.
TURNING ON THE POWER
Operate two power switches: the main power switch inside the front cover, located in the lower left corner, and the
[Power] button on the operation panel.
Turning on the power
Turn the main power switch to the " " position.
When the main power indicator lights in green, press the
[Power] button.
Turning off the power
Turn off the power by pressing the [Power] button, then turn
the main power switch to the " " position.
Restart the machine
Turn off the power by pressing the [Power] button and then
press it again to turn on the power.
(1) (5) (7) (8)(2) (3) (4) (6) (9) (11)(10)
(12) (13) (16)(17)(18)(19)(15) (20) (21) (22) (23) (25) (27) (28)(26) (29)(15)(24)(14)
[Power] button
Main power switch
Main power indicator
• When turning off the main power switch, press the [Power] button on the operation panel and then turn the main power
switch to the " " position.
In a sudden case of main power outage, turn the power for the machine back on and then turn it off in the correct order.
If the machine is left for a long time with the main power having been turned off prior to the [Power] button is turned off,
abnormal noises, degraded image quality or other problems may result.
• Turn off both the [Power] button and the main power switch and unplug the power cord if you suspect a machine failure, if
there is a bad thunderstorm nearby, or when you are moving the machine.
• When using the fax or Internet fax function, always keep the main power switch in the " " position.
• In order for some settings to take effect, the machine must be restarted. In some states of the machine, restarting with the
[Power] button may not make the settings take effect. In this case, turn off the main power switch and then turn it on again.
