BEFORE USING THE MACHINE
11

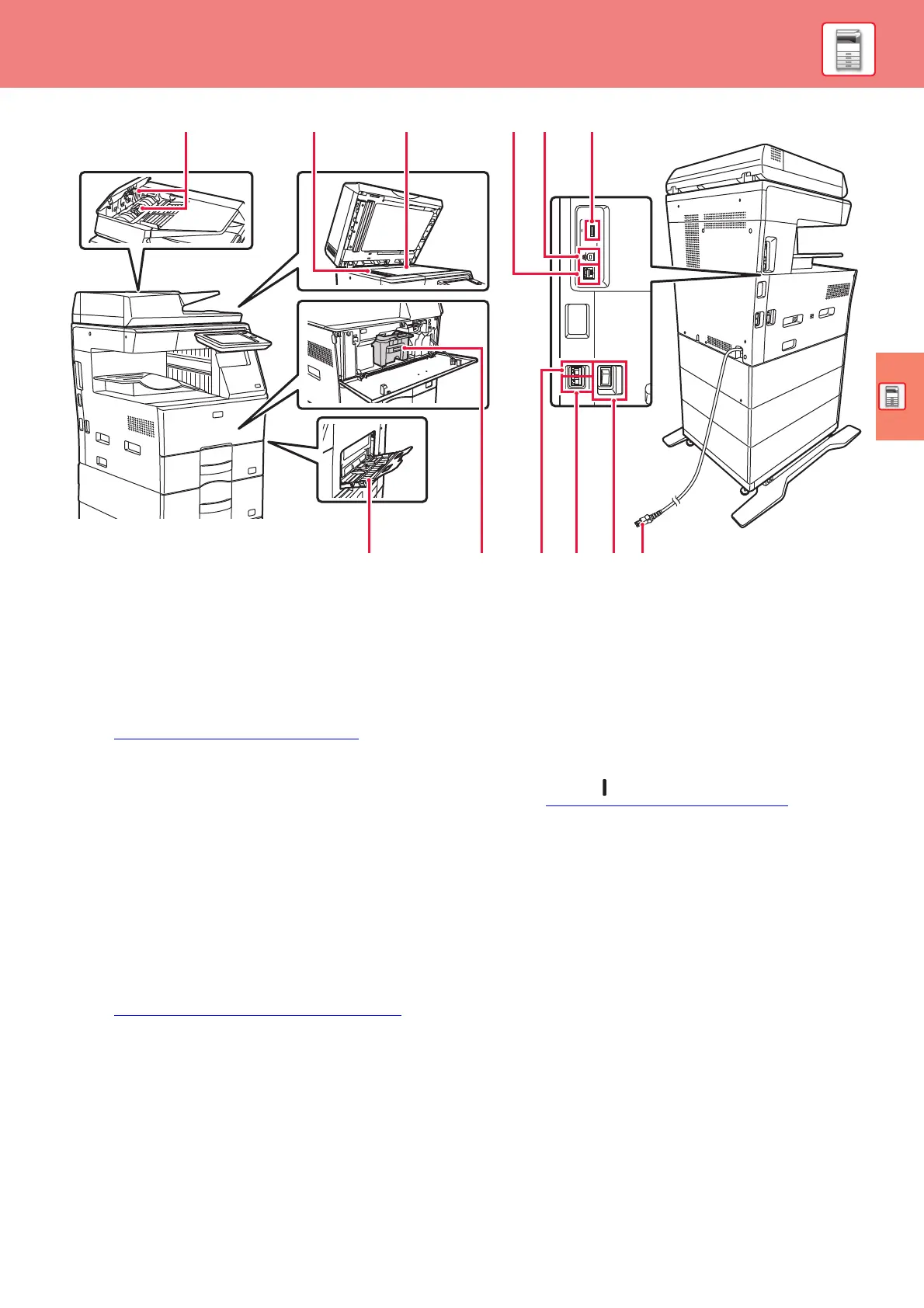

(1) Paper feed roller
This roller rotates to automatically feed the original.
(2) Scanning area
Originals placed in the automatic document feeder are scanned
here.
(3) Document glass
If you want to scan books or other thick originals that cannot be
fed through the automatic document feeder, place them on this
glass.
► USING THE DOCUMENT GLASS (page 16)
(4) LAN connector
Connect the LAN cable to this connector when the machine is
used on a network.
Use a shielded LAN cable.
(5) USB port (B type)
The machine does not use this connector.
(6) USB port (A type)
This is used to connect a USB device such as a USB memory
device to the machine.
Supports USB 2.0 (Hi-Speed).
If USB memory devices are connected to both the front and
back sides, only the USB memory device that was inserted first
will be recognized.
(7) Bypass tray
Use this tray to feed paper manually.
When loading large paper, open the extension guide.
► LOAD PAPER INTO THE BYPASS TRAY (page 21)
(8) Toner cartridge
This cartridge contains toner.
When the toner in a cartridge runs out, replace with new one.
(9) Telephone line jack (LINE)
When the fax function of the machine is used, the telephone line
is connected to this jack.
(10) Extension phone jack (TEL)
When the fax function of the machine is used, an extension
phone can be connected to this jack.
(11) Main power switch
Use this button to turn the machine's power on and off.
When using the fax or Internet fax functions, always keep this
switch in the “ ” position.
► TURNING ON/OFF THE POWER (page 12)
(12) Power plug
(12)(7) (11)(10)(9)
(4) (6)(5)(2)(1)
(8)
(3)
