MX-M232D (AR-D36/D37) 5 - 1
[5] AR-D36/D37

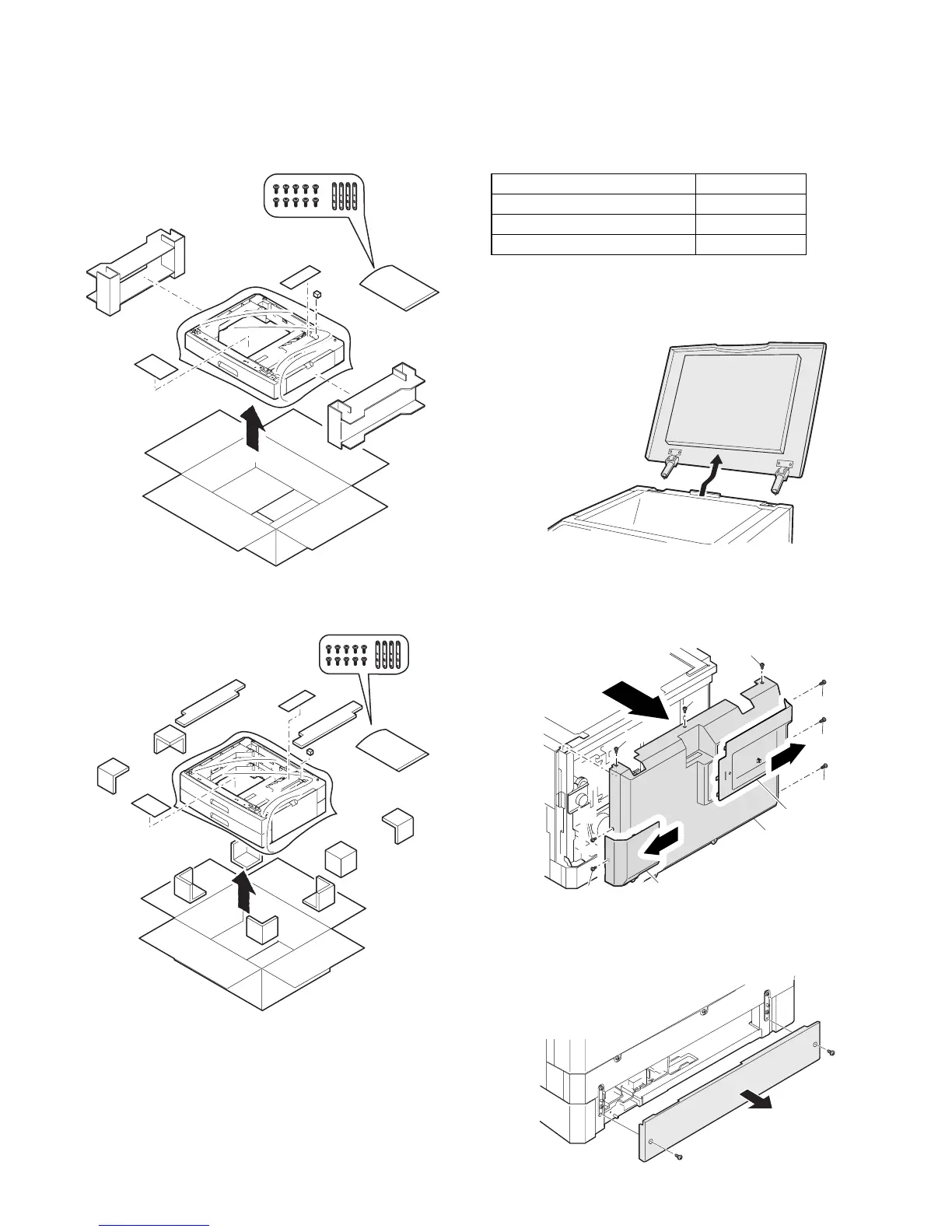

1. Unpacking
(AR-D36)
(AR-D37)
2. Installation
Included parts
1) Remove the document cover.
Lift the document cover from the machine and tilt it to the rear side to
remove it.
2) Remove the rear cabinet.
Remove the screw. Remove the rear cabinet and the rear cabinet
cover.
3) Remove the rear cover.
Remove the two screws and remove the rear cover.
Part name Quantity
Screw M4 x 12 (Fixing plate) 10
Fixing plate 4
Paper size label 1
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(3)
(4)
To Next Page
