ELECTRICAL
SHARP
18
SHARP Document Solution Centre
High Voltage Settings

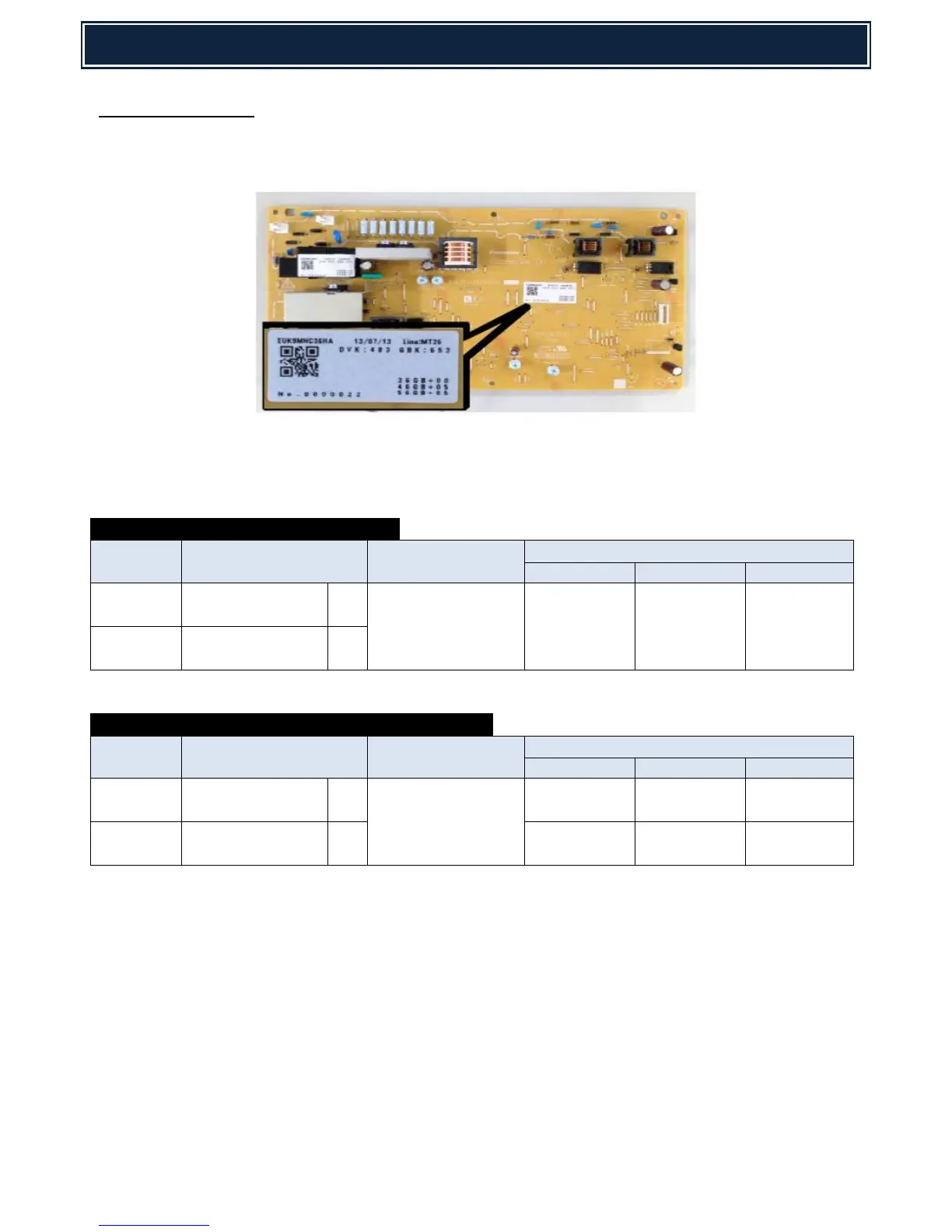

Note: The adjustment value of each colour mode is specified on the information label attached to the
MC/DV High Voltage Power PWB.
Using Simulation 8-01 (DV Bias Setting) & Sim 8-02 (MC Grid Bias Setting), enter the values
specified, especially after replacing the PCU PWB, EEPROM or following U2 trouble.
DV BIAS VOLTAGE – SIMULATION 08-01
Item
Mode
Adjustment Range
Actual Voltage
MX-M365N
MX-M465N
MX-M565N
Middle
Speed
DV Bias Voltage
K
0 - 700
-475 +/- 5V
-475 +/- 5V
-475 +/- 5V
Low
Speed
DV Bias Voltage
K
MAIN CHARGE GRID VOLTAGE – SIMULATION 08-02
Item
Mode
Adjustment Range
Actual Voltage
MX-M365N
MX-M465N
MX-M565N
Middle
Speed
MC Grid Voltage
K
150-850
-665V +/- 5V
-670V +/- 5V
-670V +/- 5V
Low
Speed
MC Grid Voltage
K
-665V +/- 5V
-665V +/- 5V
-665V +/- 5V
