MX-M503N MX-KBX2 23 – 1
MX-M503N
Service Manual
[23] MX-KBX2
* This option cannot be installed to the following models.
MX-M363U/M453U/M503U
MX-M282N/M362N/M452N/M502N

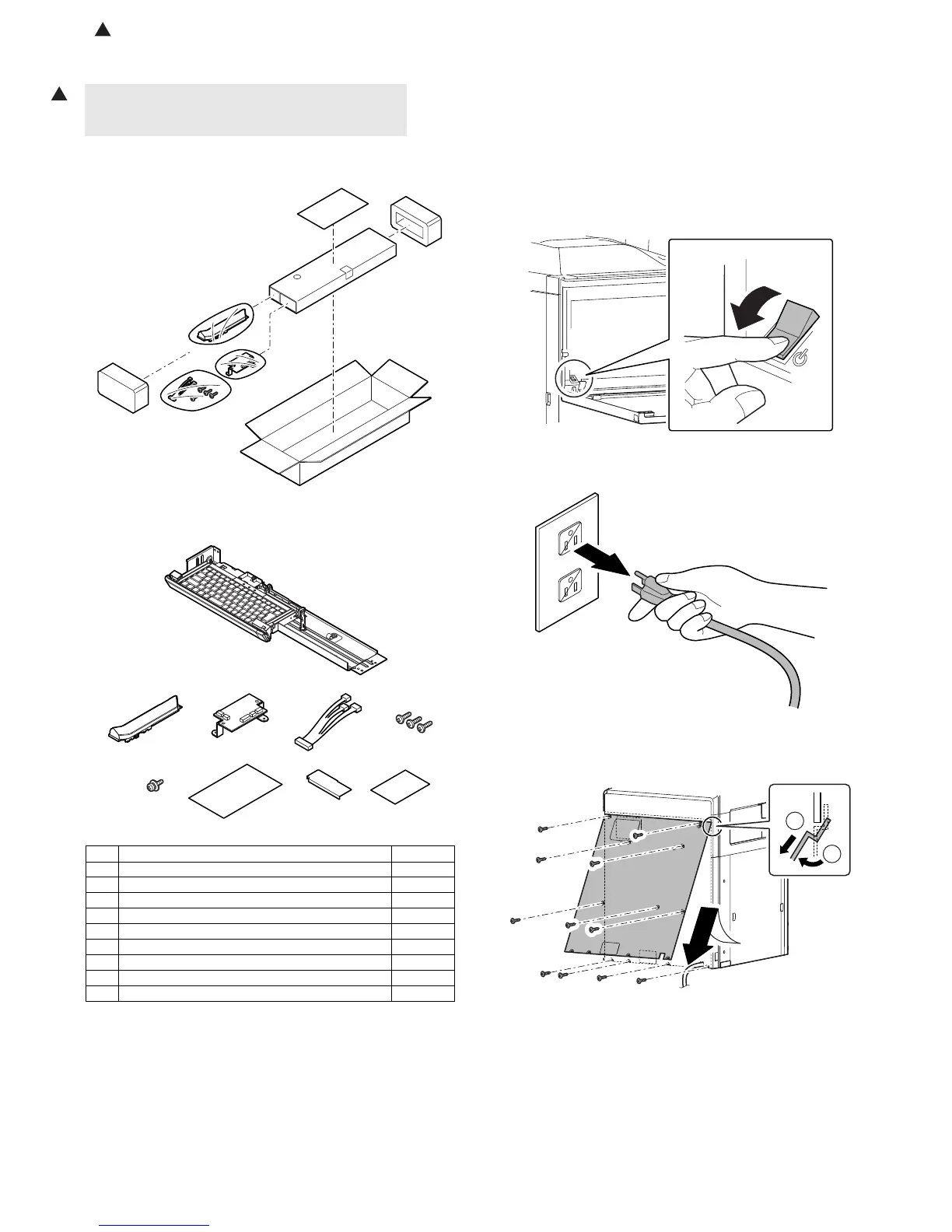

1. Unpacking
A. Check the parts in the package
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main
unit.
3) Disconnect the power plug of the main unit from the power out-
let.
B. Install the USB hub PWB.
1) Remove the screw, and remove the rear cabinet.
No. Name of parts in the package Quantity
1 Keyboard unit 1
2 Operation base plate C 1
3 USB hub PWB unit 1
4 Mother PWB connection harness 1
5 Fixing screw A (M4 x 8 S tight) 3
6 Fixing screw B (M3 x 8 3-point system) 1
7 Protection sheet 1
8 Black sheet 1
9 Installing Procedures 1
1
1
2
5
6
78
9
34
OFF
1
2
: '10/Jun/18
1

Sharp MX-M503U Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Maximum Paper Capacity	5, 600 sheets
Warm-up Time	20 seconds
Zoom Range	25% to 400%
Scan Resolution (Extended)	9600 x 9600 dpi
Functions	Print, Copy, Scan
Print Speed	50 ppm
Copy Speed	50 cpm
Paper Capacity	1, 100 sheets
Maximum Paper Size	11 x 17 inch
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac, Linux
Original Size	11 x 17 inch
Document Feeder	100 sheets
First Copy Out Time (Black)	3.9 seconds
Scan Destinations	Email, FTP, USB, Network
