COOL and DRY modes Horizontal air flow
HEAT mode Diagonal air flow
10

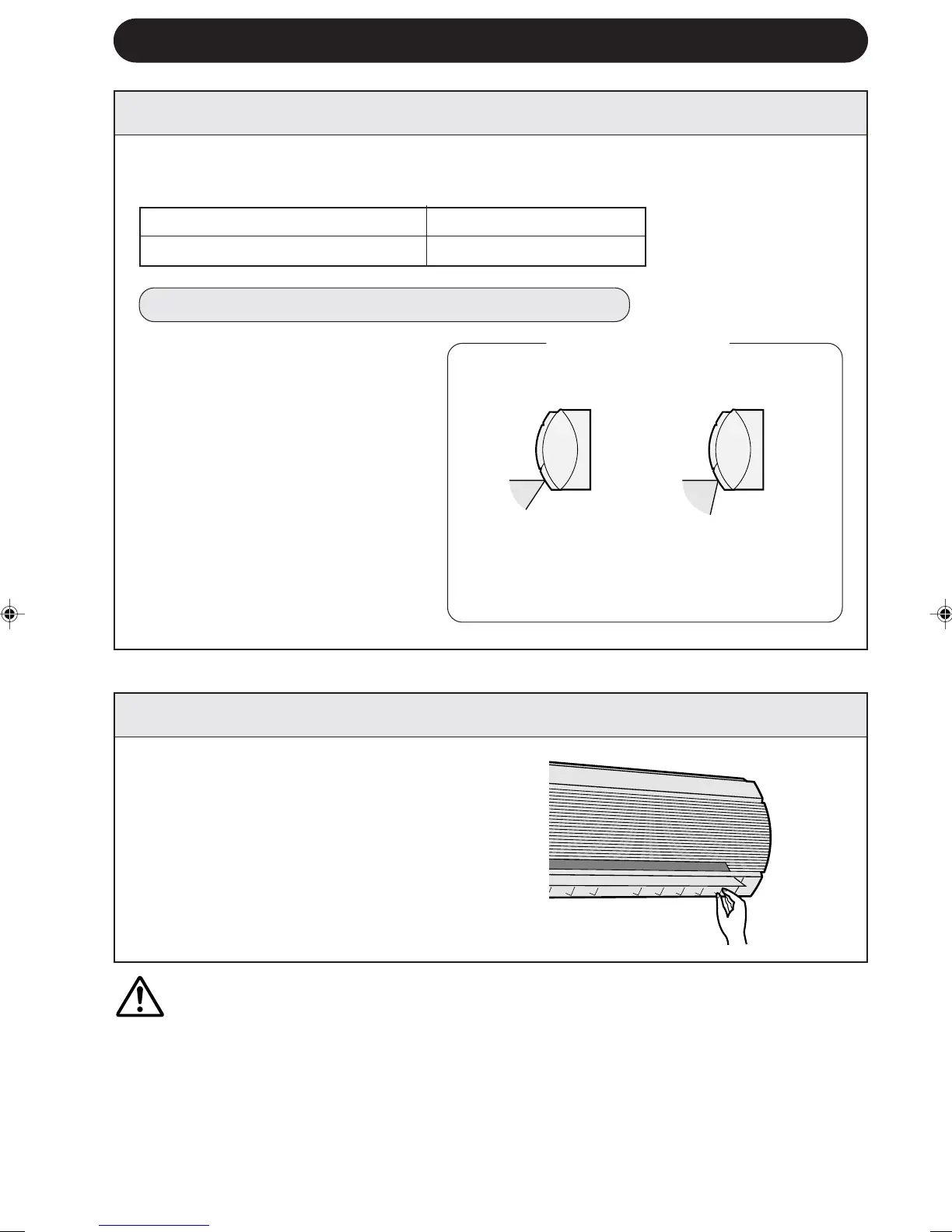

ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for
optimum comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
COOL and DRY modes
HEAT mode
The adjustment range
is narrow in order to
prevent condensation
from dripping.
The range is wide so the
air flow can be directed
toward the floor.
Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.
Press the SWING button on the
remote control once.
• The vertical adjustment louvre will
change its angle continuously.
Press the SWING button again
when the vertical adjustment lou-
vre is at the desired position.
• The louvre will stop moving within
the range shown in the diagram.
• The adjusted position will be memo-
rized and will be automatically set to
the same position when operated the
next time.
Adjustment range
HORIZONTAL AIR FLOW DIRECTION
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the
remote control is used for the adjustment.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode
for an extended period of time, condensation may result.
Do not adjust the horizontal adjustment louvre extremely to the right or left when operating
the air conditioner with fan speed "SOFT" for an extended period of time.
Condensation may form on the louvres.
