PN-L803C/80TC3 OUTLINE OF THE PRODUCTS 1 - 8

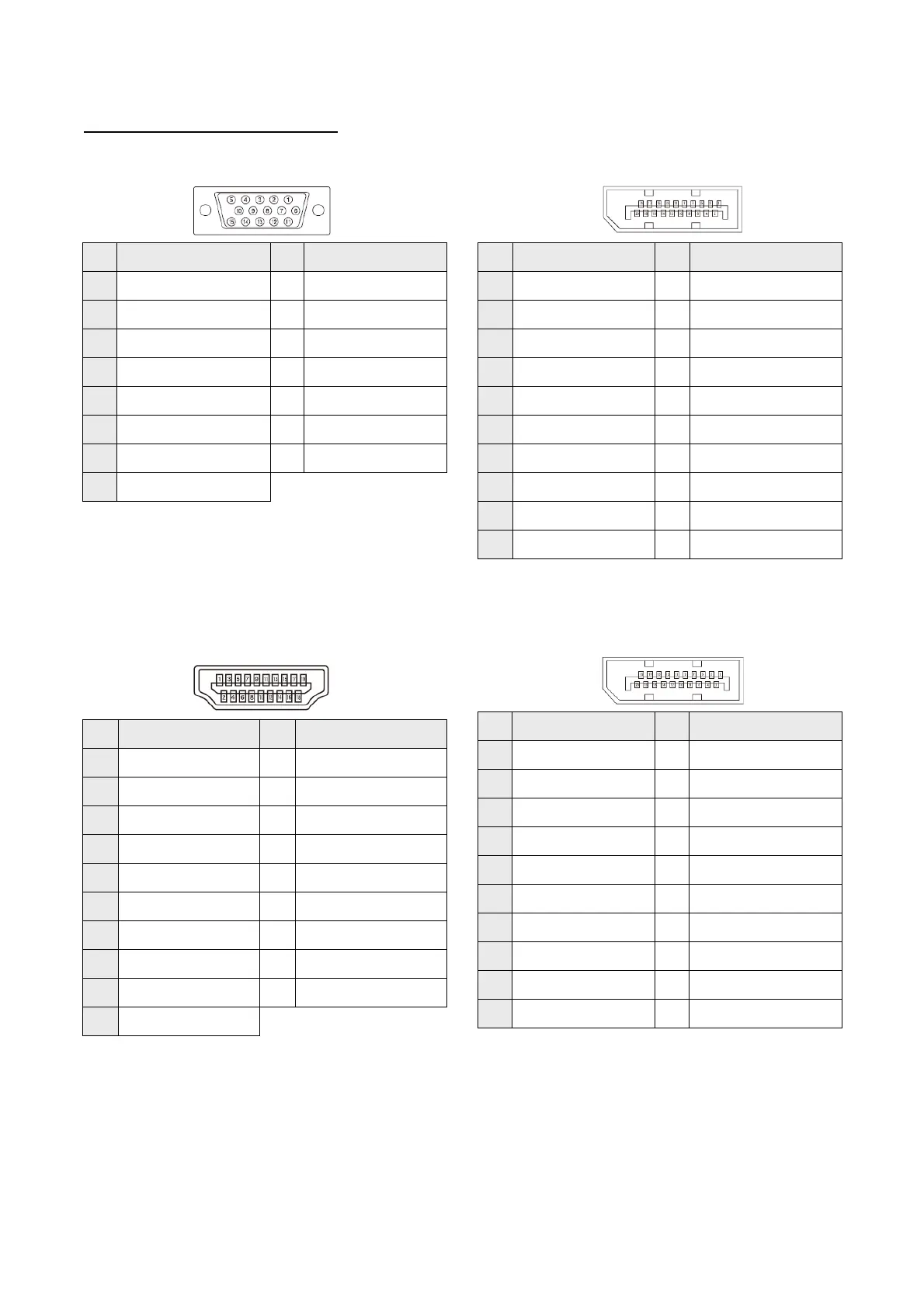

2 – 7.LAYOUT OF TERMINAL PINS
■ D-sub input terminal pins
(Mini D-sub 15 pin)
No. Function No. Function
1 Red video signal input 9 +5V
2 Green video signal input 10 GND
3 Blue video signal input 11 N.C.
4 N.C. 12 DDC data
5 GND 13 Hsync signal input
6 GND for red video signal 14 Vsync signal input
7 GND for green video signal 15 DDC clock
8 GND for blue video signal
■ HDMI input terminal pins
(HDMITM Connector)
No. Function No. Function
1 TMDS data 2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDS data 1+ 14 N.C.
5 TMDS data 1 shield 15 SCL
6 TMDS data 1- 16 SDA
7 TMDS data 0+ 17 DDC/CEC GND
8 TMDS data 0 shield 18 +5V
9 TMDS data 0- 19 Hot-plug detection
10 TMDS clock+
■ DisplayPort input terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 3- 11 Gnd
2 Gnd 12 MainLane 0+
3 MainLane 3+ 13 Gnd
4 MainLane 2- 14 Gnd
5 Gnd 15 Aux +
6 MainLane 2+ 16 Gnd
7 MainLane 1- 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 1+ 19 Gnd
10 MainLane 0- 20 3.3V
■ DisplayPort output terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 0+ 11 Gnd
2 Gnd 12 MainLane 3-
3 MainLane 0- 13 Gnd
4 MainLane 1+ 14 Gnd
5 Gnd 15 Aux +
6 MainLane 1- 16 Gnd
7 MainLane 2+ 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 2- 19 Gnd
10 MainLane 3+ 20 3.3V
