Sharp PN-80TC3 Service Manual

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 4

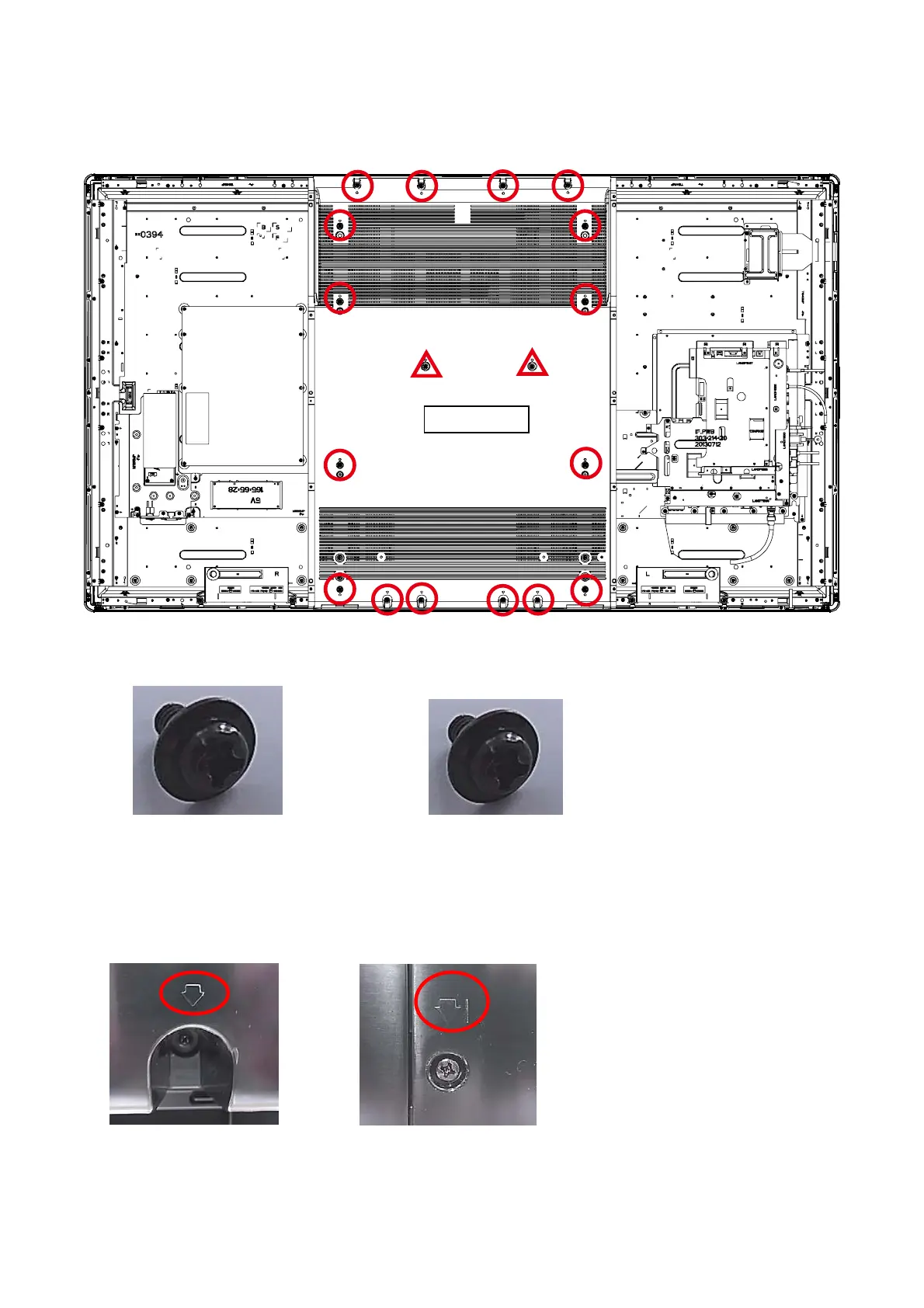

2) Remove the 16 screws O (M3x6 Cup Screw) and the two screws 󰅿(M3x8 Cup Screw) Then, remove
the Rear Cover C.
Screw O M3x6 Cup Screw Screw󰅿M4x6 Cup Screw
<MEMO>
- There are raised arrow marks on the Rear Covers. It is possible to find out where are screw O and
screw 󰅿.
[Screw O: Arrow] [Screw 󰅿: Arrow and line]
Rear cove
r
C
