PN-L803C/80TC3 OUTLINE OF THE PRODUCTS 1 - 10
3. PART NAMES AND FUNCTION
3 - 1.DISPLAY

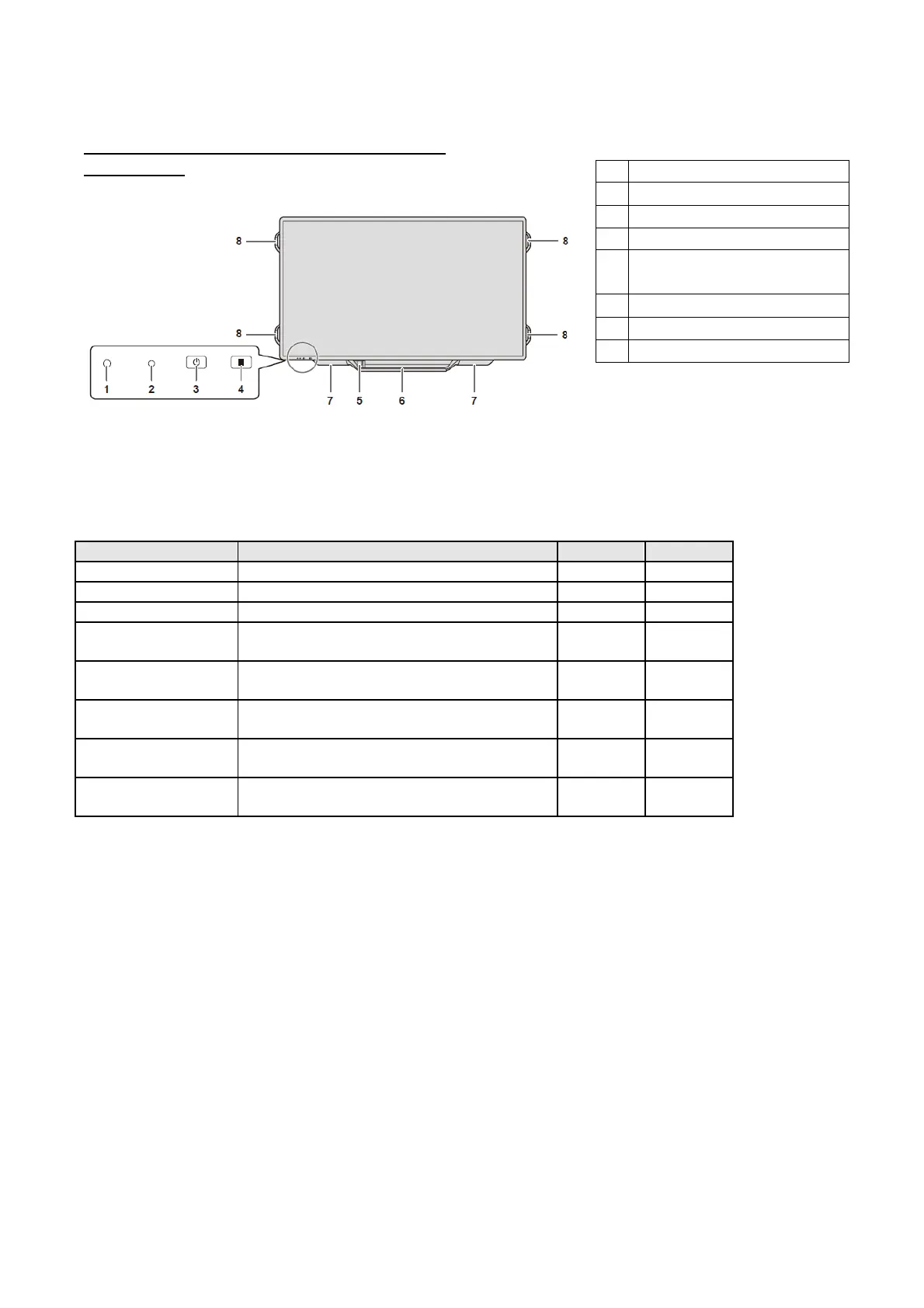

■Front view
(
State the power light is lit)
LED state Monitor state PN-L703B PN-L803C
Turn OFF Main power OFF ○ ○
Orange lights up Power standby ○ ○
Green lights up Main power ON ○ ○
Green -> Turn OFF ->
(1sec. interval)
Signal standby
○ ○
Orange -> Red ->
(1sec. interval)
Power standby (Setting the schedule)
○ ○
Green -> Turn OFF ->
(0.5sec. interval)
Power ON delay
○ ○
Red -> Turn OFF ->
(1sec. interval)
Hardware error occurs
○ ○
Red -> Green ->
(1sec. interval)
Hardware error occurs
○ ○
When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may
result in a malfunction.
1 Remote control sensor
2 Power LED
3 Power button
4 TOUCH MENU button
5 USB port (for USB device) (USB 2.0
compliant)
6Tray
7 Speakers
8 Handles2
