PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 17

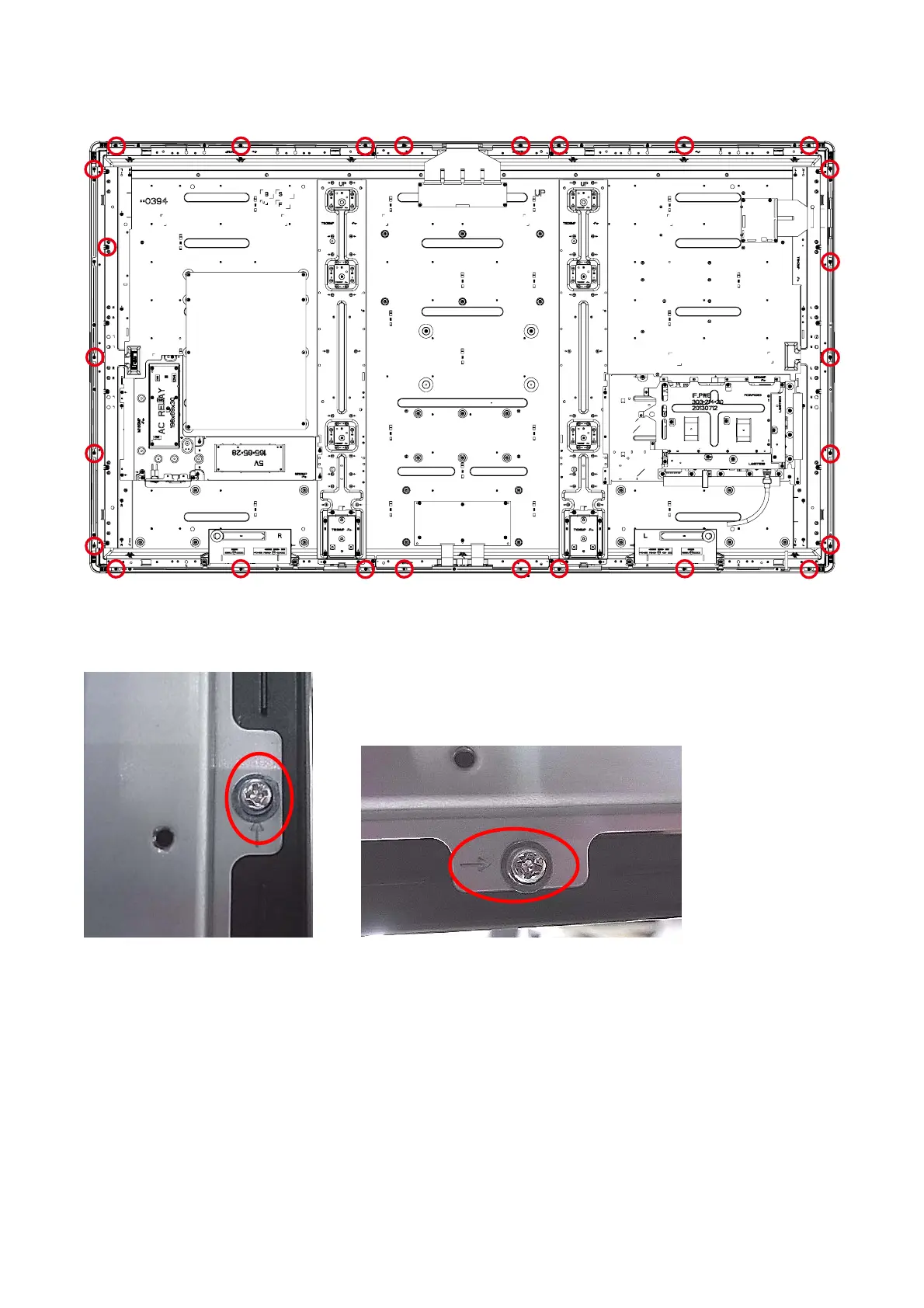

5) Remove the 26 screws (M3x6 SW+W)) fixing the Touch Panel Unit.
<MEMO>
- There are raised arrow marks on the Touch Panel Unit. It is possible to find out where are screws.
