PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 22

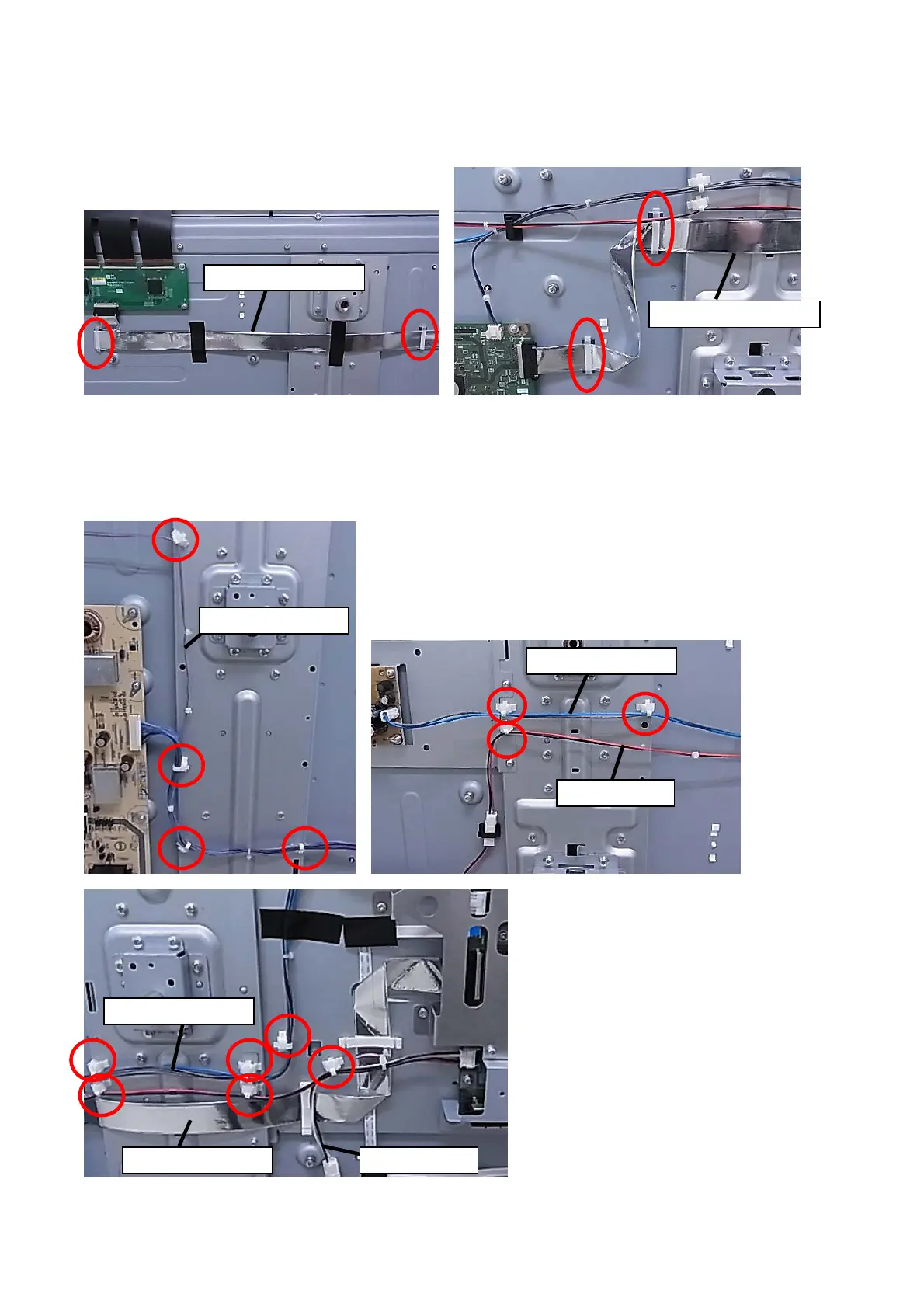

5) Open the four clamps (Transparent) and remove the AFE-DBE FFC harness and the Main-T-CON FFC
harness from them as shown in the following figure. Then, remove all clamps.
6) Remove the 13 clamps (White) fixing the Power-Main harness and the Speaker harness from the LCD
module as shown in the following figure.
AFE-DBE FFC harness
Main-
-CON FFC harness
Powe
-Main harness
Power-Main harness
Speaker harness
Powe
-Main harness
Powe
-Main harness
Speaker harness
To Next Page
