PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 24

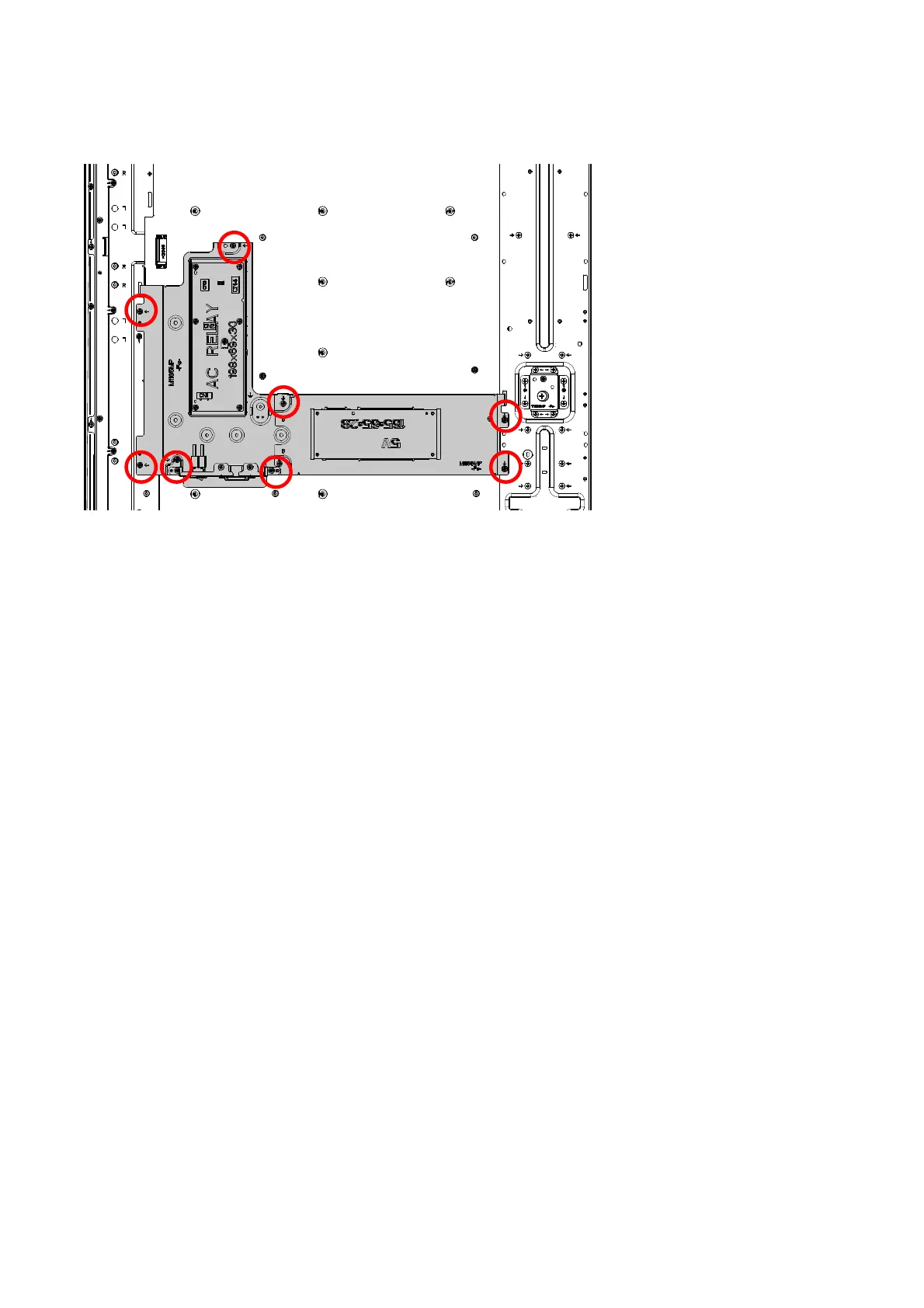

11) Remove the five screws (M3x6 SW+W) fixing the Relay 5V Power Supply PWB Unit and remove the
Relay 5V Power Supply PWB Unit.
