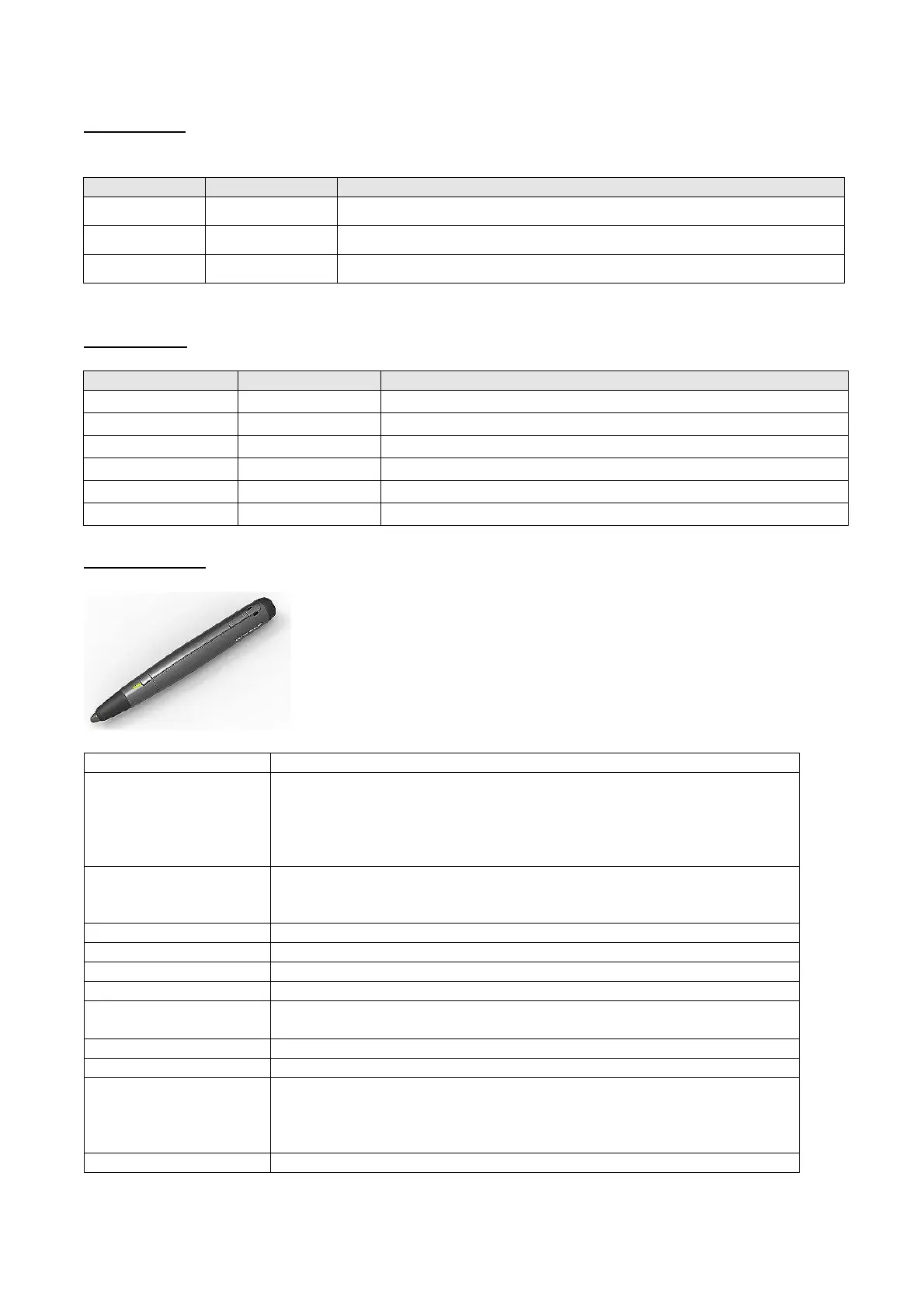

PN-L803C/80TC3 HARDWARE DESCRIPTIONS 8 - 3
1-6. AFE PWB
Main component parts and functions
IC No. Parts name Function
IC201, IC301 LR388K0 Analog front-end IC : Drive/ Sense the touch sensors
IC101 MP1495DJ-LF-Z DCDC Generate 3.3V power for the analog front-end IC.
IC102 MM3479A18P
LDO : Generate 1.8V power for the analog front-end IC.
1-7. KEY PWB
Main component parts and functions
IC No. Parts name Function
IC101 PIC16LF1704-I/ML Controls the capacitance touch key.
IC102,IC103,IC104 TS5A3157DCKR Controls the bass transfer.
Q100,Q101,Q102,Q103 2SK3019TL Controls the separation of the power.
IC100 GP1USC31XP Controls the receiving of the infrared rays.
LED101 SML-P24MUWT86 Displays the indicator.
SW100,SW101 SKRPABE010 Mechanical switches for the emergency
1-8. TOUCH PEN
Color Black & Grey
Function button -Three buttons
Function button 1 : Right mouse click
Function button 2 : PageDown
Function button 3 : PageUP
- It is possible to disable the function buttons
Pen tip -Pressure-sensitive sensor
-3.5 mm in diameter supports capacitive touch panel (conductive material) and it is
interchangeable.
Transmission method Wireless communication system (2.4GHz
、
IEEE802.15.4) Operational distance : 3m
LED -Green (Wireless status display)
Battery One, Alkaline battery AAA nickel rechargeable battery can be used.
Dimension -Length
：
150mm, long axis
：
20mm
Weight - 37g(with battery)
- 26g(without)
Wireless USB dongle - Support Wireless communication system
Other - Mark of origin, SHARP logo(No punch mark)
Driver - OS
：
Windows7(32bit/64bit), Windows8/8.1(32bit/64bit)., Windows10(32bit/64bit)
Mac OS X 10.7/10.8/10.9/10.10
- Language
：
10 languages (Japanese
、
English
、
Simplified Chinese, German, Dutch, French,
Spanish, Russian, Italian, Portuguese)
Operation mode Standard(Automatic switch)/Pen/Handwriting Digitizer
