Sharp PN-80TC3 Service Manual

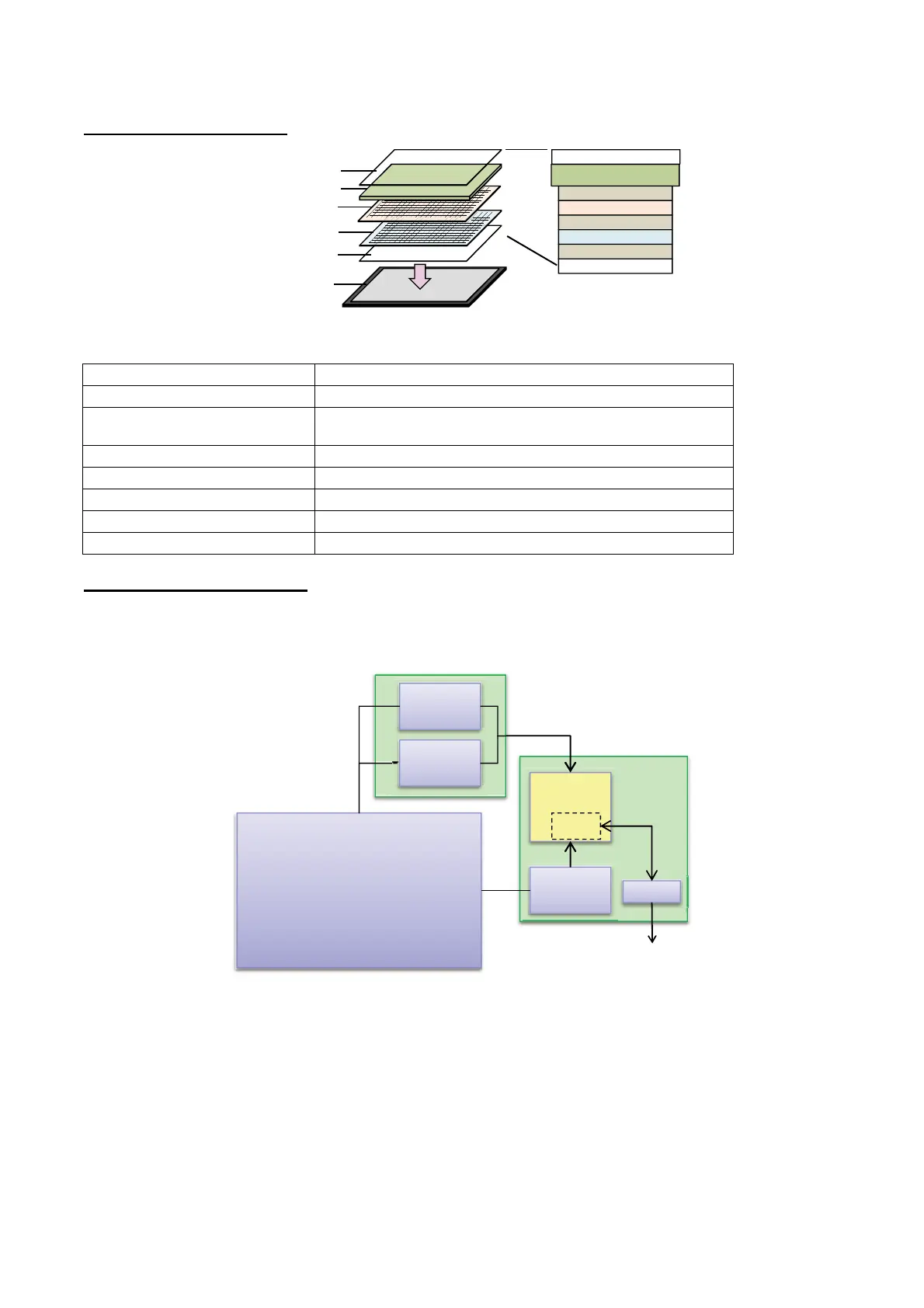

PN-L803C/80TC3 HARDWARE DESCRIPTIONS 8 - 6
2-3. Touch sensor structure
Protection glass(3.2mm)
OCA(100um)
X-PET(100um)
OCA(25um)
Y-PET(100um)
OCA(25um)
OCA: Optically Clear Adhesive
Protection glass
Sensor Sheet(X)
Sensor Sheet(Y)
Protection PET
LCD module
AG film
AG film(100um)
Protection PET(100um)
- Touch sensor specification outline
Item Specification
Sensor active area 1797.515 x 1017.849mm
Sensor film size
X
：1819.985mm x 1041.819mm
Y
：1815.665mm x 1039.819mm
Sensor pitch X:7.649mm / Y:7.653mm
Mesh size (Opposing corner) 1.74mm / 1.73mm
Number of the sensors (Y x X) 235 x 133
Sensor width/Thickness 7um / 7um
Wiring part(l / s) 30um / 70um (100um pitch)
2-4. Touch controller structure
There are two kinds of PWBs. The one is Nicola PWB(AFE PWB) for driving or sensing the long length side and the other one is Astrea
PWB(DBE PWB) for driving or sensing the short length side and controlling the signal processing of touch recognition, coordinate
transmission and so on. The communication between these two PWBs are done by LVDS. They are connected by the harness.
Touch Sensor
AFE
LR388K0
DBE
LR388K8
CPU
Micon.
AFE
LR388K0
AFE
LR388K0
Nicolaia PWB(AFE PWB)
Astraea PWB
(DBE PWB)
LVDS
AFE ： Analog Front End
DBE ： Digital Back End
FPC
FPC
USB
