PN-L803C/80TC3 HARDWARE DESCRIPTIONS 8 - 23

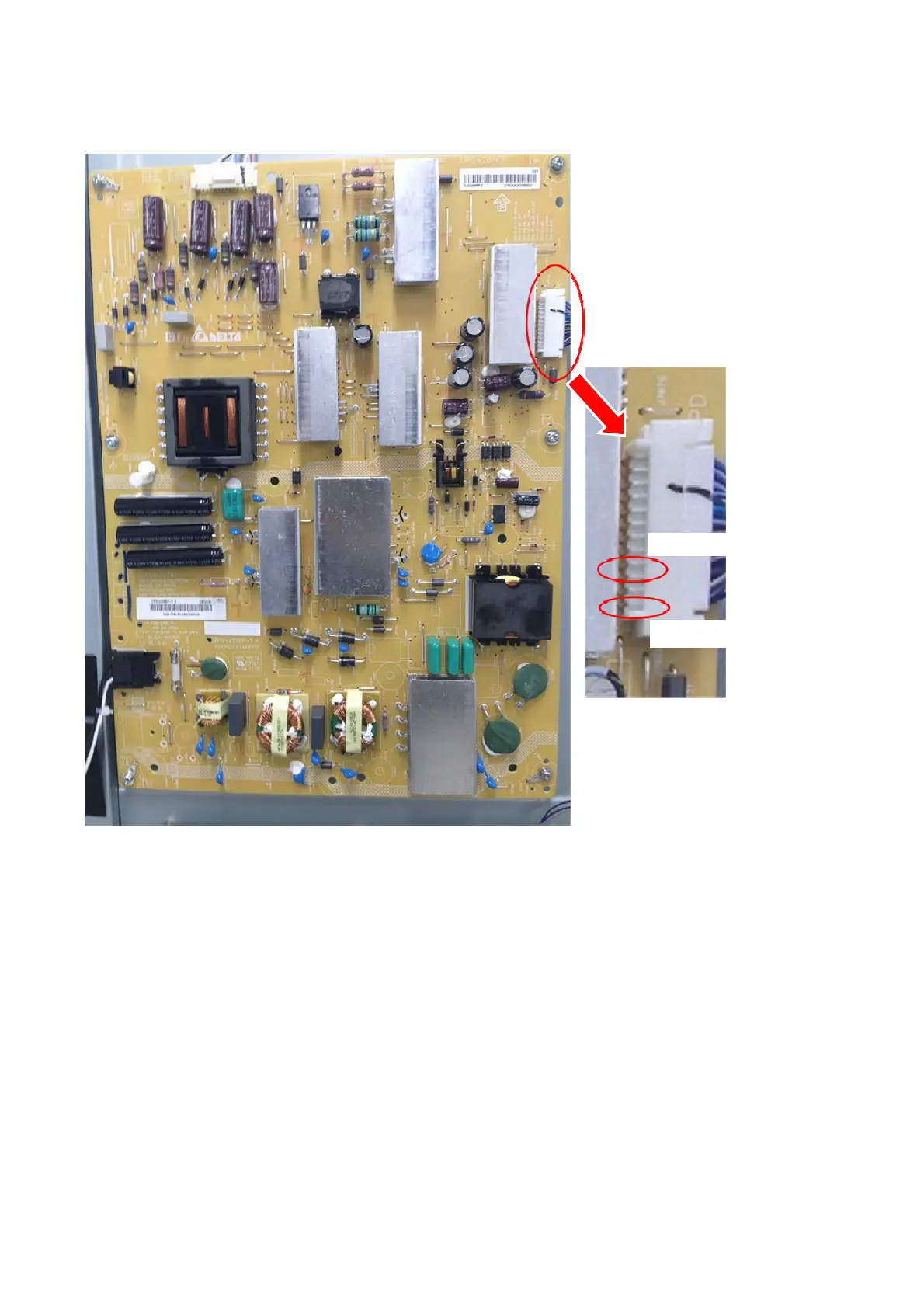

LED Power Supply PWB connector
Confirm the volta
g
e of 5 to 8 terminals for 13V.
Confirm the voltage of 1 and 2 terminals for 12V.
