PN-L803C/80TC3 SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4- 6

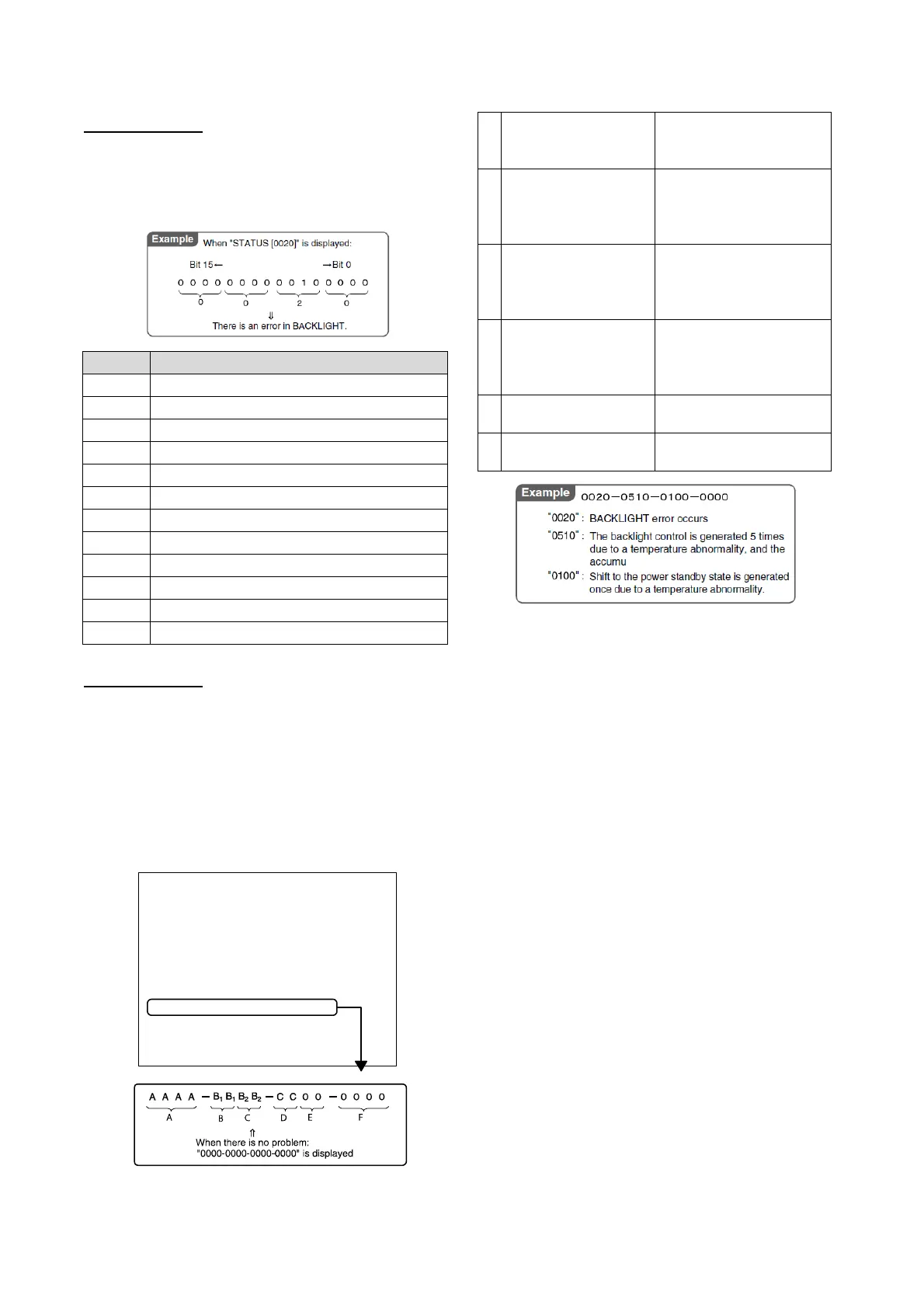

5 – 3. METHOD3
Check with the “STATUS[XXXX]” number.
1) When an error occurs, four-digit figures are displayed after the
message of “STATUS” on the left lower section of the screen.
They are assigned as follows.
Bit PN-L703A
0 SYSTEM POWER1
1 SYSTEM POWER2
2 SYSTEM POWER3
3 SYSTEM POWER4
4 SYSTEM POWER5
5 BACKLIGHT
6 TOUCH PANEL
7 - 10 Reserved
11 Low voltage abnormality
12 - 13 Reserved
14 Temperature sensor abnormality
15 Temperature abnormality
5 – 4. METHOD4
Check with the item of “STATUS” on the “Product information
(INFORMATION)” screen.
When [DISPLAY] button is pressed, the “INFORMATION” screen
is displayed.
Check with the “STATUS” item on the screen.1) When an error
occurs, four-digit figures are displayed after the message of
“STATUS” on the left lower section of the screen. They are
assigned as follows.
A
Hardware monitoring result The error detection position is
displayed with the same number
as the “METHOD 3”.
B
The number of controls of
the backlight when a
temperature abnormality
occurs
Displayed in 2 digits.
For more than 99 times, “99” is
displayed.
C
Accumulated control time of
the backlight when a
temperature abnormality
occurs
Displayed in 2 digits.
For more than 99 hours, “99” is
displayed.
D
Number of shifts to the
power standby state when a
temperature abnormality
occurs
Displayed in 2 digits.
For more than 99 times, “99” is
displayed.
E
Reserved
(Not used for this time)
F
Reserved
(Not used for this time)
It takes some time necessary for judgment of a temperature
abnormality and a hardware abnormality as shown below:
- Temperature abnormality:
Min. 2 minutes (Exceeding the threshold value 3 times
continuously in the interval of 1 minute).
- Hardware abnormality:
Min. 18 seconds (Exceeding the threshold value 4 times
continuously in the interval of 6 seconds).
Though, therefore, the threshold value is exceeded on the
“HARDWARE CHECK” screen of SERVICE MANU 2 or in the
periodic send/ test mail, “OK” may be displayed.
In addition, when “NG” judgment is made once, “NG” state is
maintained until the power is turned OFF/ON. Even if, therefore,
the target value is reduced below the threshold value, the
judgment may be “NG” with a normal value.
INFORMATION1
INPUT MODE
SIZE
COLOR MODE
BRIGHT
VOLUME
ID No.
MODEL
S/N
1920x1080 V:999Hz H:999.9kHz
STATUS XXXX-XXXX-XXXX-XXXX
TOUCH PANEL
LAN
