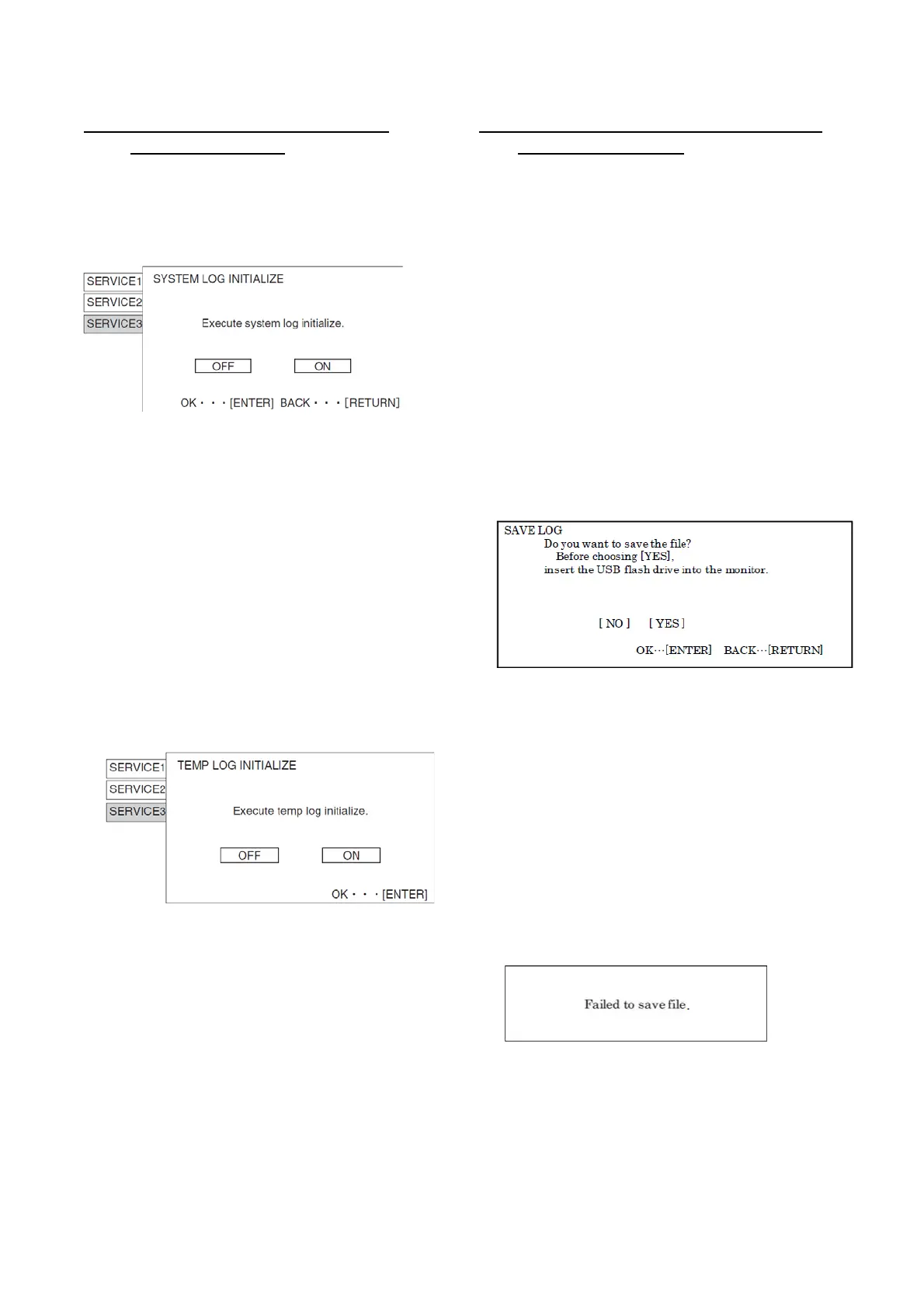

PN-L803C/80TC3 SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4- 9
6 – 5. SYSTEM LOG AND TEMPERATURE
LOG INITIALIZATION
■System log
1) Display SERVICE MENU 3.
2) Select “SYSTEM LOG INITIALIZE” by using [VOL + ()], [VOL -
(↓)] keys, and press [ENTER] key.
The screen of SYSTEM LOG INITIALIZE is displayed.
3) Press [BRIGHT + ()] key to select “ON”, and press
[ENTER] key. The initializing process starts.
If you select “OFF” and press [ENTER] or [RETURN] key,
the screen goes back to the previous one.
The cursor is placed on “SYSTEM LOG INITIALIZE”.
4) During the initializing process, the message of [INITIALIZING]
is displayed.
When the initialization has been completed, the SERVICE
MENU window is displayed.
■
Temperature log
1) Display SERVICE MENU 3.
2) Select “TEMP LOG INITIALIZE” by using [VOL + ()], [VOL -
(↓)] keys, and press [ENTER] key. The screen of TEMP LOG
INITIALIZE is displayed.
3) Press [BRIGHT + ()] key to select “ON”, and press
[ENTER] key.
The initializing process starts. When selected “OFF” and press
[ENTER] or [RETURN] key, the screen goes back to the
previous one.
6 – 6. SYSTEM LOG AND TEMPERATURE LOG
TO USB FLASH DRIVE
■USB flash drive
Use the USB flash drive corresponding to the following standard.
- Format : FAT32/FAT16 (Upper limit of the cluster size : 32KB)
- USB : 2.0/1.1
<CAUTION>
・It does not correspond to SD card reader.
・It does not correspond to USB HUB
・ Do not use the USB flash drive enciphered
・Set the proper volume label name.
・When the model name is changed right before this procedure,
turn OFF and ON the main power.
■
Save log
1) Press [ENTER] key in "Save Log" of SERVICE MENU3.
The following screen is displayed
2) Connect USB flash drive to the monitor
(As for USB, the screw stop of the lid is carried out)
3) If a cursor is united with [Yes] and press [ENTER] key,
Preservation will begin.
4) If preservation is successful, it will return to SERVICE MENU.
The file of [XXlog_(model name)_(serial number)_(time).dat] is
created by the root directory of a USB flash drive [Model name]
folder.
Display the saved file with an InfoDisp Report tool.
5) The following OSD is displayed when writing goes wrong.
Put USB flash drive again, or there is OFF-ON of power supply,
and carry out again.
6) Even if it carries out repetition implementation, when you fail,
exchange USB flash drive
