• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people.
(PN-C705B: at least 3 people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
Screws (M6)
Bracket
The monitor mounting
5/16 - 3/8 inch (8-10 mm)
• Do not use an impact driver.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
n

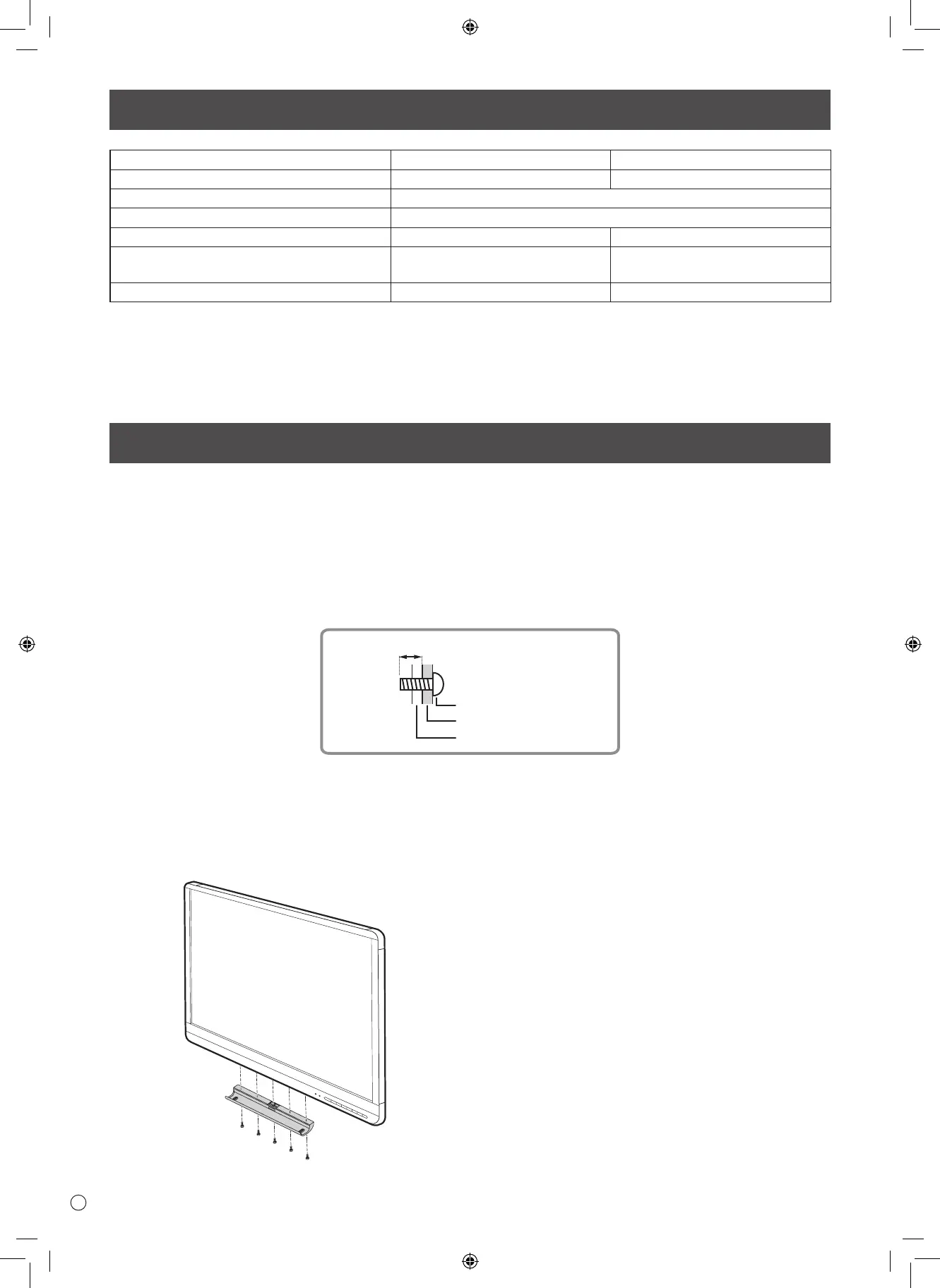

Attaching the Tray
Secure the tray using 5 tray mounting screws (M3) (supplied).
Specications
Model PN-C805B
PN-C705B
Power requirement AC 100 V - 240 V, 3.1 A, 50/60 Hz
AC 100 V - 240 V, 2.2 A, 50/60 Hz
Operating temperature 41°F to 95°F (5°C to 35°C)
Operating humidity 20% to 80% (no condensation)
Power consumption (Maximum) 270 W 200 W
Dimensions (excluding protrusions) inch (mm)
Approx. 74-1/8 (W) x 5 (D) x
44-13/16 (H) (1882 x 127 x 1139)
Approx. 64-3/8 (W) x 3-3/4 (D) x
39-5/16 (H) (1635 x 96 x 998)
Weight lbs. (kg)
Approx. 174.2 (79) Approx. 136.7 (62)
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Mounting Precautions (For SHARP dealers and service engineers)
