Sharp PN-CD701 Supplemental Information

4-3. Technical background
• Each LAN port (LAN 1, LAN 2) are separate and will have different IP addresses.
• There are no network management devices (routers or switches) inside.
• Works with different LAN settings.
PN-CD701
IoT Sensor
Internal controller
for IoT sensor
Port:1,2,4
Port:5,6
USB -> LAN
Converter
USB -> LAN
Converter
USB
Ethernet cable
LAN
IP address A
IP address B
Set with
External Source
(PC devices)
Set with
PN-CD701 GUI
Internet
Access to Azure
USB cable
USB cable
Ethernet cable
Both network are
completely separate
LAN 1
LAN 2

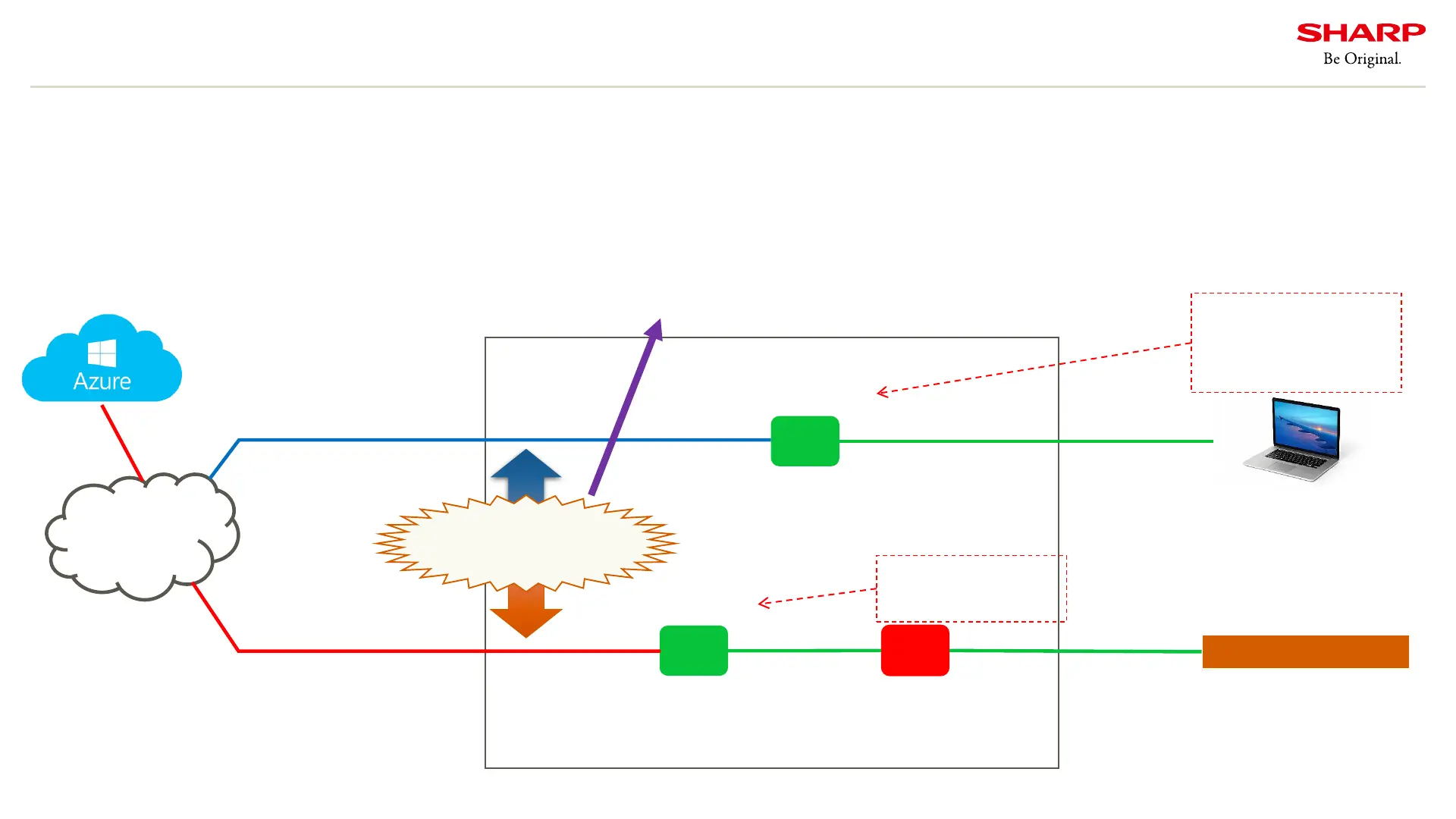

“LAN 1” is completely isolated from the internal controller of PN-CD701
So there is no security breach concerns from connected PC devices.
4-3-1. Network isolation
10

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
