CHAPTER 6. DISASSEMBLY AND ASSEMBLY

PN-K321/K322B　DISASSEMBLY AND ASSEMBLY 6 – 15

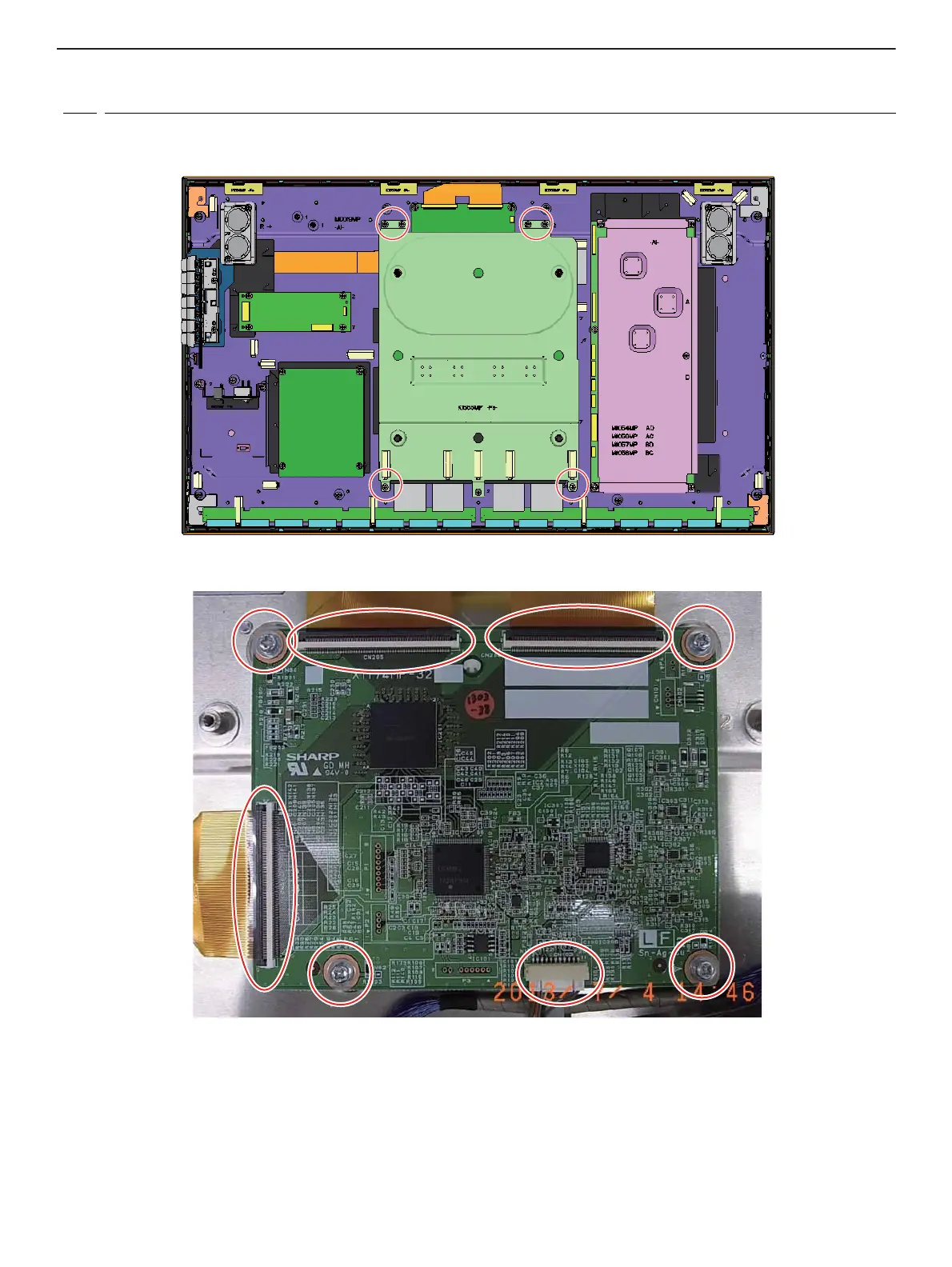

13. TOUCH PANEL CONTROL PWB PN-K322B ONLY

1 ) Remove the rear cover.

2 ) Remove six screws(M3 x 6 3W) and remove the VESA angle.

3 ) Remove the three places of the touch panel connector flexible, remove the one place the cable connector, remove four screws and remove the

touch control board.
