36
R-15AT
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Note: The parts marked "∆" may cause undue microwave exposure.
The parts marked "*" are used in voltage more than 250V.
REF. NO. PART NO. DESCRIPTION Q'TY CODE
5-14 LANGJA020WRP0 Earth angle 1 AD
5-15 PCUSUA505WRP0 Cushion 1 AC
5-16 XEBSD38P08000 Screw : 3.8mm x 8mm 4 AA
5-17 GCOVHA407WRF0 Choke cover 1 AM
5-18 HBDGCA117WREZ Door badge 1 AG
5-19 XEPSD40P25K00 Screw : 4mm x 25mm 2 AB
5-20 PCUSUA508WRP0 Cushion 1 AC
5-21 PCUSGA514WRP0 Cushion 1 AG
MISCELLANEOUS
6- 1 TINSZA101WRRZ Instruction book 1 AP
6- 2 TCAUAA249WRR0 Caution label 1 AE
6- 3 FW-VZB998WREZ Main wire harness 1 AY
6- 4 TCAUHA276WRRZ Caution sheet 1 AH
6- 5 TCAUHA168WRR0 H caution label 1 AH
6- 6 TLABMA585WRR0 Menu sticker 1 AG
SCREWS, NUTS AND WASHERS
7- 1 XHPSD40P08K00 Screw : 4mm x 8mm 5 AA
7- 2 XEPSD40P25000 Screw : 4mm x 25mm 2 AA
7- 3 XOTSD40P12RV0 Screw : 4mm x 12mm 12 AA
7- 4 LX-CZ0052WRE0 Special screw 2 AA
7- 5 LX-EZA042WRE0 Special screw 2 AB
7- 6 XBPWW40P04000 Screw : 4mm x 4mm 1 AB
7- 7 XFPSD40P08000 Screw : 4mm x 8mm 1 AA
7- 8 XHTSD40P12RV0 Screw : 4mm x 12mm 1 AA
7- 9 XHPSD30P06000 Screw : 3mm x 6mm 1 AA
7-10 XHTSD40P08RV0 Screw : 4mm x 8mm 3 AA
7-11 XOTSD40P12000 Screw : 4mm x 12mm 4 AA
7-12 XOTSE40P08000 Screw : 4mm x 8mm 1 AA
7-13 XOTWW40P10000 Screw : 4mm x 10mm 4 AA
7-14 LX-WZA035WRE0 Special washer 1 AB
7-15 XHPSD40P08000 Screw : 4mm x 8mm 4 AA

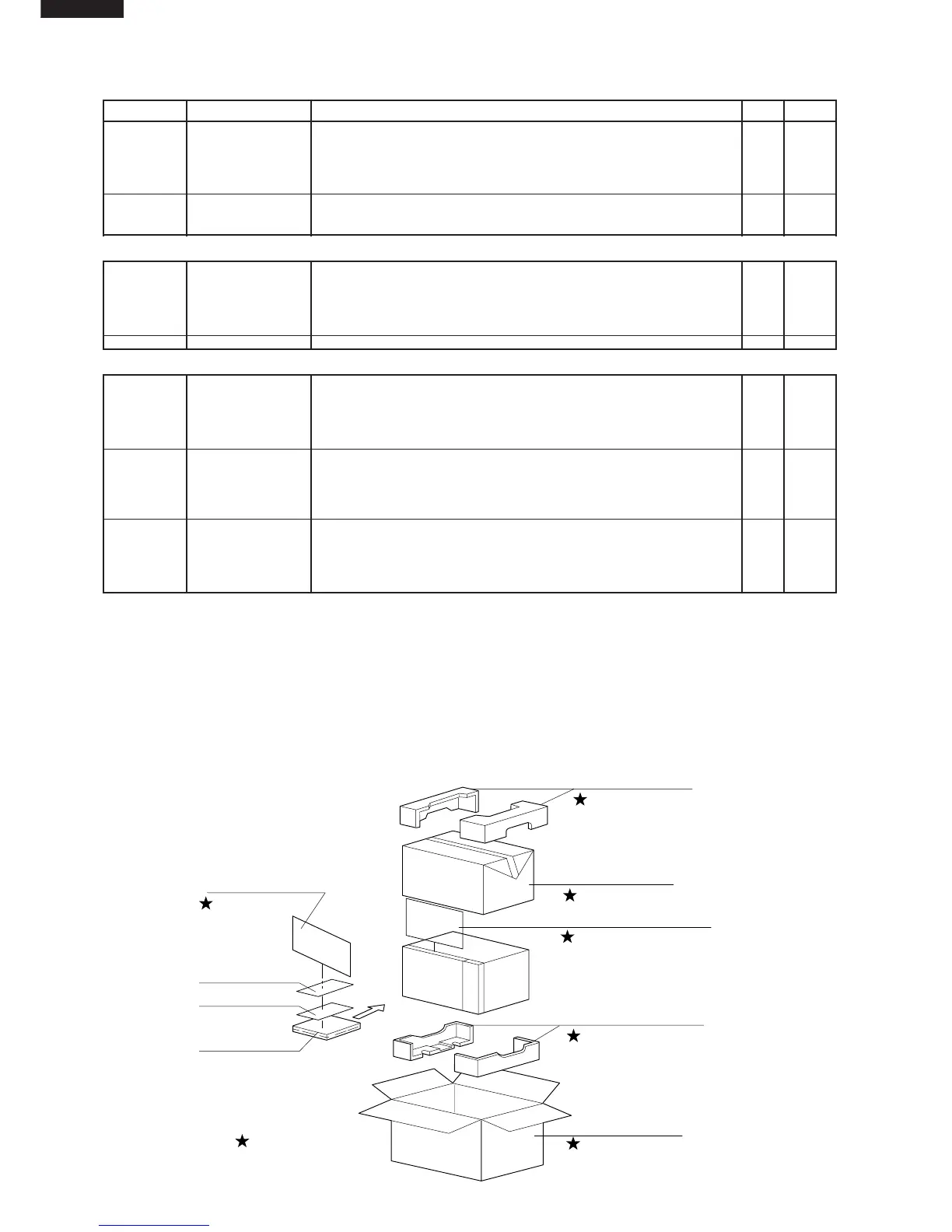

PACKING AND ACCESSORIES
INSTRUCTION BOOK
TOP PAD ASSEMBLY
(FPADBA385WRK0)
BOTTOM PAD ASSEMBLY
(FPADBA386WRK0)
WRAP COVER
(SSAKHA034WRE0)
DOOR PROTECTION SHEET
(SPADPA204WRE0)
PACKING CASE
SPAKCE008WREZ
Not Replaceable Items.
TRAY HOLDER
(SPADFA435WRE0)
Into the
Oven Cavity
MENU STICKER
CAUTION SHEET

Sharp R-15AT Specifications

General

Grill	No
Rotisserie	-
Control type	Buttons
Display type	LCD
Product type	Solo microwave
Certification	CE
Product color	Stainless steel
Microwave power	1000 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Current	16 A
Connected load	- W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	424 mm
Width	520 mm
Height	309 mm
Weight	18000 g
Interior dimensions (W x D x H)	351 x 372 x 211 mm
