Sharp R-22AT Service Manual

46
R-22AT
R-23AM
R-24AT
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Note: The parts marked "∆" may cause undue microwave exposure.
The parts marked "*" are used in voltage more than 250V.
REF. NO. PART NO. DESCRIPTION Q'TY CODE
7-12 LX-NZ0082WRE0 Special nut 1 AA
7-13 XFTSD40P12000 Screw : 4mm x 12mm 1 AA
7-14 XHPSD50P08000 Screw : 5mm x 8mm 8 AB
7-15 XBPSD50P12KS0 Screw : 5mm x 12mm 4 AA
7-16 XHTSD40P08RV0 Screw : 4mm x 8mm 17 AA
7-17 XOTSD40P12000 Screw : 4mm x 12mm 6 AA
7-18 XOTWW40P10000 Screw : 4mm x 10mm 12 AB
7-19 XJPSD40P10000 Screw : 4mm x 10mm 2 AA
7-20 XCPSD30P10000 Screw : 3mm x 10mm 3 AA
7-21 LX-WZA035WRE0 Special washer 2 AB
7-22 XOTWW40P08000 Screw : 4mm x 8mm 7 AB
7-23 PSPA-A101WRE0 Special washer 4 AB
7-24 XCPSD30P06000 Screw : 3mm x 6mm 2 AA
7-25 LX-BZA064WRE0 Special screw 1 AA
7-26 XOTSC40P12000 Screw : 4mm x 12mm 5 AA
7-27 LX-EZA042WRE0 Special screw 4 AB
7-28 XFTSD40P08000 Screw : 4mm x 8mm 1 AA
7-29 XTPSD40P08000 Screw : 4mm x 8mm 2 AA
7-30 XWWSD50-06000 Washer : 5mm x 0.6mm 4 AA
7-31 XONSC40P10000 Screw : 4mm x 10mm 1 AA
7-32 XWSSD40-10000 Washer : 4mm x 1.0mm 1 AA
7-33 XOTSD40P10RV0 Screw : 4mm x 10mm 1 AA

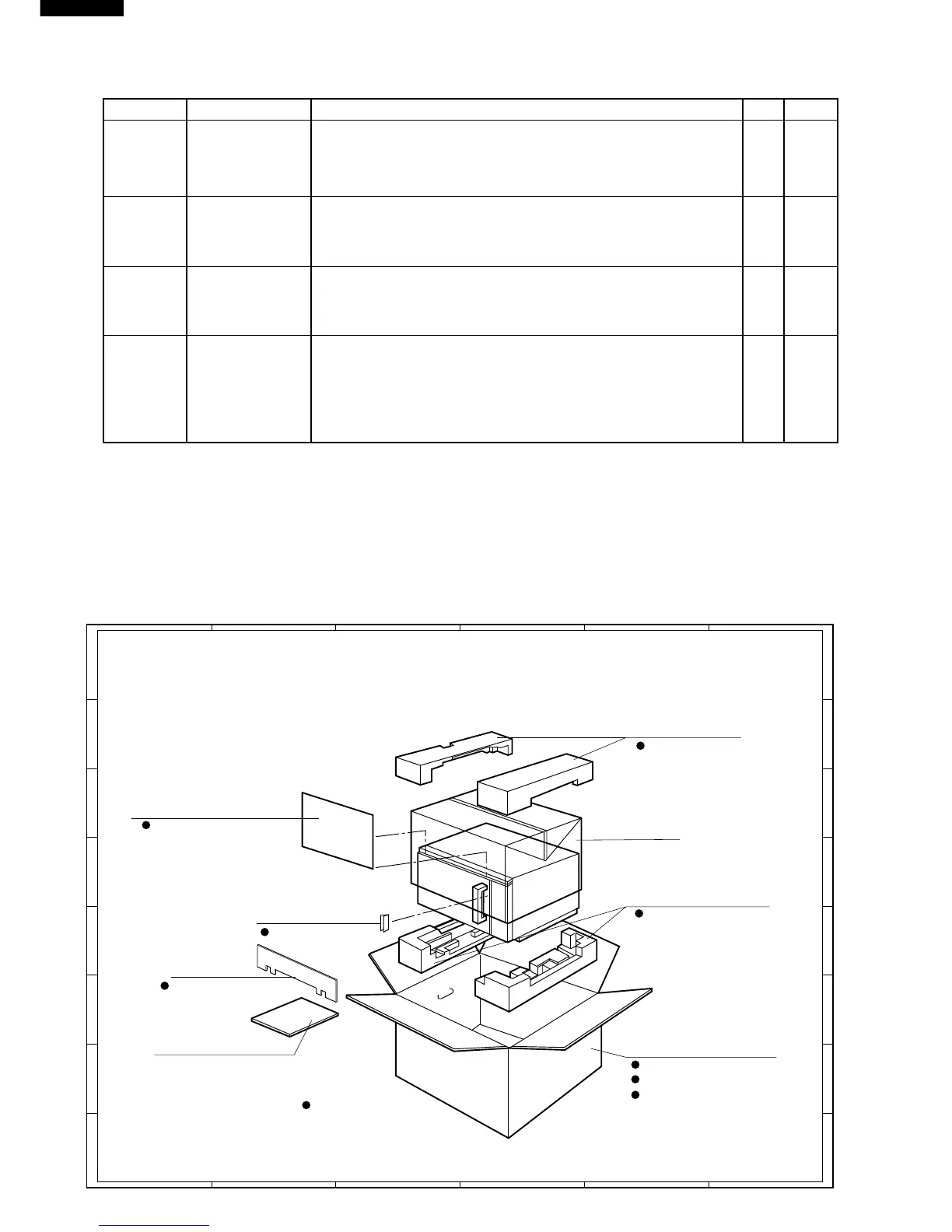

PACKING AND ACCESSORIES
6
45
1
2
3
6
45
1
2
3
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
TOP PAD ASSEMBLY
FPADBA313WRK0
WRAP COVER

DOOR PROTECTION SHEET
SPADPA552WRE0
PACKING CASE
SPAKCD317WRE0 [R-24AT]
SPAKCD320WRE0 [R-23AM]
SPAKCD321WRE0 [R-22AT]
DOOR PAD
SPADF0341WRE0
6-1 INSTRUCTION MANUAL
* Not replaceable items.
BOTTOM PAD ASSEMBLY
FPADBA314WRK0
TRAY SUPPORT
SPADPA551WRE0
