Electrical Requirements
The electrical requirements are a 115 -120 volt 60 Hz, AC only,
15 or 20 amp. fused electrical supply. It is recommended that a separate
circuit serving only this appliance be provided. When installing this
appliance, observe all applicable codes and ordinances.
A short power-supply cord is provided to reduce risks of becoming
entangled in or tripping over a longer cord.
Where a two-pronged wall-receptacle is encountered, it is the personal
responsibility and obligation of the customer to contact a qualified
electrician and have it replaced with a properly grounded three-pronged
wall receptacle or have a grounding adapter properly grounded and
polarized. If an extension cord must be used, it should be a 3-wire, 15
amp. or more cord. Do not drape over a countertop or table where it can
be pulled on by children or tripped over accidentally.
3-Pronged Plug
Grounded
Receptacle Box
Grounding Pin
3-Pronged Receptacle
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM
THIS PLUG

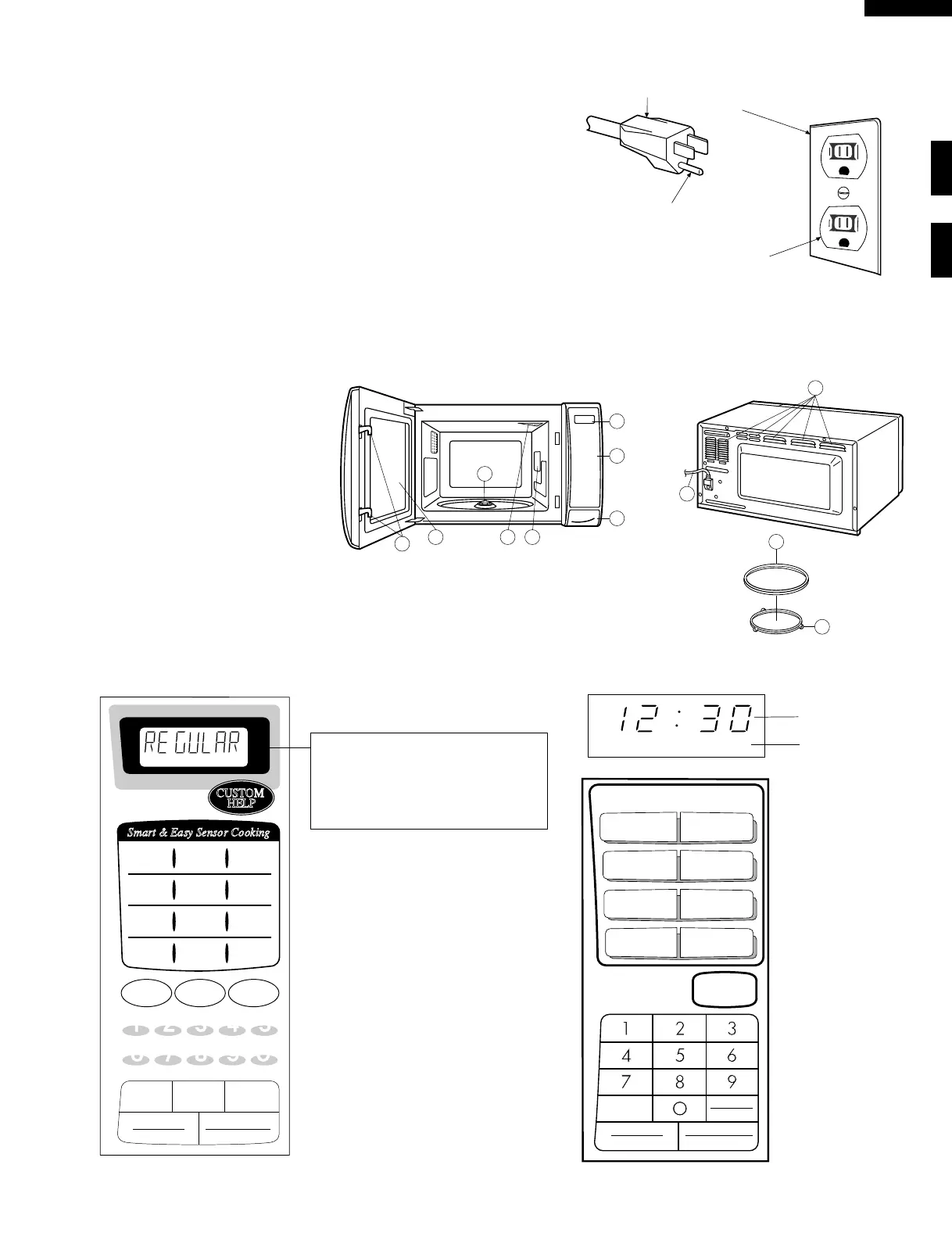

OVEN DIAGRAM
1. One touch door open button.
Push to open door.
2. Door latches.
The oven will not operate unless the
door is securely closed.
3. Removable turntable support.
4. Removable turntable.
The turntable will rotate clockwise or
counterclockwise.
5. Oven lamp.
It will light when oven is operating.
6. Oven door with see-through window.
7. Ventilation openings. (Rear)
8. Auto-Touch control panel.
9. Time display: Digital display, 99 minutes 99 seconds.
10.Coupling.
11.Wave guide cover.
12.Power supply cord
R-33AK/ R-330AW R-310AK
TOUCH CONTROL PANEL
1
11
10
56
2
8
12
9
7
Time display
Indicator
DEF. LBS. QTY.
CHECK
ON
POWER
LEVEL
TIMER
CLOCK
COMPU
DEFROST
POPCORN
DINNER
PLATE
BAKED
POTATO
FRESH
ROLL / MUFFIN
BEVERAGE
REHEAT
CASSEROLE
FRESH
VEGETABLE
FROZEN
ROLL / MUFFIN
Ground meat
Steaks / chops
Chicken pieces
1
2
3
STOP
CLEAR
START
MINUTE PLUS
To adjust quantity-touch pad again
INSTANT ACTION
FROZEN
DINNER
POPCORN
REHEAT
RICE
BAKED
POTATO
SOUP
FRESH VEG
SOFT
FRESH VEG
HARD
FROZEN
VEG
GROUND
MEAT
KITCHEN
TIMER
START
TOUCH ON
STOP
CLEAR
CLOCK
POWER
LEVEL
FISH,
SEAFOOD
HOT
DOG
Interactive
CUSTOM
HELP
Smart & Easy Sensor Cooking
COMPU
COOK
COMPU
DEFROST
MINUTE
PLUS
1 2 3 4 5
6 7 8 9 O
12345
6789O
COOK LBSSENSOR KG DEF HELP
Interactive Display:
Words will light in the display to
indicate features and cooking
instructions. Always follow the
instructions.
4
3
