2
R-310AK
R-330AK
R-330AW
RY2
a
b
c
d
HVT
AC
(COM)
VH
XH
3
3
CN - A
(J1)

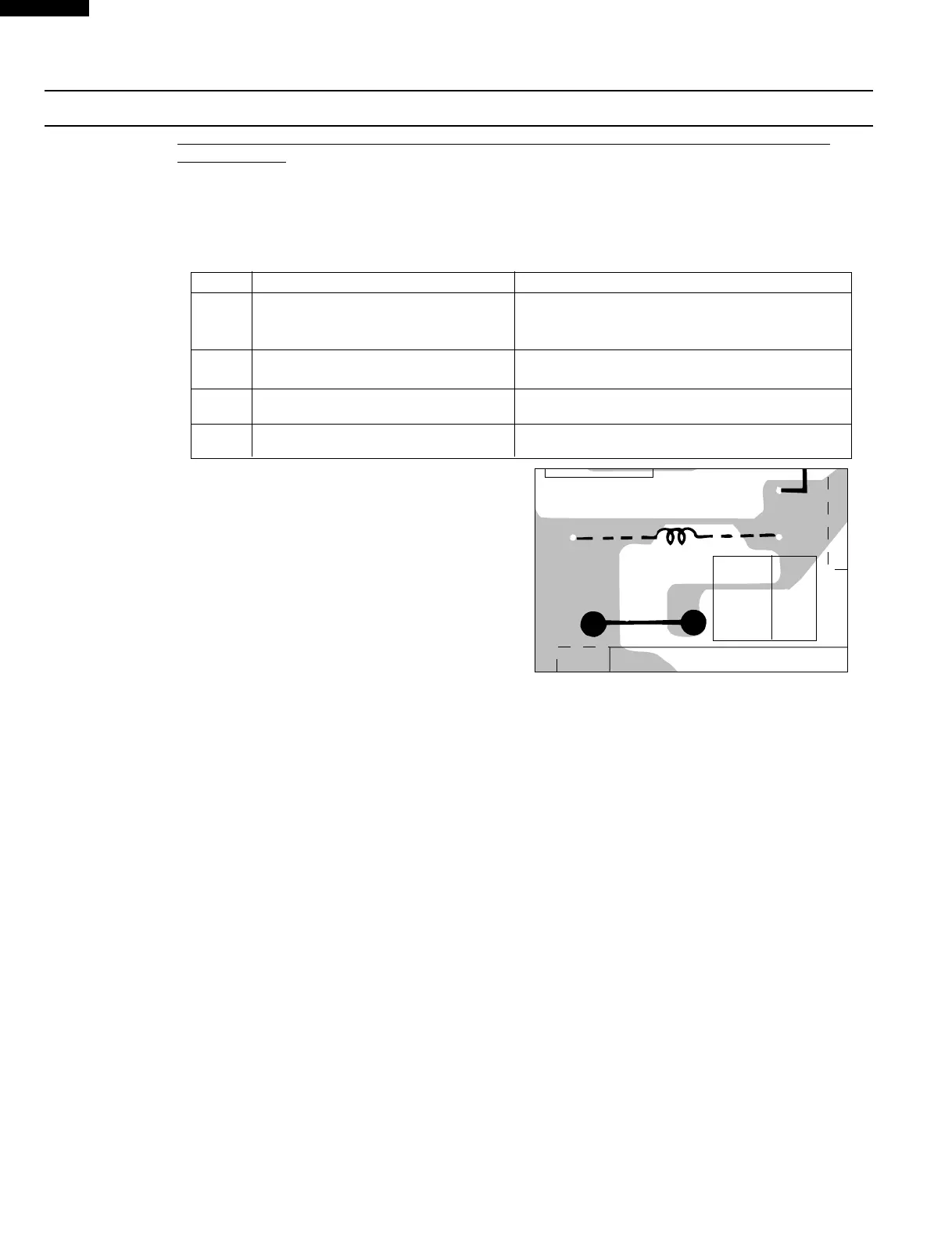

To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary on the
PWB, this foil pattern acts as a fuse. If the foil pattern is open, follow the troubleshooting guide given
below for repair.
Problem: POWER ON, indicator does not light up.
STEPS OCCURRENCE CAUSE OR CORRECTION
1 The rated AC voltage is not present between Check supply voltage and oven power cord.
Pin No. 3 of the 2-pin connector (A) and the
common terminal of the relay RY2.
2 The rated AC voltage is present at primary Low voltage transformer or secondary circuit defective.
side of low voltage transformer. Check and repair.
3 Only pattern at "a" is broken. *Insert jumper wire J1 and solder.
4 Pattern at "a" and "b" are broken. *Insert the coil RCILF2003YAZZ between "c" and "d".
NOTE: *At the time of making these repairs,
make a visual inspection of the varistor.
Check for burned damage and exam-
ine the transformer with a tester for the
presence of layer short-circuit (check
the primary coil resistance which is ap-
proximately 212Ω ± 10% (for R-330AK/
AW), 563Ω ± 10% (for R-310AK)). If
any abnormal condition is detected,
replace the defective parts.
TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST
N PROCEDURES TO BE TAKEN WHEN THE FOIL PATTERN ON THE PRINTED WIRING BOARD
(PWB) IS OPEN
To Next Page
