Sharp R-380D

R-380D
28

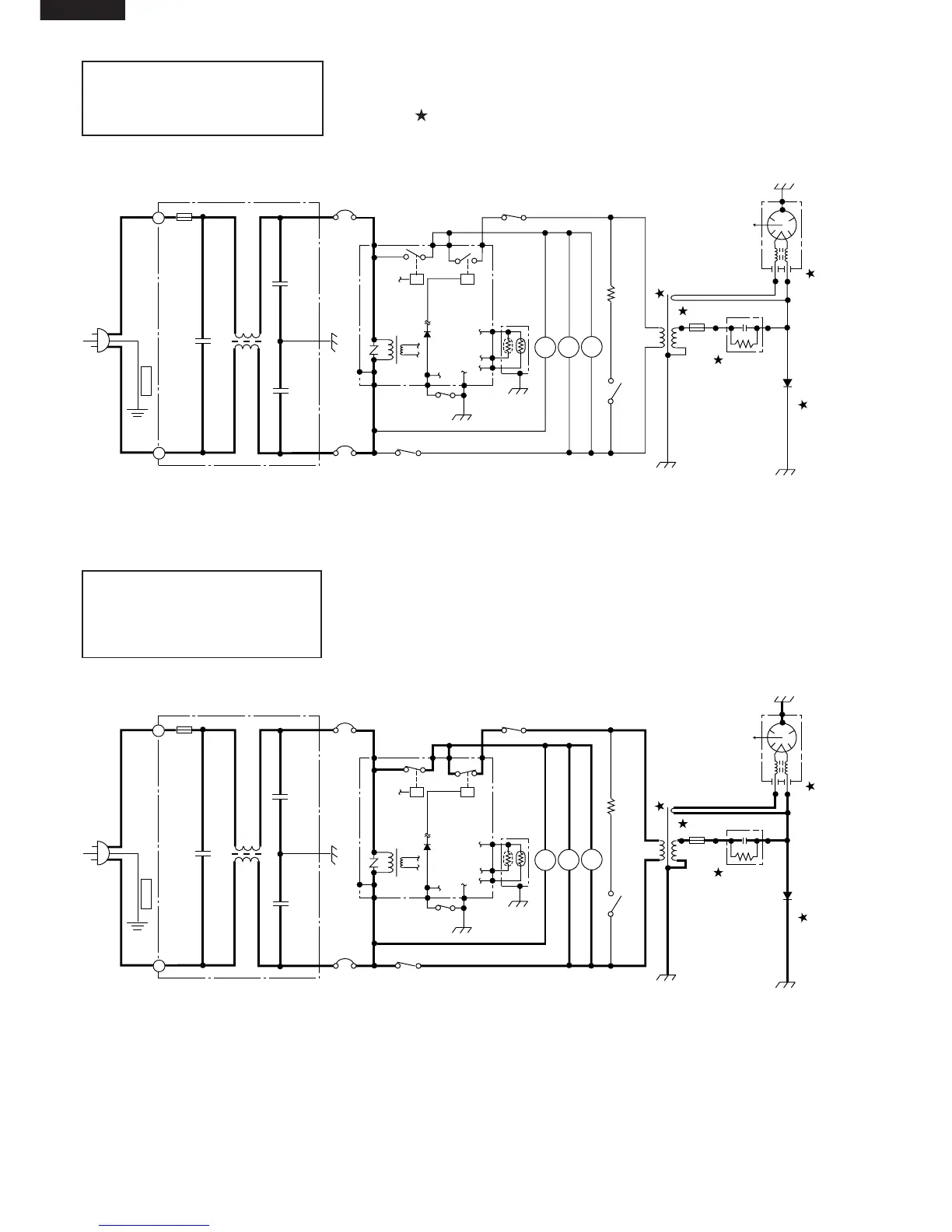

SCHEMATIC
NOTE: CONDITION OF OVEN
1.DOOR CLOSED
2.CLOCK APPEARS ON DISPLAY
NOTE: " " indicates components with potentials above 250V.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. COOKING TIME PROGRAMMED
3. START KEY TOUCHED
Figure O-2. Oven Schematic-Cooking Condition
Figure O-1. Oven Schematic-OFF Condition
POWER TRANSFORMER
MAGNETRON
H.V. RECTIFIER
H. V. FUSE
0.75A
CAPACITOR
1.07µ
AC2300V
TURNTABLE MOTOR
FAN MOTOR
OVEN LAMP
STOP
SWITCH
MONITOR SWITCH
CONTROL
UNIT
1ST. LATCH
SWITCH
B1
B2
A2
OL
FM
TTM
N.O.
COM.
RY-1
N.O.
COM.
A1
THERMAL
CUT-OUT
95˚C (MG)
THERMAL
CUT-OUT
125˚C (OVEN)
RY-2
2ND. LATCH
SWITCH
NOISE FILTER
MONITOR RESISTOR 0.8/20W
EARTH
BLU
BRN
230-240V
˜
50Hz
G-Y
FUSE
M10A
N
L
LINE CROSS CAPACITOR
0.068µ/AC250V
NOISE SUPPRESSION COIL
LINE BYPASS CAPACITOR 0.0022µ/AC250V
LINE BYPASS CAPACITOR 0.0022µ/AC250V
F1
F2
F3
AH
SENSOR
POWER TRANSFORMER
MAGNETRON
H.V. RECTIFIER
H. V. FUSE
0.75A
CAPACITOR
1.07µ
AC2300V
TURNTABLE MOTOR
FAN MOTOR
OVEN LAMP
STOP
SWITCH
MONITOR SWITCH
CONTROL
UNIT
1ST. LATCH
SWITCH
B1
B2
A2
OL
FM
TTM
N.O.
RY-1
N.O.. COM.
COM.
A1
THERMAL
CUT-OUT
95˚C (MG)
THERMAL
CUT-OUT
125˚C (OVEN)
RY-2
2ND. LATCH
SWITCH
MONITOR RESISTOR 0.8/20W
EARTH
BLU
BRN
230-240V
˜
50Hz
G-Y
FUSE
M10A
N
L
LINE CROSS CAPACITOR
0.068µ/AC250V
NOISE SUPPRESSION COIL
LINE BYPASS CAPACITOR 0.0022µ/AC250V
LINE BYPASS CAPACITOR 0.0022µ/AC250V
F1
F2
F3
AH
SENSOR
NOISE FILTER
