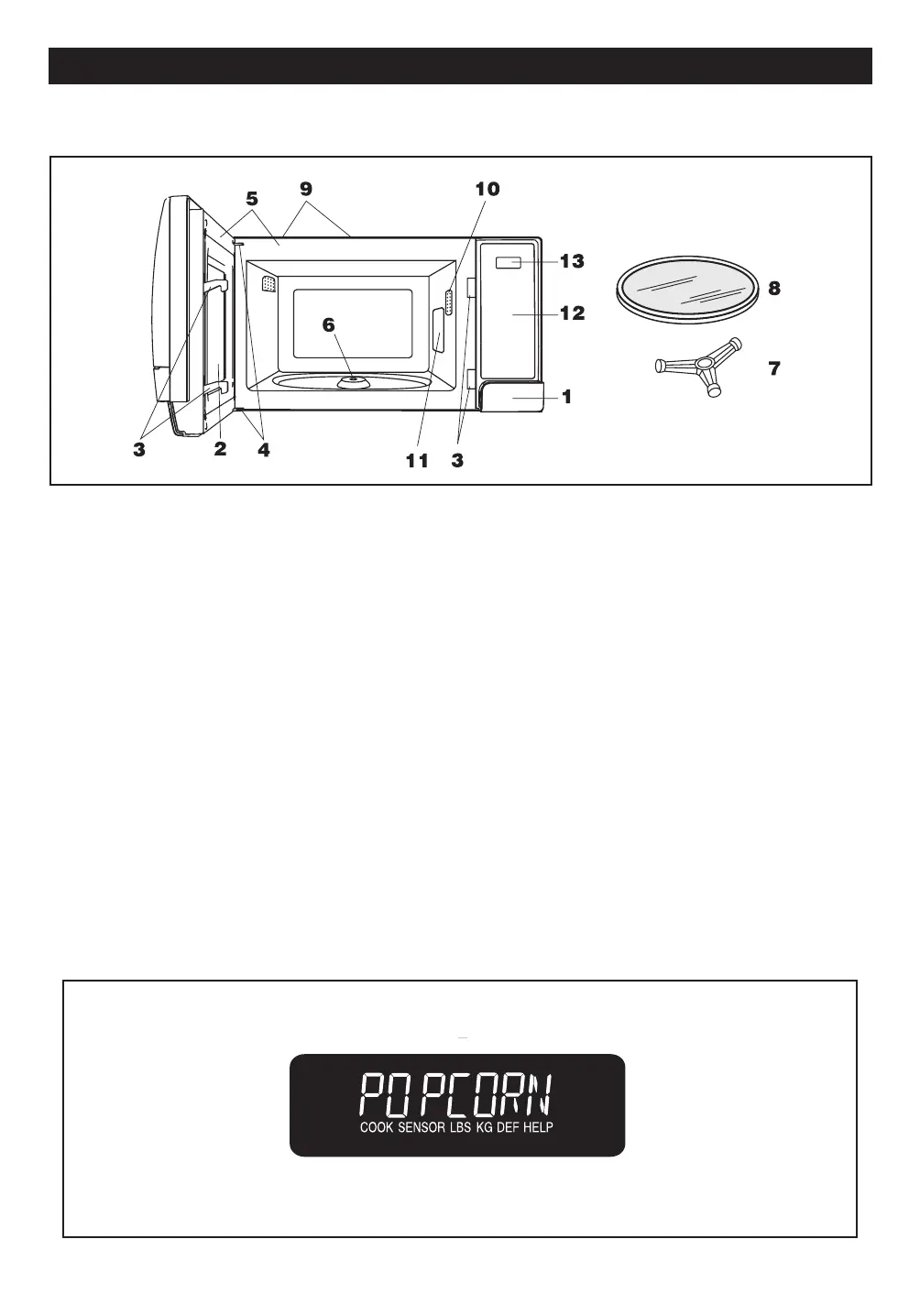

MICROWAVE OVEN PARTS
1 One touch door open button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the door is
securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in the
center of the oven fl oor.
8 Removable turntable
Place the turntable on the turntable support
securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
9 Ventilation openings (rear)
10 Oven light
It will light when oven is operating or door is
open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
INTERACTIVE DISPLAY
Words in the display will light to indicate what
function is in progress.
PART NAMES
The Interactive Display spells out operating steps and shows cooking hints. When HELP is lighted in the display,
touch the CUSTOM HELP pad to read a specifi c hint which may assist you.
