R-519CK
R-530CK
R-530CW

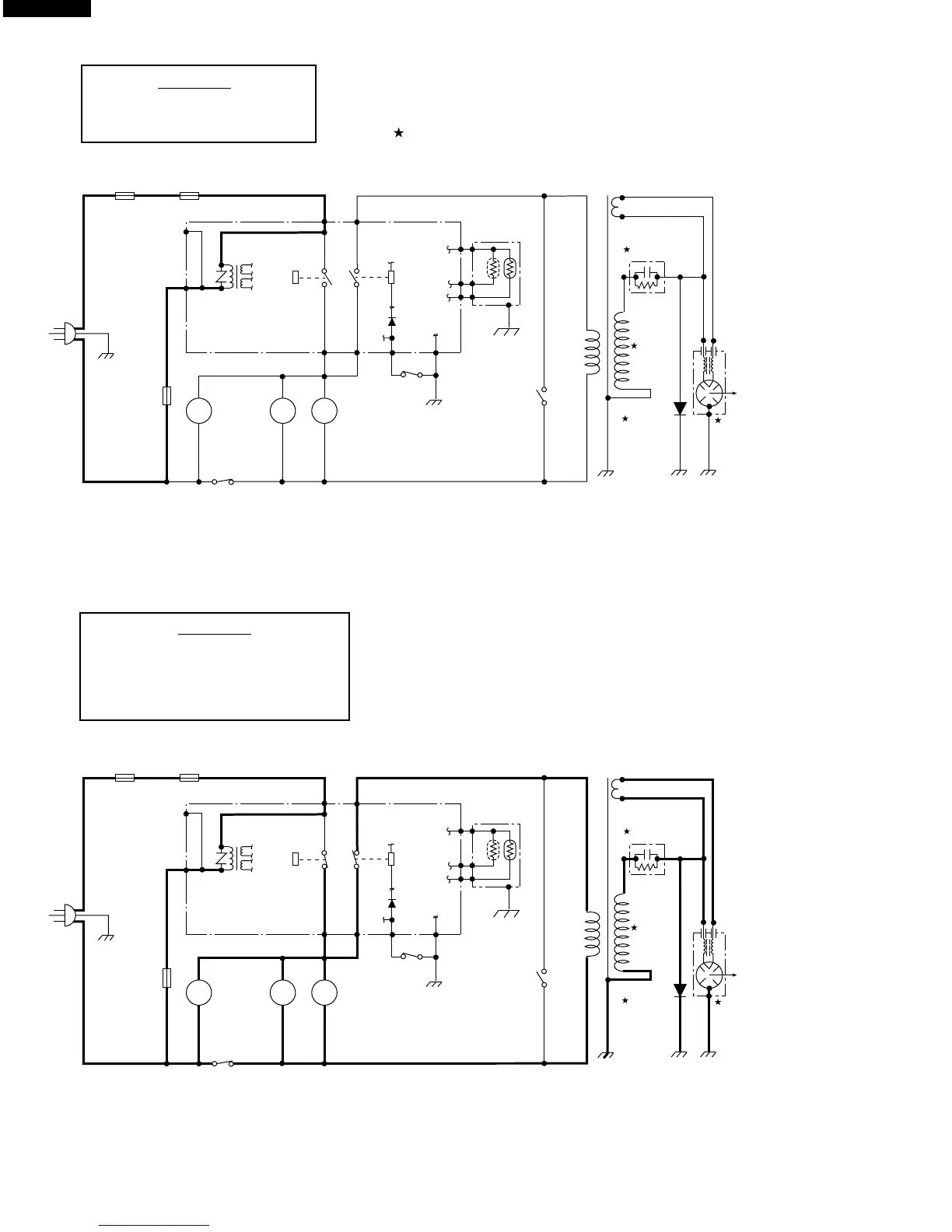

Figure O-1. Oven Schematic-Off Condition
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. CLOCK APPEARS ON DISPLAY.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. VARIABLE COOKING CONTROL "HIGH".
4. "START" PAD TOUCHED.
Figure O-2. Oven Schematic-Cooking Condition
NOTE: Indicates components with potential above 250 V.
120V AC
60 Hz
OVEN
LAMP
TURN-
TABLE
MOTOR
FAN 
MOTOR
MONITOR 
SWITCH
H.V. RECTIFIER
MAGNETRON
SECONDARY
INTERLOCK
SWITCH
TTM
OL FM
MONITOR 
FUSE 20A
CAVITY
TEMP. 
FUSE
MAGNETRON
TEMP. 
FUSE
A1
A2
COM.
COM.
COM.N.O.
N.C.
N.O.
DOOR
SENSING
SWITCH
(RY-1)
(RY-2)
CONTROL UNIT
PRIMARY
INTERLOCK
RELAY
B1 B2
GRN
POWER 
TRANSFORMER
CAPACITOR 1.0µF
AC 2300V
F3
F1
F2
AH SENSOR
120V AC
60 Hz
OVEN
LAMP
TURN-
TABLE
MOTOR
FAN 
MOTOR
MONITOR 
SWITCH
H.V. RECTIFIER
MAGNETRON
SECONDARY
INTERLOCK
SWITCH
TTM
OL FM
CAVITY
TEMP. 
FUSE
A1
A2
COM.
COM.
COM.N.O.
N.C.
N.O.
DOOR
SENSING
SWITCH
(RY-1)
(RY-2)
CONTROL UNIT
PRIMARY
INTERLOCK
RELAY
B1 B2
GRN
POWER 
TRANSFORMER
CAPACITOR 1.0µF
AC 2300V
MONITOR 
FUSE 20A
MAGNETRON
TEMP. 
FUSE
F3
F1
F2
